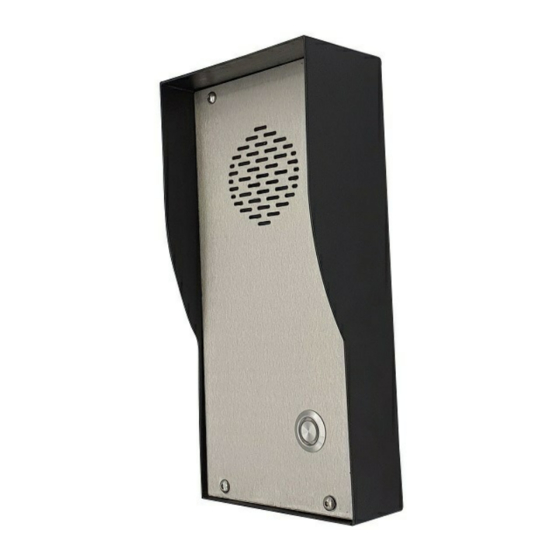

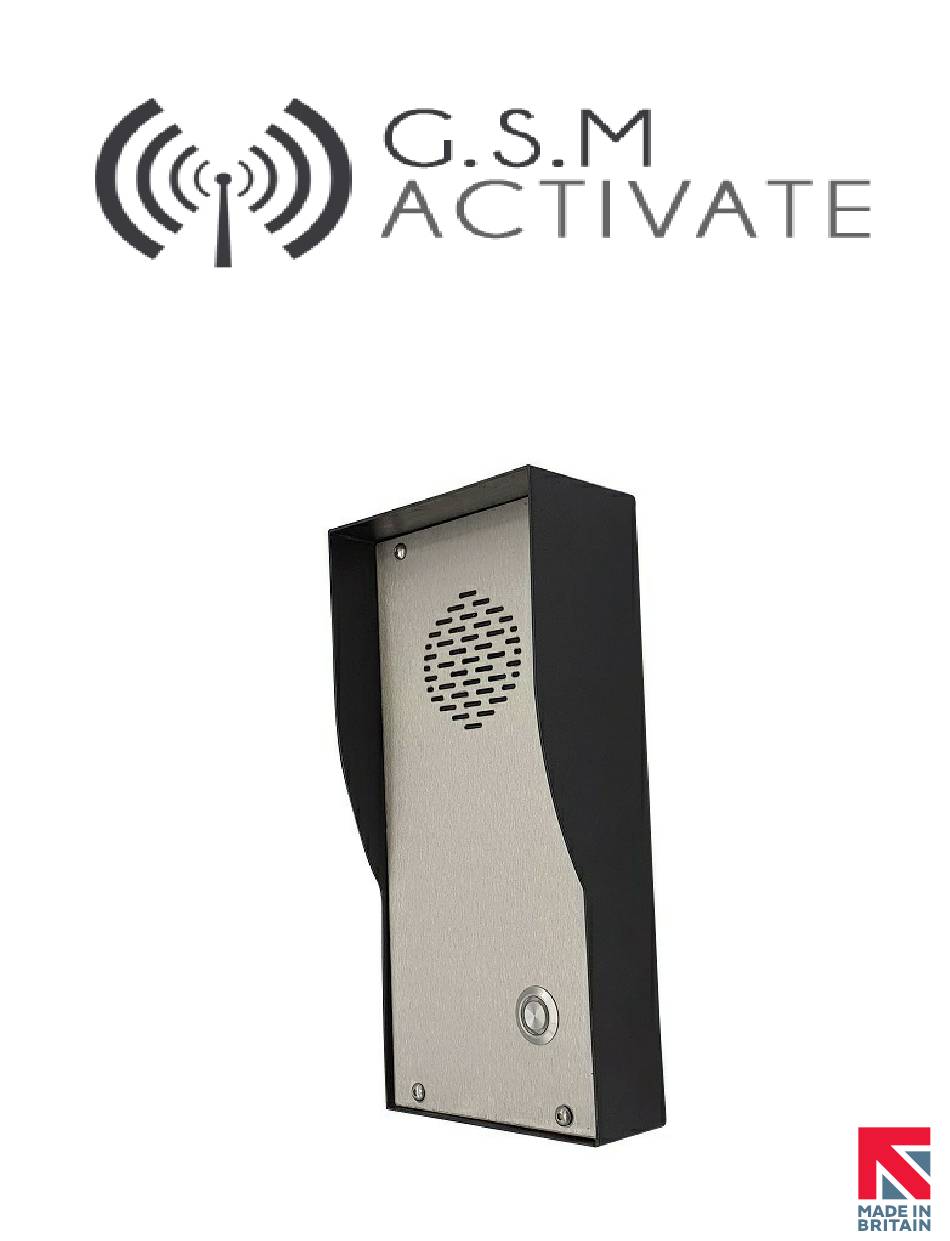

- Page 1 GSM 4G INTERCOM 1 BUTTON Page 1 MODEL NUMBER 4GINTV5...
- Page 2 Product Information The GSM 4G Gate Intercom incorporates a professional industrial grade GSM engine that receives calls at its SIM number, as any ordinary GSM phone. The system operates in the GSM module Quad-band 850/900/1800/1900/ and works on several 4G Bands. This Intercom works with both 2G and 4G Simcards.
-
Page 3: Important - Please Read
Instructions IMPORTANT - PLEASE READ Please ensure that you disconnect the power when you fit the simcard and that you place the simcard with the clipped corner facing outwards. As shown in the picture above. Signal LED (blue) blue LED flashes once per second to indicate when a signal has been found. -
Page 4: Installing Your Simcard
Installing your simcard New SIM cards will need registering before they can be used. Full details of how this is done can normally be found in the SIM card pack. It will normally require that the SIM card is inserted into a mobile phone, a number dialled and instructions followed. While the SIM is in the mobile phone it would be a good time to disable call diverts, ring back and disable features such as voicemail and text alerts. -
Page 5: Reset=Factory
Programming Intercom Call Button Entry. On the front panel there is 1 intercom call button. Pressing the relative call button will dial the primary number, followed by the divert number. To programme these numbers you will need to send a text message code which will store the number you want to use in either the primary or divert position. - Page 6 Using Intercom Call Button Entry Once the numbers have been programmed for the intercom, the call button is ready to be used. Visitors will press the call button on the intercom. This will then call the stored primary phone Number for 30 seconds. Acknowledging the call (5 on Phone keypad) When answering a call from the intercom, you must press the number 5 keypad button on your phone.
- Page 7 Programming Dial to Open Gate Entry (WHL List) (Caller ID) You can open the gate direct from a mobile phone or landline by calling the simcard number. Once you call the number the GSM Intercom will reject the call and take the command to open the gate.
- Page 8 Text Commands for Gate Entry To open the gate permanently from your phone you can send a text #OPEN# This will hold the relay 1 on. To close the gate just ring the simcard number this will reset relay 1 and the gate will close. To open relay 2 you can send the text #PED# This will pulse relay 2...
- Page 9 Important Installer Notes ● When installing the aerial antenna cable please ensure that the cable leaves the back box by the shortest route possible and is not coiled up left inside the intercom. ● Do not stick the aerial to any metal surface. This will degrade the signal strength received.
- Page 10 Dipswitch Settings 1 ON NOT USED NOT USED 1 OFF NOT USED NOT USED 2 ON NOT USED NOT USED 2 OFF NOT USED NOT USED 3 ON 4G Frequency Intercom will boot up in 4G Frequency 3 OFF 2G Frequency Intercom will boot up in 2G Frequency 4 ON NOT USED...
- Page 11 Reminder of Programming & Where to Find More Details Intercom entry numbers (call button) To add Primary #PRI=1*07713099514# To delete Primary #PRI=1*# To add Divert #DIV=1*07713099514# To delete Divert #DIV=1*# Full instructions are on page 5 Call ID (Dial to Open) (whl list) To store white list number #WHL#07713099514# To delete white list number...
-
Page 12: Quick Reference
Quick Reference For more technical support please browse the FAQ’s on our website www.gsm-activate.co.uk Alternatively email our Technical Support team at technical@gsm-activate.co.uk and we will reply or call you back within 24 hours Monday - Friday. 26/07/22 - GD Page 11...
