- Page 1 -COM CO Range www.gsm-activate.co.uk MODEL NUMBER ECOM1 Page 1...

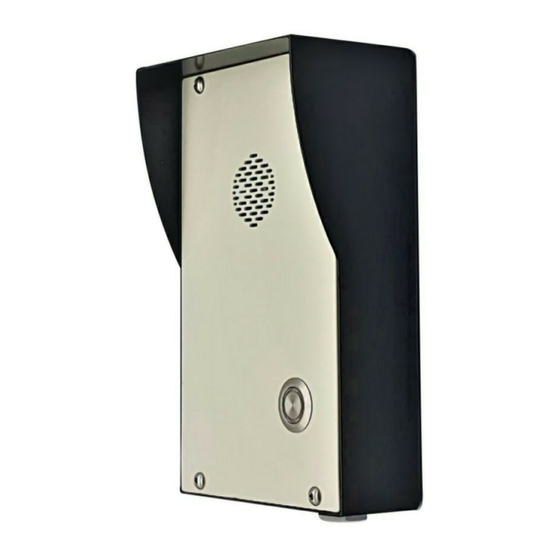

- Page 2 Product Information The e-com is a GSM Intercom that incorporates a professional industrial grade GSM engine. It receives calls at its SIM number, just as any ordinary GSM phone. The system operates in the GSM module Quad-band 850/900/1800/1900. The e-com Intercom works with most simcards on the market however, will not work in countries whereby the 2G signal has been discontinued.
-
Page 3: Important - Please Read
Instructions IMPORTANT - PLEASE READ Please ensure that you disconnect the power when you fit the simcard and that you place the simcard with the clipped corner facing outwards. As shown in the picture above. Signal LED (blue) blue LED flashes once per second to indicate when a signal has been found. -
Page 4: Installing Your Simcard
Please be advised that if the e-com will be used on a regular basis, we would recommend a contract based SIM card as pay as you go charges can be as high as 25p per call. -
Page 5: Factory Reset
Programming the -com Call Button Entry On the front panel there is one intercom call button. Pressing this call button will dial the primary and then the divert number if there is no answer from the primary number. To programme these numbers you will need to send a text message code which will store the number you want to use in either the primary or divert position. - Page 6 Using -com Call Button Entry Once the numbers have been programmed for each button, the call buttons are ready to be used. Visitors will press a call button on the intercom. This will then call the stored primary phone number. If the call is not answered it will then try the divert number. When you answer the call you can talk to your visitor at your gate/door.
- Page 7 This page relates to the unit detecting voicemail on your handheld mobile phone or landline. The e-com will detect whether you have your answer phone on or off on your phone. Please ensure that you read and follow the directions below to avoid problems with the e-com.
- Page 8 Programming Dial to Open -com (WHL List) (Caller ID) You can open the gate direct from a mobile phone or landline by calling the simcard number. Once you call the number the GSM Intercom will reject the call and take the command to open the gate.
- Page 9 Quick Programming for the -com Intercom entry numbers (call button) To add Primary #PRI=07713099514# To delete Primary #PRI=DELETE# To add Divert #DIV=07713099514# To delete Divert #DIV=DELETE# Full instructions are on page 5 Call ID (Dial to Open) (whl list) To store white list number #WHL=07713099514# To delete white list number #DEL=07713099514#...
- Page 10 ● When installing the aerial antenna cable please ensure that the cable leaves the back box by the shortest route possible and is not coiled up left inside the e-com. ● Do not stick the aerial to any metal surface. This will degrade the signal strength received.
- Page 11 Quick Reference Commands Page 11 AD 19/11/19...
