Related Manuals for G.S.M Activate V6COMKEY
Summary of Contents for G.S.M Activate V6COMKEY

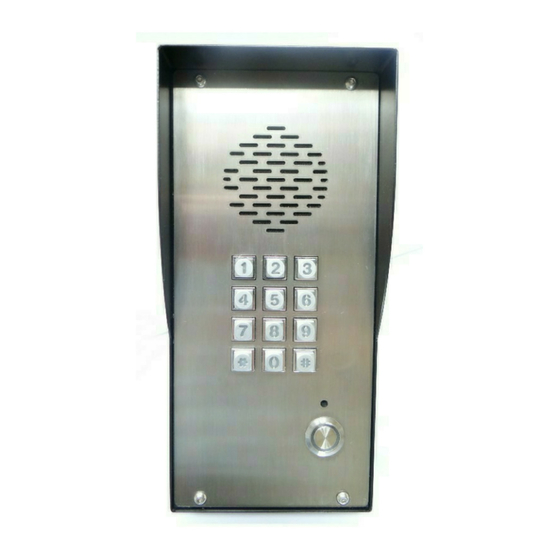

- Page 1 GSM GATE INTERCOM WITH KEYPAD Control your gate with your mobile phone www.gsm-activate.co.uk MODEL NUMBER V6COMKEY Page 1...
-
Page 2: Product Information
Product Information The GSM Gate Intercom incorporates a professional industrial grade GSM engine that receives calls at its SIM number, as any ordinary GSM phone. The system operates in the GSM module Quad-band 850/900/1800/1900Mhz. When a visitor arrives at your property they will press the call button on the intercom which will then connect to a phone number up to 3 numbers can be added which will be rung in a sequence of your choosing. - Page 3 INSTRUCTIONS IMPORTANT - PLEASE READ PLEASE MAKE SURE YOU DISCONNECT THE POWER SUPPLY WHEN YOU FIT THE SIMCARD AND YOU PLACE THE SIMCARD WITH THE CLIPPED CORNER FACING OUT WARDS PLEASE SEE PICTURE ABOVE. Volume (Voice) Adjusts the speaker on the intercom. Volume (Keypad) Adjusts the level of sound for keypad and Dial tone.
-
Page 4: Installing Your Simcard
Installing your simcard New SIM cards will need registering before they can be used. Full details of how this is done can normally be found in the SIM card pack. It will normally require that the simcard is inserted into a mobile phone, a number dialed and instructions followed. While the SIM is in the mobile phone it would be a good time to disable any PIN codes, call diverts, ring back and disable features such as voicemail and text alerts. - Page 5 Call button Intercom Entry To access the gate via GSM Intercom entry please do the following Visitors will press the call button on the intercom. This will then call the first number stored on your simcard for 13 or 20 seconds dependent on your dipswitch 1 setting. If the call is not answered it will then try the 2 number and then the 3 number.
- Page 6 Programming Dial to Open Gate Entry (Caller ID) You can open the gate direct from a mobile phone or landline by calling the simcard number. Once you call the number the GSM Intercom will reject the call but will take the command to open the gate.
-
Page 7: Voicemail Settings
Voicemail Settings Our intercom will skip to the next number if it hits an active voicemail for example, the phone is switched off and goes straight to voicemail. However if the phone rings and then your voicemail answers the intercom will treat the voicemail as a received call and will not skip to the next user. -
Page 8: Quick Programming
Quick Programming Keypad Entry #1234#_ _ _ Factory P/Word default is 1234 Caller ID (Dial to Open) #1234*01798861346#01 Max 80 Numbers To delete #1234*#01 Below is a notepad to help you remember the numbers that you have saved to your simcard in the event you need to modify or delete In the future. - Page 9 I M P O R T A N T I N S TA L L E R N O T E S When installing the aerial antenna cable please ensure that the cable leaves the back box by the shortest possible route and is not coiled up and left inside the intercom. Do not stick the aerial onto any metal surface.
-
Page 10: Dip Switch Settings
DIPSWITCH SETTINGS 1 ON Call Redirect Time The intercom calls the first number on the simcard for 13 seconds before it tries the next number on the simcard. Recommended setting for voicemail users 1 OFF Call Redirect Time The intercom calls the first number on the simcard for 20 seconds before it tries the next number on the simcard.
