G.S.M Activate 4GINT V5 Manual

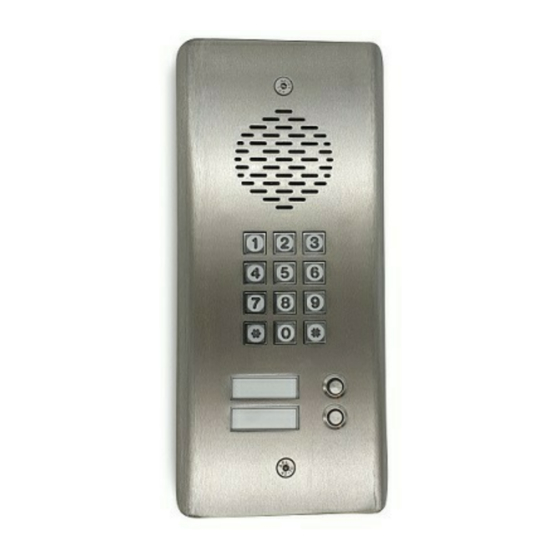

Gsm 4g intercom with keypad & 2 buttons
Hide thumbs Also See for 4GINT V5:
Table of Contents

Advertisement

Quick Links

Download this manual
GSM 4G INTERCOM
WITH KEYPAD & 2 BUTTONS
Page 1
MODEL NUMBER 4GINT V5 - 2 Buttons

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4GINT V5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for G.S.M Activate 4GINT V5

Summary of Contents for G.S.M Activate 4GINT V5

  • Page 1 GSM 4G INTERCOM WITH KEYPAD & 2 BUTTONS Page 1 MODEL NUMBER 4GINT V5 - 2 Buttons...

  • Page 2: Product Information

    Product Information The GSM 4G Gate Intercom incorporates a professional industrial grade GSM engine that receives calls at its SIM number, as any ordinary GSM phone. The system operates in the GSM module Quad-band 850/900/1800/1900/ and works on several 4G Bands. This Intercom works with both 2G and 4G Simcards.

  • Page 3: Important - Please Read

    Instructions IMPORTANT - PLEASE READ Please ensure that you disconnect the power when you fit the simcard and that you place the simcard with the clipped corner facing outwards. As shown in the picture above. Signal LED (blue) blue LED flashes once per second to indicate when a signal has been found.

  • Page 4: Installing Your Simcard

    Installing your simcard New SIM cards will need registering before they can be used. Full details of how this is done can normally be found in the SIM card pack. It will normally require that the SIM card is inserted into a mobile phone, a number dialled and instructions followed. While the SIM is in the mobile phone it would be a good time to disable call diverts, ring back and disable features such as voicemail and text alerts.

  • Page 5: Reset=Factory

    Programming Intercom Call Button Entry. On the front panel there is 2 intercom call button. Pressing the relative call button will dial the primary and divert number. To programme these numbers you will need to send a text message code which will store the number you want to use in either the primary or divert position.
  • Page 6 Using Intercom Call Button Entry Once the numbers have been programmed for the intercom, the call button is ready to be used. Visitors will press the call button on the intercom. This will then call the stored primary phone Number for 30 seconds. Acknowledging the call (5 on Phone keypad) When answering a call from the intercom, you must press the number 5 keypad button on your phone.
  • Page 7 Programming Dial to Open Gate Entry (WHL List) (Caller ID) You can open the gate direct from a mobile phone or landline by calling the simcard number. Once you call the number the GSM Intercom will reject the call and take the command to open the gate.
  • Page 8 Text Commands for Gate Entry To open the gate permanently from your phone you can send a text #OPEN# This will hold the relay 1 on To close the gate just ring the simcard number this will reset relay 1 and the gate will close. To open relay 2 you can send a text #PED# This will pulse relay 2...
  • Page 9 Program Keypad Entry You can open the gate via the keypad with a 4 digit keypad access code. (Up to 50 codes can be stored). The keypad is independent from the rest of the intercom. It does NOT need a signal or even a simcard to work.
  • Page 10 Important Installer Notes ● When installing the aerial antenna cable please ensure that the cable leaves the back box by the shortest route possible and is not coiled up left inside the intercom. ● Do not stick the aerial to any metal surface. This will degrade the signal strength received.
  • Page 11 Dipswitch Settings 1 ON KEYPAD ADMIN When switched ON you can store or delete keypad access numbers. - IF ON WILL COME ON. 1 OFF KEYPAD ADMIN When switched OFF the intercom will act as Normal. 2 ON NOT USED NOT USED 2 OFF NOT USED...
  • Page 12 Reminder of Programming & Where to Find More Details Intercom entry numbers (call button) To add Primary #PRI=1*07713099514# To delete Primary #PRI=1*# To add Divert #DIV=1*07713099514# To delete Divert #DIV=1*# Full instructions are on page 5 Call ID (Dial to Open) (whl list) To store white list number #WHL#07713099514# To delete white list number...

  • Page 13: Quick Commands

    Quick Commands For more technical support please browse the FAQ’s on our website www.gsm-activate.co.uk Alternatively email our Technical Support team at technical@gsm-activate.co.uk and we will reply or call you back within 24 hours Monday - Friday. Page 13 26/07/22 - GD...

This manual is also suitable for:

4gint v5-2
