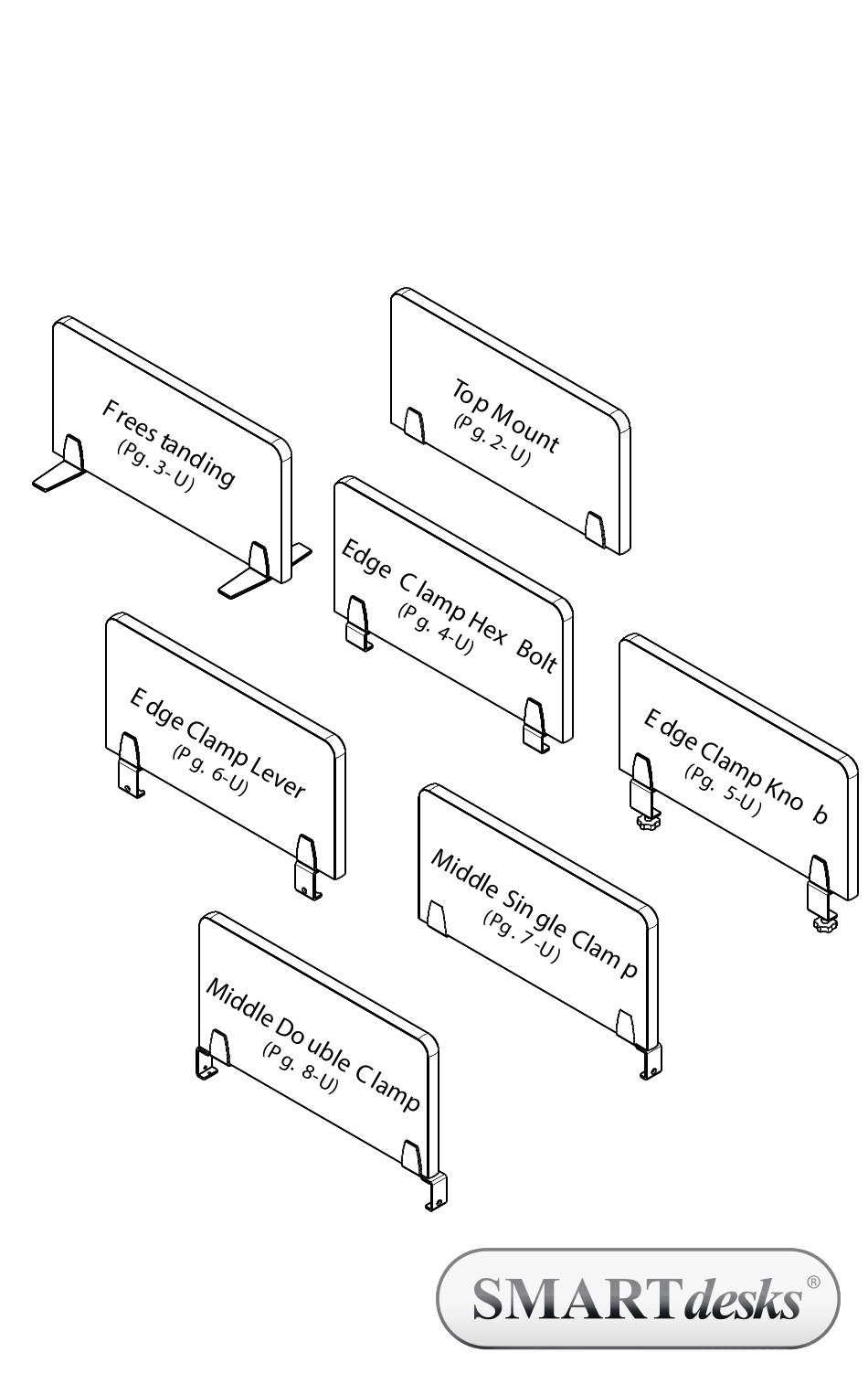

- Page 1 ASSEMBLY INSTRUCTIONS ENCLAVE DESK DIVIDER U-Series Mounting Models: FAD-EB - Edge Band FAD-MT - Metal Trim www.smartdesks.com | 800 770 7042...
- Page 2 Top Mount (UTM) No. Description Panel Screw (3/4"long) 4 or 6 U-Bracket 2 or 3 Step 1- Remove and discard the black rubber pad from the bottom of all U-Brackets (3). Step 2 - Place the U-Bracket (3) on your table in the desired location and mark the center of the holes.
- Page 3 Freestanding Foot (UFS) Qty per Qty per Units Units No. Description <60" ≥60" Wide Wide * see note Panel below Foot M4-Screw U-Bracket *Pad Step 1- Remove and discard the black rubber pad from the bottom of all U-Brackets (4). Step 2 - Attach U-Bracket (4) to the Foot (2) using the M4-Screws (3).
- Page 4 Edge Clamp - Hex Bolt (UCEH) No Description Panel Clamp-H 2 or 3 M4-Screw 4 or 6 U-Bracket 2 or 3 Hex Bolt 2 or 3 *Screw 4 or 6 * Extra Screws (6) provided for alterative Top Mounting option. Step 1- Remove and discard the black rubber pad from the bottom of all U-Brackets (4).
- Page 5 Edge Clamp - Knob (UCEK) No. Description Panel Clamp-K 2 or 3 M4-Screw 4 or 6 U-Bracket 2 or 3 Knob 2 or 3 *Screw 4 or 6 * Extra Screws (6) provided for alterative Top Mounting option. Step 1- Remove and discard the black rubber pad from the bottom of all U-Brackets (4).
- Page 6 Edge Clamp - Lever (UCEL) Description Panel Clamp-L 2 or 3 M4-Screw 4 or 6 U-Bracket 2 or 3 *Screw 4 or 6 * Extra Screws (5) provided for alterative Top Mounting option. See page 9-U for list of additional hardware. Step 1- Remove and discard the black rubber pad from the bottom of all U-Brackets (4).
- Page 7 Middle Single Clamp - Lever (UCMS) No. Description Panel Clamp-UCM U-Bracket See page 9-U for list of additional hardware. Step 1 - Attach Clamp-UCM (2) & U-Bracket (3) to the Panel (1) by pressing them into place. Step 2 - Refer to page 9-U to determine the best Clamping Options for your table.
- Page 8 Middle Double Clamp - Lever (UCMD) No. Description Panel Clamp-UCM * see note *U-Bracket 0 or 1 below * A U-Bracket (3) is only included on panels ≥54" wide. See page 9-U for list of additional hardware. Step 1 - If your Panel is less than 54"...
- Page 9 Clamping Options for Lever style mounts (UCEL, UCMS & UCMD) Description Cross Dowel 2 or 3 Lever 2 or 3 Actuating Screw 2 or 3 S-Screw 2 or 3 L-Screw 2 or 3 HEX KEY 3MM 1/ Order HEX KEY 4MM 1/ Order Option A: Option B:...
