flipIT Lift Desk®
www.smartdesks.com
800 770 7042
Verify the weight of your monitor
Models ending in THB are for monitors weighing 15-24 lbs.
Models ending in TLB for monitors weighing 5-15 lbs.
DFL-722630-T23-THB or DFL-722630-T23-TLB

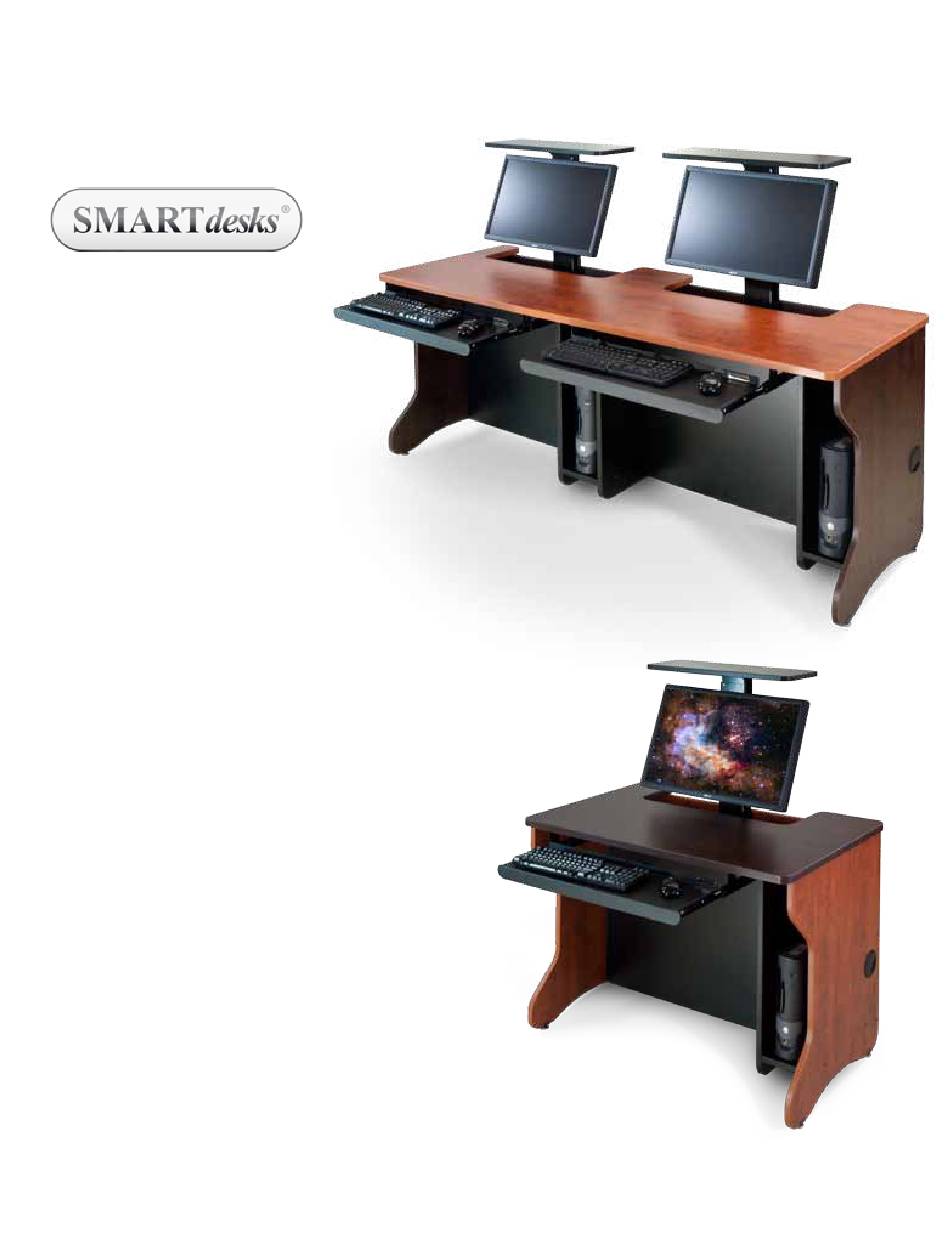

Double flipIT Lift Desk
Includes two flipIT Lift monitor supports (push open/close, holds one monitor per user, each moni-
tor 5-15 or 15-24 lbs and up to 23" wide, monitor can tilt), two 26" x 8" keyboard/mouse trays with
integrated mouse fence and wire management pass through, two CPU bays (to right of users),
80mm side access grommets; top surface finished with high-pressure laminate, base finished in
melamine, PVC edge trim (semi-rigid); design includes contoured, arched panels and radius cor-
ners; includes 1.25" steel floor leveling glides with .75" adjustment; 72" W x 26" D x 30" H.
How to assemble SMARTdesks®
flipIT Lift Desks® — Singles and Doubles.
This manual shows the approach for assembling all models by
focusing on the single with CPU bay and KB26 dual arm
keyboard tray.
Tools Required:
• Phillips #2 and #3 drive
• Torx T20 driver
• 3/8" open end wrench
SFL-402630-T23-THB or SFL-402630-T23-TLB
Single flipIT Lift Desk
Includes flipIT Lift monitor support (push open/close, holds one monitor 5-15 or 15-24 lbs
and up to 23" wide, monitor can tilt), one 26" x 8" keyboard/mouse tray with integrated mouse
fence and wire management pass through, one CPU bay to right of user, 80mm side access
grommets; top surface finished with high-pressure laminate, base finished in melamine, PVC
edge trim (semi-rigid); design includes contoured, arched panels and radius corners; includes
1.25" steel floor leveling glides with .75" adjustment; 40" W x 26" D x 30" H.
© 2015 CBT Supply Inc dba SMARTdesks® All rights reserved. SMARTdesks® and flipIT® are registered trademarks of CBT Supply, Inc.
M
B
L
y
I
n
S
T
R
U
C
T
I
o
n
S
rev12042015
Advertisement
Related Manuals for SMART desks flipIT Lift Desk DFL-722630-T23-THB
Summary of Contents for SMART desks flipIT Lift Desk DFL-722630-T23-THB
- Page 1 flipIT Lift Desk® www.smartdesks.com 800 770 7042 Verify the weight of your monitor Models ending in THB are for monitors weighing 15-24 lbs. Models ending in TLB for monitors weighing 5-15 lbs. DFL-722630-T23-THB or DFL-722630-T23-TLB Double flipIT Lift Desk Includes two flipIT Lift monitor supports (push open/close, holds one monitor per user, each moni- tor 5-15 or 15-24 lbs and up to 23”...
-
Page 2: Parts Identification
Parts Identification Monitor mount lid, with bracket and wood screws. The top includes male RV clips which are used to attach the top to the vertical sides and CPU bay panels. VeSA monitor mount and Keyboard tray pilots tilter, installs to monitor are pre-drilled. -
Page 3: Getting Started
Getting started Prepare a place for assembly on a carpeted floor and at workbench height with a furniture blanket to protect the furniture surfaces. Identify the parts and get a sense for how they fit together from the preceding page. on the back page of the manual, each model is illustrated to help you see where CPU bays are located (if they are included). - Page 4 Install the monitor lift mech Secure the fully extended mechanism to the back base panel using the pilot holes provided and #10, 5/8” pan head #3 Phillips screws with a power screw gun. This pre-assembly can be done any time prior to desk assembly.
- Page 5 Pre-install Keku clips and RV clips to left side panel Male Keku clips Left side panel with with screws Male Keku clips and Female RV clips Install left side panel to pre-installed. desktop Press RV clips into position and install Use #2 Phillips drive to tighten RV clips Male KeKu clips with wood screws as...
- Page 6 Use cam pins to assemble back and CPU bay Insert pins into cabinet holes half way, move panel into position and push the pins home. Align the arrows on the cams to point to the hole for pin insertion. Use a Phillips screw- driver to tighten cam clockwise a half turn.
- Page 7 Attach L brackets to keyboard tray and install to desktop Use self-tapping metal screws to attach L brackets using the 4th hole, or as desired. Use 8 kitted wood screws to install keyboard tray into pre-drilled pilot holes. Install the monitor enclosure panel Install Male Keku clips on the monitor enclosure panel.
- Page 8 Install lid to monitor lift Use supplied wood screws to install lid bracket to lid. Install lid assembly to the top of the monitor lift mast. Use Torx T20 driver to install lid bracket to top of mast. Torx T20 Push down lid to test function of mechanism.
- Page 9 Test the operation of the flipIT Lift The flipIT Lift is available for two ranges of monitor weight. If you have a heavy monitor on a light lift, the lift may not bring the monitor to full height without assistance. If you have a light monitor on a heavy lift, the unit may be hard to close and raise the monitor faster than desired.
- Page 10 flipIT Lift Desk® Does your model have CPU Bays? And where do they go? This assembly instruction booklet does not illustrate each model, but does show approach for assembly. Use this page as a guide for how your finished desk should look. SFL-362630-X23 SFL-362630-T23 DFL-662630-X23...
