TAO Assembly Instructions

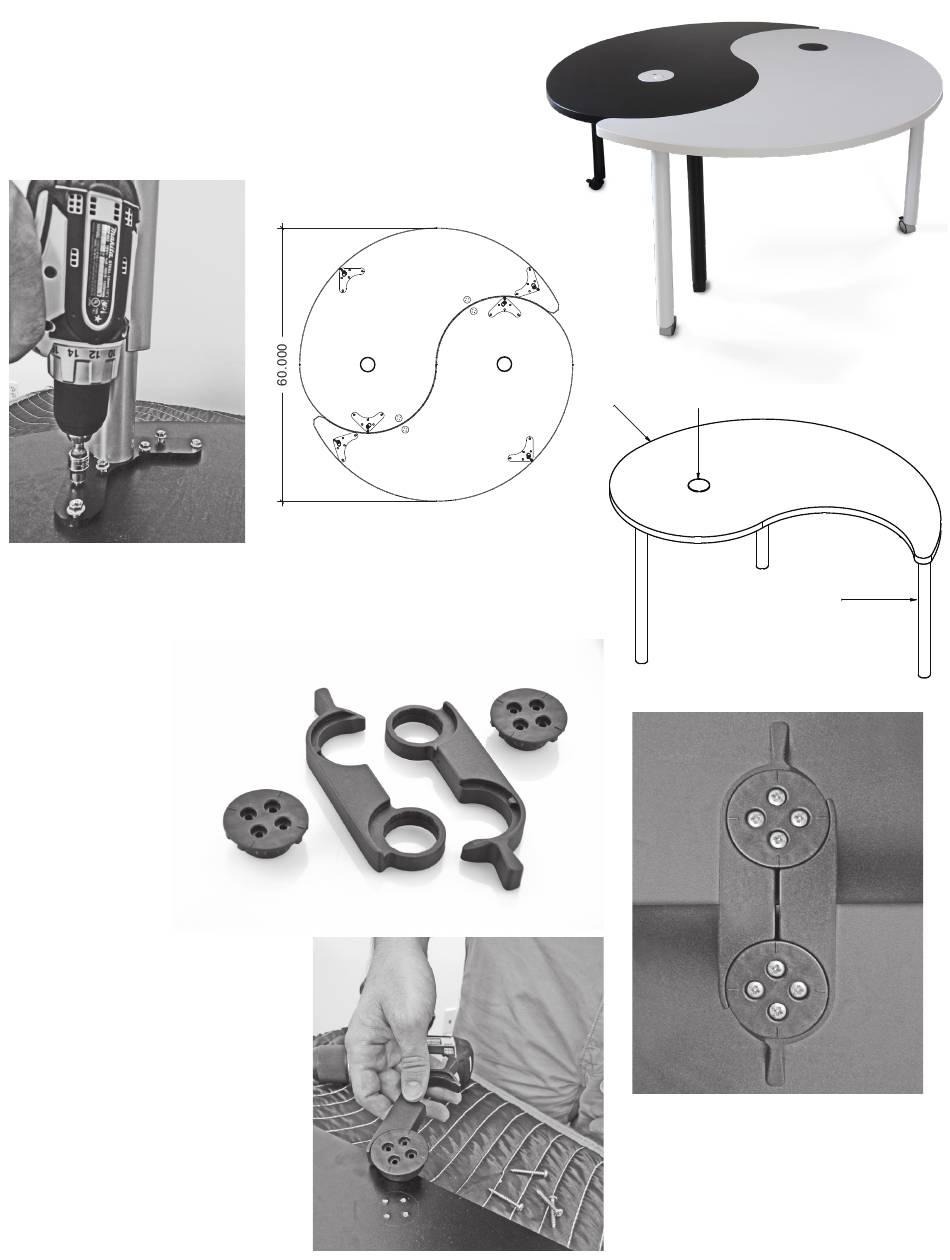

Place tops face down on a blanketed surface.
Install post legs with 1/4-20 hex head Phillips Drive
bolts into installed inserts.
Install Plako Table Connectors into the pilot holes.
Each Plako Connector consists of
2 hubs and 2 interlocking parts.
Place the hub into the closed
circle of the interlocking part,
then install the hub with 4 screws
(provided).
TTT-60-B (#2)
TTT-60-B (#1)
TAO TABLE TOP, 60", BLACK
ROUND COVE UNIT, 1 POWER - 2 USB
TUBULAR STEEL LEG, 2"Ø, & HARDWARE
The interlocks snap around the
hubs to connect the table. This is
done in 2 locations.
Unlock the table sections and
turn over to proceed.
Advertisement
Table of Contents
Related Manuals for SMART desks TAO
Summary of Contents for SMART desks TAO
- Page 1 Place tops face down on a blanketed surface. Install post legs with 1/4-20 hex head Phillips Drive bolts into installed inserts. TTT-60-B (#2) TAO TABLE TOP, 60", BLACK ROUND COVE UNIT, 1 POWER - 2 USB TTT-60-B (#1) Install Plako Table Connectors into the pilot holes.
- Page 2 TAO Assembly Instructions Install the Cove Round Power and Charging Center. Insert the Cove through the cutout. Place brackets and thumb nuts on stud. Tighten until secure. Do not over-tighten. Connect power as needed. Standard Clamp 800 770 7042 | www.smartdesks.com...
