PRACTICES
CONTENTS
1.
GENERAL ........................................................................... 1
2.
INSTALLATION ................................................................ 2
3.
CONFIGURATION ............................................................ 3
4.
TESTING ............................................................................. 5
5.
SPECIFICATIONS ............................................................. 6
6.
WARRANTY AND CUSTOMER SERVICE ................... 6
FIGURES
Figure 1. Siemens 9004 U-BR1TE II .......................................... 1
Figure 3. SW1, SW2 and SW6 Labeling .................................... 3
Figure 4. 9004 U-BR1TE II Faceplate ........................................ 5
TABLES
Table A. Faceplate LED Indicators ............................................. 3
Table C. Rotary Switch Options .................................................. 5
Table D. Specifications ................................................................ 7

1. GENERAL

This practice provides installation and maintenance
information for the 9004 U-BR1TE II L2, part number
1425.020L2, and the 9004 U-BR1TE II w/PWR L4, part
number 1425.020L4. Figure 1 is an illustration of the
9004 U-BR1TE II.
The 9004 U-BR1TE II (L2 and L4) are line cards designed
to operate with the Siemens 9004 A/B channel banks.
Both lists of the 9004 U-BR1TE II provide an ISDN U-
interface allowing transportation of Basic Rate ISDN
(2B+D) over T1 carriers. This allows ISDN service to be
extended beyond the normal servicing range (18 kft) of
an ISDN ready switch. Either list of the 9004 U-BR1TE
II may be used in the Central Office Terminal (COT)
location and in the Remote Terminal (RT) location. Each
list of the 9004 U-BR1TE II plugs into a single physical
slot but requires up to three consecutive time slots when
configured for 2B+D.
performance over the T1 facility is monitored and available
to the network.
Trademarks: Any brand names and product names included in this document are trademarks, registered trademarks, or trade names of their
61425.020L2-5A
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
MODEL ADTRAN 9004 U-BR1TE II
ISDN 2B1Q INTERFACE FOR
SIEMENS 9004 A/B CHANNEL BANKS
INSTALLATION/MAINTENANCE
Block Error Rate (BER)
Section 61425020L2-5, Issue 1
respective holders.
U B R 1T E II
14 25 02 0L 2
SW5
TE ST
LP BK CT X
SW3
6
LTX
5
NT 1
4
1
3
2
SW4
B2
B2
NM
PT RN
TE ST
*Applies to the ADTRAN 9004 U-BR1TE II w/PWR
ADTRAN P/N 1425.020L4
LP
AC T
TS T ER R
CR

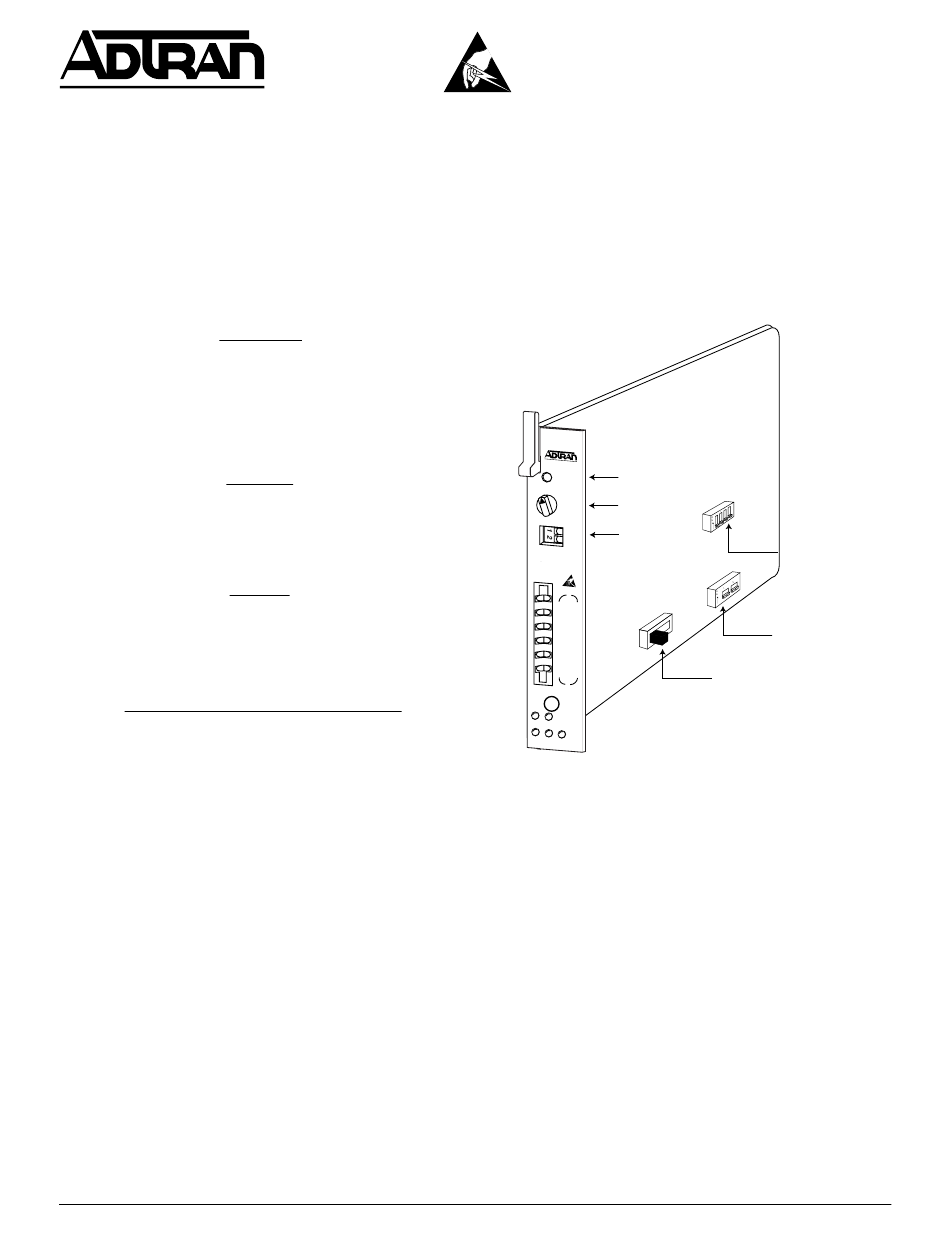

Figure 1. Siemens 9004 U-BR1TE II

The 9004 U-BR1TE II w/PWR provides an ISDN 2B1Q
U-interface that will supply 43 mA to span power an
ADTRAN ISDN U-Repeater II or U-Repeater III.
Each list of the 9004 U-BR1TE II is interchangeable with the
Siemens ISDN Basic Rate Interface Unit (BRIU), part
number 91469-01 and the ADTRAN 9004 U-BR1TE L1.
Features of the 9004 U-BR1TE II (L2 and L4) include:
ISDN 2B1Q interface meets all Layer 1
requirements as specified in ANSI T1.601-1992.
Transports ISDN Basic Rate 2B+D information
over T1 facilities in the 3-DS0 format per
TR-NWT-000397.
18 kft nominal range on mixed gauge wire (42 dB @
40 kHz loop loss, 1300 Ω DC resistance).
Respond to all Layer 1 maintenance functions.
Performance monitoring of the Layer 1 facility
as specified in TR-NWT-000397.
Section 61425020L2-5
Issue 1, November 1997
SW1
SW2
SW6*
1
