ADTRAN RJ-48C Installation Instructions

®

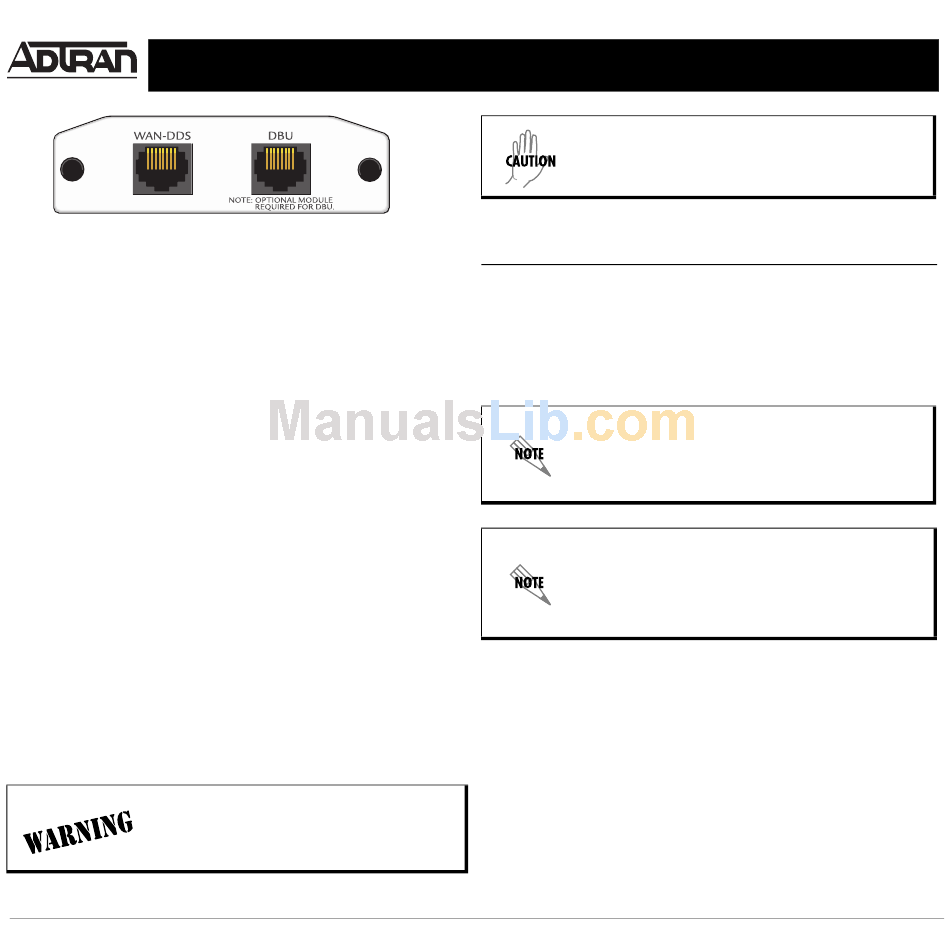

NetVanta 56K/64K Network Interface Module (NIM)
Quick Start Guide
S
PECIFICATIONS
Operating Mode Dedicated DDS (leased line)
DDS Interface Supported Standards: AT&T TR 62310
4-wire, full-duplex
Receiver Sensitivity: -45 dB, all rates
Data Rates: 56K, 64K, and auto
Connector: RJ-48C
Clock Source Network, internal
Diagnostics CSU and DSU loopbacks
Compliance FCC Part 15 Class A, EN 55022 Class A
ACTA/FCC Part 68
UL/CUL 60950, IC CS-03
Physical Dimensions: 2.75-inch W x 4.25-inch D
Operating Temperature: 0°C to 50°C
Storage Temperature: -20°C to 70°C
Relative Humidity: Up to 95 percent, noncondensing
I I
NSTALLATION NSTRUCTIONS
1. Remove power from the unit.
2. Slide the option module into the option slot until the module is firmly
seated against the chassis.
3. Secure the pins at both edges of the module.
4. Connect the cables to the associated device(s).
5. Complete the installation of the base unit.
6. Restore power to the unit.
For NetVanta modules with outside plant
connections, ensure that all cables are
removed from the module before installing
or removing it from the NetVanta chassis.
Quick Start Guide, 61200861L1-13E, July 2006
For more detailed documentation, visit us online at www.adtran.com.
WAN-DDS (RJ-48C) C
Pin
Technical Support 1-888-4ADTRAN (1-888-423-8726)
NetVanta modules should be installed only in
NetVanta Series products.
ONNECTION
Name Description
1 R1 Transmit data to Network–Ring 1
2 T1 Transmit data to Network–Tip 1
3-6 — Unused
7 T Receive data from Network–Tip
8 R Receive data from Network–Ring
An optional Dial Backup Interface Module (DIM) is
required for dial backup applications.
For a description of the DBU pinouts, refer to the
Quick Start Guide included with your DIM
shipment.
Important: For additional details on product
features, specifications, installation, and safety, refer
to the appropriate Hardware Installation Guide on
the ADTRAN OS System Documentation CD
shipped with the base unit and available online at
www.adtran.com.
Copyright © 2006 ADTRAN, All Rights Reserved
P/N 1202861L1
P
INOUTS
