Summary of Contents for Wesco WS2013U

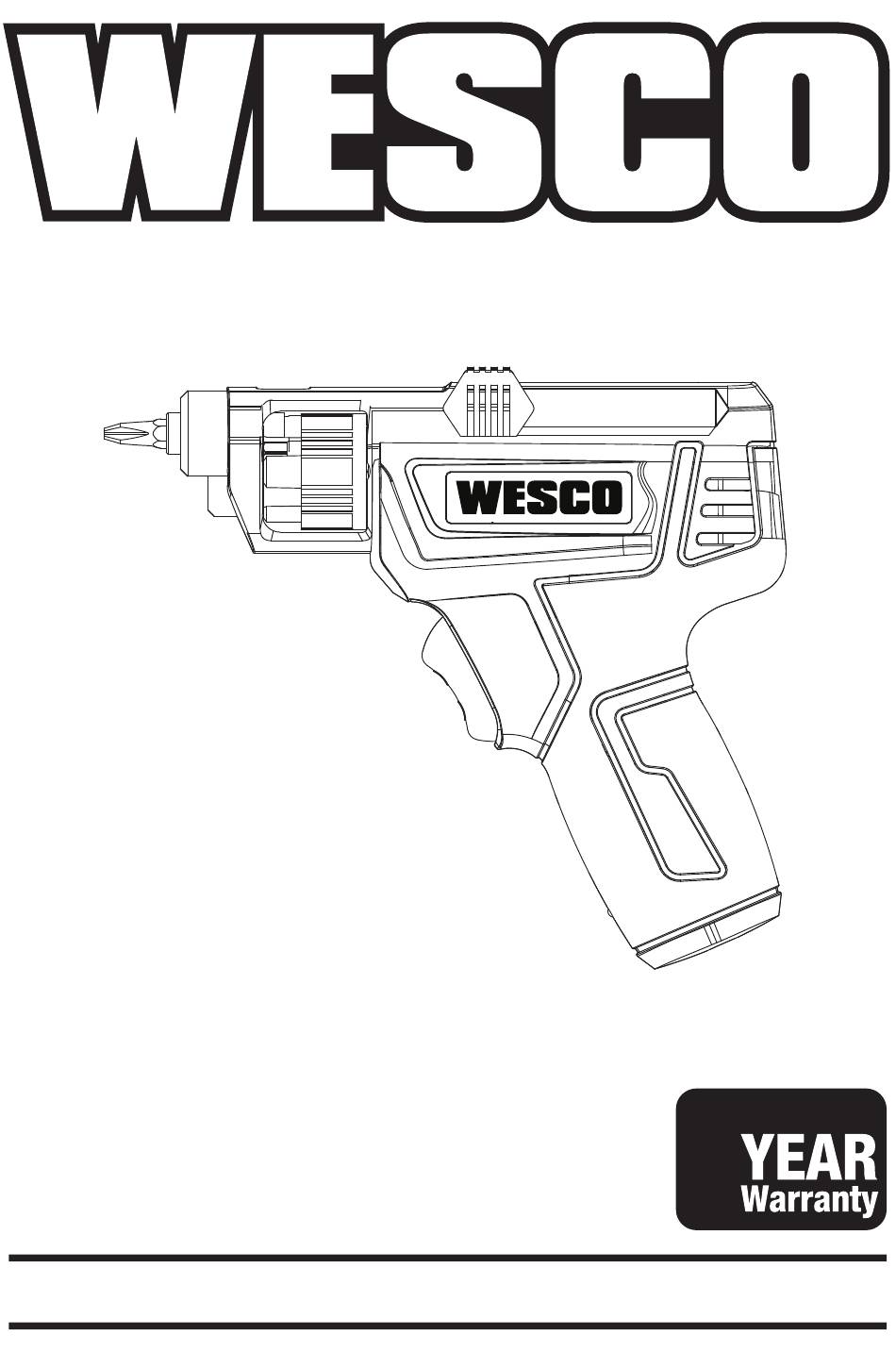

- Page 1 WS2013U (CSD36G3) 4V Li-Ion Screwdriver...
- Page 3 Fig.A1 Fig.A2 Fig.A3 Fig.B3 Fig.B1 Fig.B2 Fig.B6 Fig.B4 Fig.B5 FORWARD REVERSE Fig.D1 Fig.B7 Fig.C Fig.E Fig.D2 Fig.D3...
-
Page 4: Product Safety
PRODUCT SAFETY 2) Electrical safety a) Power tool plugs must match the outlet. Never WARNING: Some dust created by power sanding, modify the plug in any way. Do not use any adapter sawing, grinding, drilling and other construction plugs with earthed (grounded) power tools. activities contains chemicals known to the state Unmodified plugs and matching outlets will reduce risk of California to cause cancer, birth defects or other... - Page 5 f) Dress properly. Do not wear loose clothing or 5) Battery tool use and care jewellery. Keep your hair and clothing away from a) Recharge only with the charger specified by the moving parts. Loose clothes, jewellery or long hair can manufacturer.
- Page 6 Recharge only with the charger specified by WESCO. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery may create a risk of fire when used with another battery.
- Page 7 SYMBOLS To reduce the risk of injury, user must read instruction manual Warning Wear ear protection Wear eye protection Wear dust mask Li-Ion battery, battery must be recycled Do not burn Batteries may enter water cycle if disposed improperly, which can be hazardous for ecosystem.
-
Page 8: Component List
COMPONENT LIST Screwdriver bit Chuck Bit cartridge Top slide cover Soft Grip Handle Battery charging socket Charging indicator light Reverse rotating on/off switch Forward rotating on/off switch 10. LED light Charger 12. Top bit window (See Fig. B2) * Not all the accessories illustrated or described are included in standard delivery. TECHNICAL DATA Battery voltage Max**... - Page 9 OPERATING INSTRUCTIONS WARNING: When charging, the charger and screwdriver may become warm to the touch; NOTE: Before using the tool, read the instruction this is normal and does not indicate a problem. book carefully. 2. SELECTING A BIT (SEE FIG. B1-B3) INTENDED USE Pull the top slide cover backwards completely.
-
Page 10: Storage And Transportation
Model Number: XZ0500-0600W is depleted, the driver is switched off by means of the Trade Name: WESCO protective circuit: The chuck no longer rotates. When this occurs, you need to recharge the battery. This device complies with part 15 of the FCC Rules.
