MINI-T-NX Installation Quick Guide
Page 2
NOTE To access a remote MINI-T-NX through the Internet, contact your ISP
service provider and network administrator for more information.
Configure MINI-T-NX for Ethernet network access.
CONTINUE Two of the most common Ethernet connection
scenarios are described on this page.

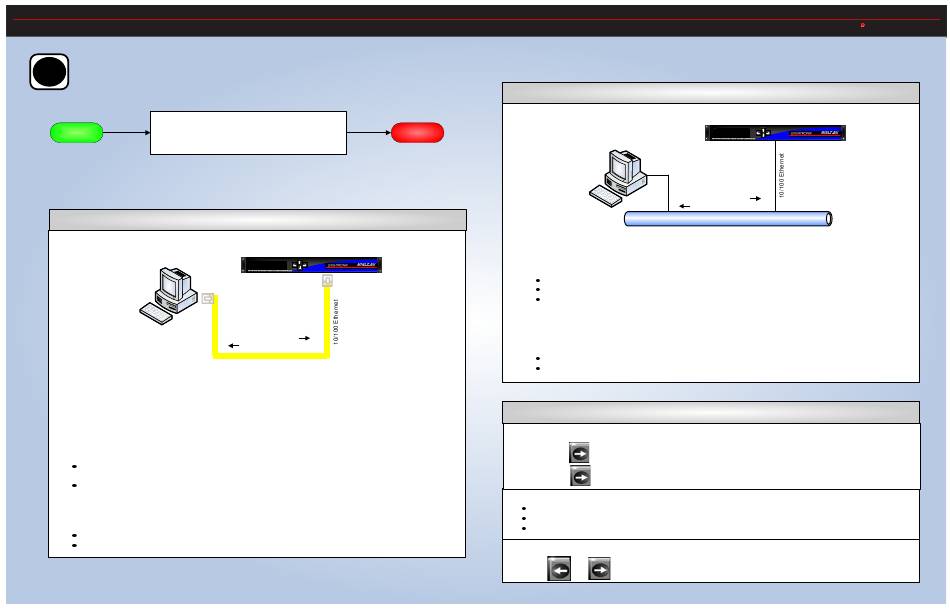

DIRECT ETHERNET CONNECTION
`
Connect MINI-T-NX directly to a PC per the following steps:
1. If necessary, install and configure a 10/100 BASE-T Ethernet Network Interface Card (NIC) on the PC. Refer
to the NIC documentation and technical support for further instructions.
2. PC NETWORKING ADDRESSES: obtain your PC's TCP/IP networking IP address and subnet mask from
Windows (see the MINI-T-NX Manual or your computer manual for more detailed instructions).
3. MINI-T-NX NETWORKING ADDRESSES: Enter the following IP and subnet mask addresses into the front
panel of your MINI-T-NX (refer to "Entering TCP/IP Addresses into MINI-T-NX Front Panel" at right):
IP address: one number above your PC's IP address (for ex., if your PC's IP address is 10.255.9.15, set
your Controller to 10.255.9.16)
Subnet mask: your PC's subnet mask address
4. Using a cross-over RJ-45 Ethernet cable, connect the MINI-T-NX Ethernet port to the PC's NIC.
5. Ensure the MINI-T-NX and PC have been properly configured for Ethernet network access by checking to see
that the yellow LED above the Ethernet port is on. If the yellow LED does not turn on, check the following:
Proper addresses have been entered into the MINI-T-NX front panel
A crossover cable was used to attach the MINI-T-NX to your PC
Mon, January 1, 12:00:00PM
IP: 10.255.0.13
Scheduling &
Management
Software
Schedule Files
System Status & Log Files
END
Connect MINI-T-NX to an existing Ethernet TCP/IP Network per the following steps:
1. Obtain the following from your technical support personnel or network administrator and enter into the front
panel of your MINI-T-NX (refer to "Entering TCP/IP Addresses into MINI-T-NX Front Panel" below):
IP address
Subnet mask
Gateway address
2. Using a straight through RJ-45 Ethernet cable, connect the MINI-T-NX's Ethernet port to a 10/100 BASE-T
hub or switch on the TCP/IP network.
3. Ensure the MINI-T-NX and PC have been properly configured for Ethernet network access by checking to see
that the yellow LED above the Ethernet port is on. If the yellow LED does not turn on, check the following:
Proper addresses have been entered into the MINI-T-NX front panel
A straight-through cable was used to attach the MINI-T-NX to the network
ENTERING TCP/IP ADDRESSES INTO MINI-T-NX FRONT PANEL
1. Enter front panel password according to the following steps:
a. Press the
b. Press the
2. Enter each address into its corresponding entry screen:
IP address: "Edit unit IP Address" screen
Subnet mask address: "Edit unit Subnet Mask" screen
Gateway address: "Edit unit Gateway Addr" screen
3. The MINI-T-NX must be powered down and then powered back up to apply address changes (simultaneously
press and
NETWORK ETHERNET CONNECTION
Mon, January 1, 12:00:00PM
IP: 10.255.0.13
Scheduling &
Management
Software
`
Schedule Files
System Status & Log Files
TCP/IP Network
key to display the password entry screen.
key 5 times to enter the factory-default password and display the "CONFIG MENU" screen.
for one second to turn off and repeat to turn back on).
LEIGHTRONIX, INC.
Video Servers Television Automation
2007-12-11
