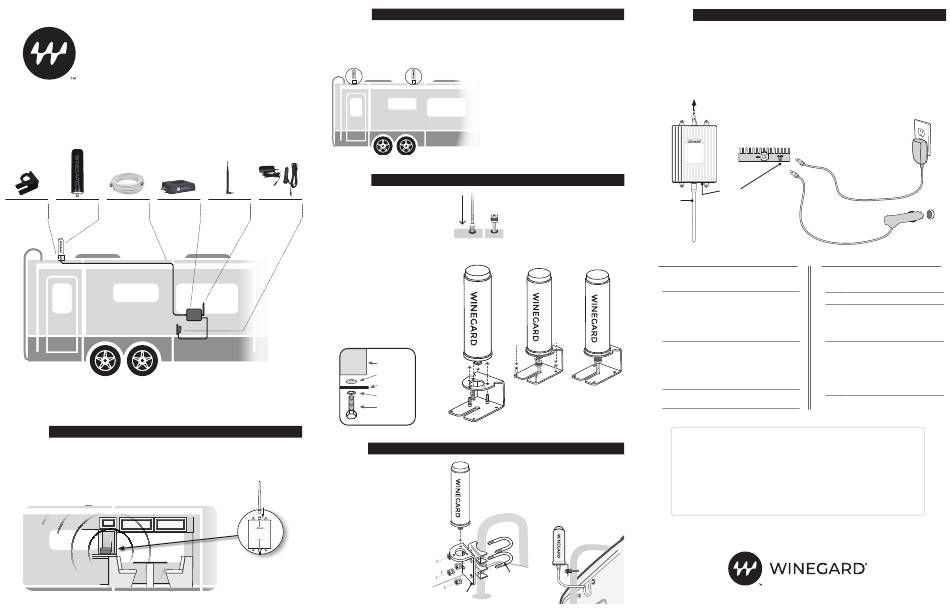

Winegard RangePro WB-1035 Quick Setup Manual

WINEGARD
RangePro
Cell Booster for RVs
WB-1035 QUICK SETUP GUIDE
RV Roof Outside Omni- Coax Cable RangePro
Mount directional (40 ft) Signal Booster
Antenna
The Winegard RangePro is designed to work with existing cellular signals, and cannot be
used as a standalone cellular hotspot. A cellular plan and device are required for operation.
STEP 1
INSTALL THE SIGNAL BOOSTER AND CONNECT INSIDE ANTENNA
Identify a location for the booster that is near the Connect the inside whip antenna to the port on
center of where signal is needed. The location the side of the booster labeled "INSIDE".
should be free from excessive heat, direct sunlight,
Note: The inside antenna sends signals in a
or moisture—and provide proper ventilation. (We
360-degree radius and should be positioned
suggest you mount the booster within a cabinet or on
vertically.
a side panel close to a power source.)
STEP 2
SELECT A SITE FOR THE OUTSIDE MOUNT
®
Note: To avoid possible interference, mount the
antenna at least 15' away from the indoor booster
and allow at least 3' from other RF products (such
™
as satellites and over-the-air antennas).
STEP 3
MOUNT OUTSIDE ANTENNA ON ROOF
1. After selecting the outside antenna
position, drill the cable hole through the roof
Inside AC or DC
in an area free from other cables or pipes.
Whip Antenna Power
Adapter
2. Feed the small end of the cable through
the hole until only the connector and 1"
of coax remain outside the coach.
3. Remove the three screws and washers that
are attached to the outside antenna.
4. Place the antenna through the
hole on the top of the roof mount.
5. Align the two small holes located on the
bottom side of the antenna with the two
small holes on top of the roof mount. Next,
reattach the three screws and washers
through the roof mount and into the holes
on the base of the antenna.
LTE-A LTE-A
LTE-V LTE-V
POWER POWER
CELLULAR CELLULAR
PCS PCS
AWS AWS
antenna
washer
mount
lock washer
bolt
OR

MOUNT OUTSIDE ANTENNA USING OPTIONAL LADDER MOUNT

Before you begin, please note that
this installation requires the use
of a ladder, mast or RV mounting
system on which to mount the
outside antenna.
1. Remove the three screws and
washers that are attached to the
outside antenna.
2. Place the antenna through the
LTE-A
LTE-V
hole on the top of the roof mount
CELLULAR POWER
PCS
AWS
and reattach 3 screws and
washers.
3. Assemble the L-bracket with
U-bolts, brackets, nuts and
washers and secure to mast as
shown in the illustration.
4. Secure antenna to the horizontal
plate of L-bracket using screws.
LTE-A
LTE-V
POWER
CELLULAR
PCS
The outside antenna must not be collocated or
operating with any other antenna or booster.
Maximum height restriction is 31' 9" (10 meters)
above ground.
We advise you first perform a "soft" installation
by routing the outside antenna cable through an
open window (step 4). After completing the "soft"
installation and verifying successful operation,
proceed with installing the external antenna.
Select a location for the outside antenna that
is above the roofline. The outside antenna is LTE-A
LTE-V
POWER
CELLULAR
omni-directional, which receives and sends signals
PCS
AWS
in a 360-degree radius. For maximum performance,
mount the antenna at the highest possible location
outside the vehicle and in an upright position, but
also ensure this is a spot where you can drill a hole
for cable entry.
6. Position the roof mount over the
cable, threading the cable through
the mount's channel.
7. Secure the mount on the roof by
inserting and tightening the provided
screws into the four mounting
holes. Verify the provided screws
are approved with the vehicle
manufacturer before installing.
8. Connect the cable to the outside
antenna. Create a moisture barrier
by using manufacturer-approved
permanent sealant around all
screws and holes in the RV roof.
5. Drill a hole for cable entry on the side
of the vehicle, away from other cables
or pipes. Use a rubber gasket (sold
separately) to protect the cable and
your vehicle surface. Form a drip loop
before entry and create a moisture
barrier using a manufacturer-
approved permanent sealant.
U-bolt
L-bracket
STEP 4
CONNECT POWER AND VERIFY SUCCESSFUL OPERATION
1. Inside the vehicle, connect the cable leading to the The Power LED will light, indicating that the signal
outside antenna to the port on the booster labeled booster is ready for use. Place a call in a location you
"OUTSIDE." Make sure that all connections are have previously experienced poor signal and confirm
secure before powering on. that your phone is receiving a boosted signal. Normal
operation is indicated by green LEDs (both flashing
2. Finish permanent cable installation by securing
and solid). In the event red LEDs appear, antenna
any loose cables inside the vehicle.
adjustments may be needed.
3. Connect the AC power adapter (or 12V adapter) to
WARNING: The booster is rated for 6-15V input
the signal booster and plug it into power.
voltage. DO NOT use the booster with a higher
voltage power supply. This can damage the
To Outside
booster and/or cause personal injury.
Antenna
LTE-A
LTE-V
POWER
CELLULAR
LTE-A
PCS
LTE-V
POWER
AWS
CELLULAR
PCS
AWS
AC power
or
Power
DC power
Inside Whip
Jack
Antenna

TROUBLESHOOTING

LED INDICATORS

Problem Resolution Color
Signal booster Verify that the Power LED is ON. Green
has no power
Connect the power supply to an
alternate power source. Green
Verify that the power source is
operational and the fuse is intact.
If it remains OFF, contact tech support
at: 1-855-433-2291
After completing Verify that cable connections are Red
installation, signal tightly fitted to the booster.
coverage has not
Try further separating the antennas.
improved
NOTE: Bars are not always a reliable
measure of signal. The best way to
confirm signal coverage is the ability to
place and hold a call.
The booster case The booster case may become warm
is warm during operation. This is normal.
Have questions?
We have answers! Reach out to our US-based support team:
Call: 855-433-2291
Visit: www.winegard.com/support
To register your product please visit winegard.com/login and create an
account. You can then register your product(s) by clicking the Manage My
Accounts button.
Manuel disponible en français au www.winegard/support
WINEGARD COMPANY |
2736 MT. PLEASANT ST. BURLINGTON, IA 52601
Condition Indication
Solid Indicates normal operation.
Flashing Normal operation. Indicates
that Automatic Gain Control
(AGC) is self-adjusting due
to over-signal or antenna
proximity.
Flashing Indicates issues caused by
overpowering or oscillation.
Adjust your outside and
inside antenna locations
to maximize separation
between them by increasing
distance as well as adding
obstructions.
2452456 Rev2-22
