1. Product description
This is a dual tuner local TV (DVB-T/T2/C) to IP gateway for home users. The device allows multiple users to
watch local TV on their smartphone, tablet, smart TV or personal computer. The device also allows video
recording to the USB or local network drive for watching the records later. It is possible to access the device from
outside your local network (e.g. using the smartphone and mobile data connection) and watch TV and records
remotely.
"TerraTV" Android app is designed specifically for this product for video playback. Third-party video players
are supported as well.
STI520P is packed with an external power supply.
The device is intended for indoor usage only.
2. Safety instructions
The streamer is powered from the external power supply +12 V. This voltage is not dangerous to life.
Any repairs must be done by the skilled personnel.
Do not plug the power supply of the streamer into the mains until all the cables have been connected
correctly.
Streamer shall not be exposed to dripping or splashing water.
Avoid placing the streamer next to central heating components, near highly combustible materials and in
areas of high humidity.
If the streamer has been kept in cold conditions for a long time, keep it in a warm room no less than 2 hours
before use.
Do not place the streamer on unstable surfaces, where the unit may fall and resulting possible damage.
Do not insert any objects into the ventilation openings.
The ventilation should not be impeded by covering the streamer with items, such as newspapers, cloths,
curtains.
This product complies with the relevant clauses of the European Directive 2002/96/EC. The unit must
be recycled or discarded according to applicable local and national regulations.
Equipment intended for indoor usage only.
This product is in accordance to following norms of EU: EMC norm EN50083-2, safety norm
EN62368-1 and RoHS norm EN50581.
This product is in accordance with Custom Union Technical Regulations: "Electromagnetic
compatibility of technical equipment" CU TR 020/2011, "On safety of low-voltage equipment" CU TR
004/2011
This product is in accordance with safety standard AS/NZS 60065 and EMC standards of Australia.
Vers. 1.01

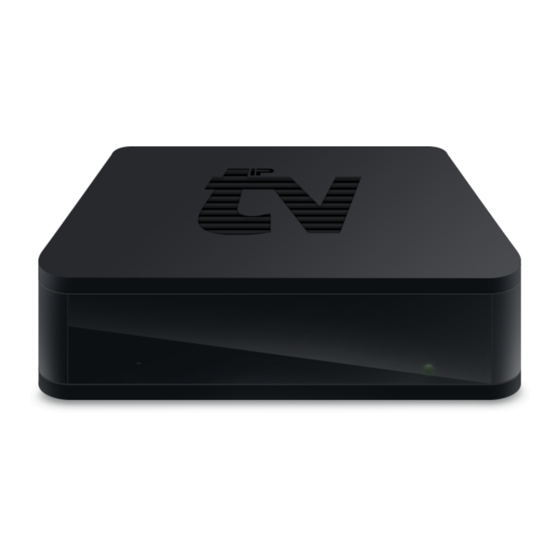

DVB to IP streamer STI520
Scan for downloading TerraTV app
from Google Play
EN
Advertisement
Related Manuals for Terra STI520
Summary of Contents for Terra STI520
- Page 1 DVB to IP streamer STI520 1. Product description This is a dual tuner local TV (DVB-T/T2/C) to IP gateway for home users. The device allows multiple users to watch local TV on their smartphone, tablet, smart TV or personal computer. The device also allows video recording to the USB or local network drive for watching the records later.
- Page 2 3. External view Rear view Front view Figure 1. External view of the streamer. – RF IN – RF signal (antenna) input connector. F type; – 10/100Mb ETH – IPTV and WEB control interface. RJ45 socket; – USB – USB connector for video records storage. USB-A socket; –...
- Page 3 • Use “unmount” (see section 5.5.1) function before removing the drive; • It is recommended to use the disk with NTFS or exFAT file system. In case of FAT32, the file size will be limited to 4 GB, and some of TV programs may not fit in the file. •...
- Page 4 System diagnostics information. Exclamation mark and red circle indicates that there is a problem with device and user attention is required. Click on this icon to see the detailed diagnostics errors description window. Download and read the latest device user manual by clicking on this icon. Currently logged-in user name is shown at the top right WEB configuration window side.
- Page 5 5.2.2 Channel scanning The “Autoscan” table checkboxes show all supported modulation standards (see Figure 5). DVB-T and DVB- T2 scanning use a country-specific frequency grid. Make sure that your country is selected correctly. Select which standards the “autoscan” function should use and click “Scan” button. The device will automatically scan all available radio frequency (RF) channels.
- Page 6 Figure 7. List of TV programs. Below is a detailed description of table columns. User assigned channel logo. See section 5.3.1 for detailed explanation for adding/removing channel logo picture. Title TV program title. TV program type. Adjust the position of TV program in the playlist file. Frequency RF channel frequency which TV program belongs to.
- Page 7 5.4.1 Playlist parameters Figure 10. Playlist parameters. “Playlist name” – playlist name that will be inserted into the playlist file. “URL key” – secret password for playlist file security. Other users who don’t know correct URL key will not be able to use the playlist file and watch video.
- Page 8 Rename existing group. Delete group and all its content. To assign a channel to the group, drag a TV channel from the left table to the right table group name. The channel will be assigned to this group. The same channel can belong to several groups. M3U and DLNA playlists will be updated after any change automatically.
- Page 9 Figure 14. Storage configuration. If the storage type is a network drive, the “Network drive address” field must specify the full path to the drive. Domain name is not supported in this field. The address must begin with // characters, followed by the IP address.
- Page 10 5.6.1 LAN Figure 17. LAN IP parameters. IP parameters can be set in this section as shown in Figure 17. Selecting the “Enable DHCP client” checkbox will use a home router’s DHCP server to automatically assign the IP settings (IP address, subnet mask, gateway, DNS server). Leave check box unchecked if you want to set “IP address”, “Subnet mask”, “Gateway”, “DNS server”...
- Page 11 “Streaming port” is a port number used for video streaming. External streaming port value should be equal to local streaming port value. Otherwise “Terra TV” app or third-party video players may not work correctly. „WEB port“ is the device control port number. Enable this port to access the device WEB interface remotely.
- Page 12 Domain can also point to the public IP address as well (see DNS type parameter in the Figure 19). Additional router forwarding is required. “Force redirection” flag will automatically redirect your WEB browser to a secure connection, even if you try to access it using an IP address.
- Page 13 A user with “Administrator” privilege can see this menu and add / remove users who can log in to the system. Figure 23 shows the users control window. Figure 23. Users management. Click “Add” to create a new user. A new pop-up window as shown in Figure 24 will appear. The Role parameter is a type of user access rights.
- Page 14 5.7.6 Firmware upgrade When you click the “Firmware Upgrade” submenu, your web browser will automatically check for the latest software version. The table (see example Figure 26) with a list of the latest firmware releases will appear on the screen. Figure 26.
- Page 15 Figure 29. Device auto restart. 5.7.9 Restore defaults All settings, except IP parameters, can be reset to factory defaults by selecting the “Restore defaults” submenu. A confirmation message will appear on the screen asking if you really want to do this. Once confirmed, settings will be restored to their default values, and all logs will be deleted.
- Page 16 Figure 31. Device information. 6. Reset button Reset button has different functions which mainly depend on the duration of the press. • Device reset A short press (less than 2 seconds) will restart the entire system. Red-green LED indicates acceptance of this command.
- Page 17 MPTS SPTS Control port standard IEE802.3 10/100 Base T Current consumption without external 12 ± 1 V 300 mA (STI520) load Current consumption with max. external 12 ± 1 V 700 mA (STI520) load Supply voltage limit values, power 100-240 V~ 50/60 Hz 10 W max.
