Low power consumption
•
Short-circuit resistant
•
High performance
•
high signal-to-noise ratio
•
High slew rate
•
Low distortion
•
Large output voltage swing.
13.2.3.Pinning
SYMBOL
PIN
DESCRIPTION
OUTA
1
Output A
INA(neg)
2
Inverting input A
INA(pos)
3
Non-inverting input A
V
4
Negative supply
SS
INB(pos)
5
Non-inverting input B
INB(neg)
6
Inverting input B
OUTB
7
Output B
V
8
Positive supply
DD
13.3.MSP34X0G (MSP3410G)
13.3.1.Description
The MSP 34x0G family of single-chip Multi standard Sound Processors covers the sound processing of
all analog TV-Standards worldwide, as well as the NICAM digital sound standards. The full TV sound
processing, starting with analog sound IF signal-in, down to processed analog AF-out, is performed on

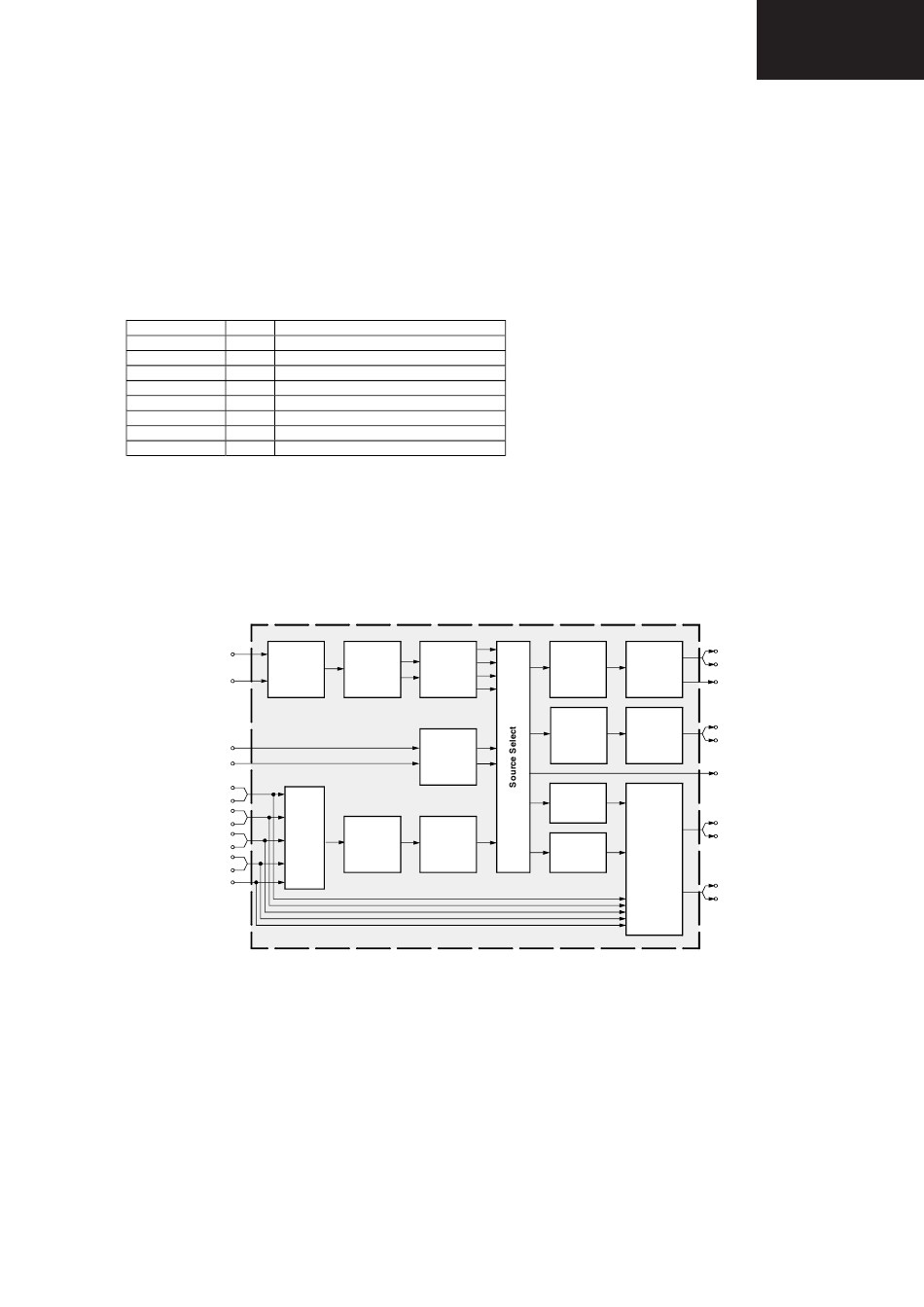

a single chip. Figure shows a simplified functional block diagram of the MSP 34x0G.
Sound IF1
ADC
Sound IF2
2
I
S1
2
I
S2
SCART1
SCART2
SCART
DSP
Input
SCART3
Select
SCART4
MONO
This new generation of TV sound processing ICs now includes versions for processing the multi
channel television sound (MTS) signal conforming to the standard recommended by the Broadcast
Television Systems Committee (BTSC). The DBX noise reduction, or alternatively, MICRONAS Noise
Reduction (MNR) is performed alignment free. Other processed standards are the Japanese FM-FM
multiplex standard (EIA-J) and the FM Stereo Radio standard. Current ICs have to perform adjustment
procedures in order to achieve good stereo separation for BTSC and EIA-J. The MSP 34x0G has
optimum stereo performance without any adjustments.
All MSP 34x0G versions are pin and software downward compatible to the MSP34x0D. The
MSP34x0G further simplifies controlling software. Standard selection requires a single I
only.
The MSP 34x0G has built-in automatic functions: The IC is able to detect the actual sound standard
automatically (Automatic Standard Detection). Furthermore, pilot levels and identification signals can be
evaluated internally with subsequent switching between mono/stereo/bilingual; no I
necessary (Automatic Sound Selection).
De-
Pre-
processing
modulator
Prescale
ADC
Prescale
11
Loud-
Loud-
speaker
speaker
DAC
Sound
Subwoofer
Processing
Headphone
Headphone
Sound
DAC
Processing
I
DAC
SCART1
SCART
DAC
Output
Select
SCART2
AK - 45
CHASSIS
2
S
2
C transmission
2
C interaction is
