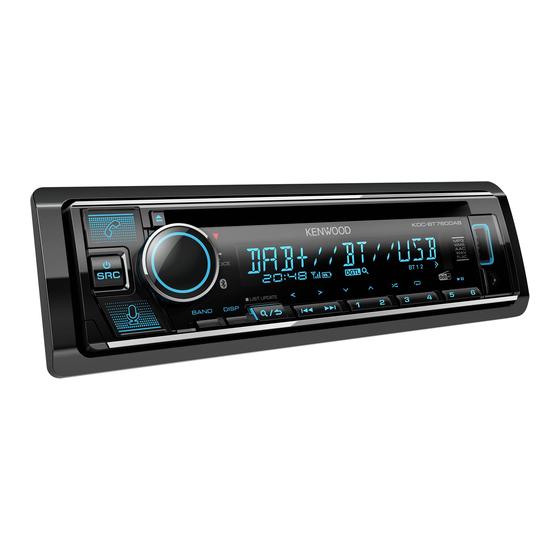

- Page 1 KDC-BT760DAB KMM-BT508DAB CD-RECEIVER DIGITAL MEDIA RECEIVER INSTRUCTION MANUAL INSTRUCTION MANUAL © 2022 JVCKENWOOD Corporation B5A-3895-00 [XN]...
- Page 2 SOFTWARE LICENSE AGREEMENT Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be...
- Page 3 Important Notice concerning the Software Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed -jansson Software, any related documents and copies thereof within two (2) weeks from such date of termination. Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org>...
- Page 4 -CMP sha2 AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without You may obtain a copy of the license at limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the...
- Page 5 Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved. T-Kernel 2.0 Author: Chris G. Demetriou This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum (www.tron.org) Permission to use, copy, modify and distribute this software and its documentation is hereby granted, provided that both the copyright notice and this permission notice appear in all copies of the software, BSD-3-Clause derivative works or modified versions, and any portions thereof, and that both notices appear in supporting...
-
Page 6: Table Of Contents
Contents Before Use ....................3 References ....................37 Basics ......................3 Maintenance More information Faceplate ( Change the display information Faceplate ( Troubleshooting ..................39 Getting Started ..................5 Specifications ..................42 1 Acknowledge the crossover type and cancel the demonstration 2 Set the clock and date 3 Set the other optional settings How to read this manual... -
Page 7: Before Use
Before Use Basics IMPORTANT Faceplate • To ensure proper use, please read through this manual before using this Volume knob Loading slot product. It is especially important that you read and observe Warnings and Cautions in this manual. • Please keep the manual in a safe and accessible place for future reference. WARNING •... - Page 8 Basics Faceplate On the faceplate Volume knob Display window* Turn on the power Press B SRC. • Press and hold to turn off the power. Adjust the volume Turn the volume knob. Select a source • Press B SRC repeatedly. •...
-
Page 9: Getting Started
Getting Started To set the date Turn the volume knob to select [DATE FORMAT], then press the knob. Turn the volume knob to select [DD/MM/YY] or [MM/DD/YY], then press the knob. Turn the volume knob to select [DATE SET], then press the knob. Turn the volume knob to make the settings, then press the knob. - Page 10 Getting Started [DISPLAY] [SOURCE SELECT] [EASY MENU] When entering [FUNCTION]... [BT AUDIO SRC] [ON]: Enables BT AUDIO in source selection. ; [OFF]: Disables. [ON]: [ZONE 1] illumination changes to white color. ; (Page 21) [OFF]: [ZONE 1] illumination remains as [COLOR SELECT] color. [BUILT-IN AUX] [ON]: Enables AUX in source selection.
-
Page 11: Digital Radio
Digital Radio Getting Started About DAB (Digital Audio Broadcasting) Change the crossover type DAB is one of the digital radio broadcasting systems available today. It can Press B SRC repeatedly to enter STANDBY. deliver digital quality sound without any annoying interference or signal Press and hold number buttons 4 and 5 to enter crossover select. - Page 12 Digital Radio • “DGTL” indicator lights up when receiving DAB digital signal and flashes Other settings when receiving a RDS signal. • The unit switches to DAB alarm automatically when receiving an alarm Press the volume knob to enter [FUNCTION]. signal from DAB broadcast.
- Page 13 Digital Radio [ASW SELECT] [TRAVEL], [WARNINGS], [NEWS], [WEATHER], [EVENT], [SPECIAL], [CLOCK] [RAD INFO], [SPORTS], [FINANCE]: Turn the volume knob to make a [TIME SYNC] [ON]: Synchronizes the unit’s time to the Digital Radio station time. ; selection, then press the knob. [OFF]: Cancels.
-
Page 14: Analog Radio
Analog Radio Default: [XX] [TUNER SETTING] [SEEK MODE] Selects the searching method for S / T buttons when pressed. [AUTO1]: Automatically search for a station. ; [AUTO2]: Search for a preset station. ; [MANUAL]: Manually search for a station. [LOCAL SEEK] [ON]: Searches only AM stations with good reception. -
Page 15: Cd/Usb/Ipod
CD/USB/iPod Analog Radio • [MONO SET]/[NEWS SET]/[REGIONAL]/[AF SET]/[PTY SEARCH] is selectable only Insert a disc (for when the band is FM1/FM2/FM3. Eject disc Label side • If the volume is adjusted during reception of traffic information, alarm or news bulletin, the adjusted volume is memorized automatically. It will be applied the next time traffic information, alarm or news bulletin is turned Available Program Type for [PTY SEARCH] The source changes to CD automatically and playback starts. - Page 16 CD/USB/iPod Basic operations Select music drive While in USB source, press 5 repeatedly. Stored songs in the following drive will be played back. • Selected internal or external memory of a smartphone (Mass Storage Class). • Selected drive of a multiple drive device. (This unit can support multiple drive device of up to 4 drives.
- Page 17 CD/USB/iPod Default: [XX] Skip search (applicable only for iPod USB source and iPod BT source) [USB] If you have many files in the selected list, you can perform the following to search for a file by skipping through the list at a rate selected in [SKIP SEARCH]. [IPHONE SETUP] [BT]: iPod BT source is available if iPod/iPhone is connected via Bluetooth.
-
Page 18: Aux
CD/USB/iPod You can listen to music from a portable audio player via the auxiliary input Alphabet search (applicable only for iPod USB source and iPod BT source) jack. You can search for a file according to the first character. Preparation: Press Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. -
Page 19: Kenwood Remote Application
KENWOOD Remote Application You can control the KENWOOD car receiver from iPhone/iPod touch (via Default: [XX] Bluetooth or via USB input terminal) or Android device (via Bluetooth) using [REMOTE APP] KENWOOD Remote application. • For more information, visit <https://www.kenwood.com/cs/ce/>. [SELECT] Selects the device ([IOS] or [ANDROID]) to use the application. -
Page 20: Bluetooth
Bluetooth features may not work with this Press B SRC to turn on the unit. unit. Search and select the name of your receiver (“KDC-BT760DAB”/ • Be sure to turn on the Bluetooth function of the device to make the “KMM-BT508DAB”) on the Bluetooth device. -
Page 21: Bluetooth - Mobile Phone
Bluetooth® The following operations may differ or be unavailable depending on the Auto Pairing connected phone. When you connect iPhone/iPod touch to the USB input terminal, pairing request (via Bluetooth) is automatically activated if [AUTO PAIRING] is set to On the faceplate [ON]. - Page 22 Bluetooth® Improve the voice quality Make a call While talking on the phone... You can make a call from the call history, phonebook, or dialing the number. Call by voice is also possible if your mobile phone has the feature. Press the volume knob to enter [FUNCTION].
- Page 23 Bluetooth® Make a call using voice recognition [PHONE BOOK] (Applicable only if the phone supports PBAP.) 1 Turn the volume knob quickly to enter alphabet search mode (if the Press and hold to activate the voice recognition of the connected phonebook contains many contacts).
- Page 24 To return to the previous setting item, press Press and hold “PLEASE PAIR YOUR PHONE PIN 0000” appears on the display. Default: [XX] Search and select the name of your receiver (“KDC-BT760DAB”/ [BT MODE] “KMM-BT508DAB”) on the Bluetooth device. [PHONE SELECT] Operate the Bluetooth device to confirm pairing.
-
Page 25: Bluetooth - Audio
Bluetooth® Bluetooth — Audio On the faceplate • Operations and display indications may differ according to their availability Random play Press and hold 3 to select [ALL RANDOM] or on the connected device. [GROUP RANDOM]. • Depending on the connected device, some features may not work with •... -
Page 26: Amazon Alexa
Tap “Automotive Accessory” or “Headphones” from the list of device Setup for the first time types. Tap the name of your receiver (“KDC-BT760DAB”/“KMM-BT508DAB”) For Android device and follow the instructions. Pair your device with this unit via Bluetooth. (Page 16) Start up the Alexa mobile application on your device. - Page 27 AMAZON ALEXA • To return to the previous source before ALEXA, press B SRC. • To activate Alexa, press or speak “Alexa”. • To cancel current listening state, press . • To cancel current thinking/speaking states and go to listening state, press or speak “Alexa”.
-
Page 28: Audio Settings
Audio Settings AMAZON ALEXA Start listening While in Alexa idle state... Speak the word “Alexa” to the connected microphone (Page 16) to activate Alexa. (or) Press on the unit to speak with Alexa. The display shows: “LISTENING...”. Press the volume knob to enter [FUNCTION]. Communicate with Alexa via the connected microphone. - Page 29 Audio Settings [MANUAL EQ] Adjusts your own sound settings for each source. [FADER] (Not applicable if 3-way crossover is selected.) (Page 7) • The settings are stored to [USER] in [PRESET EQ]. [R15] to [F15] ([0]): Adjusts the front and rear speaker output balance. •...
- Page 30 Audio Settings 2-way crossover setting items Crossover settings Below are the available setting items for 2-way crossover and 3-way [SPEAKER SIZE] crossover. [FRONT] [SIZE] [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/ [18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10] SPEAKER SIZE Selects according to the connected speaker size for optimum performance. [TWEETER] [SMALL]/[MIDDLE]/[LARGE]/[NONE] •...
- Page 31 Audio Settings [SUBWOOFER LPF] [SW LPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ [MID RANGE] [HPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/ [220HZ]/[250HZ]/[THROUGH] [THROUGH] [SW LPF SLOPE] [–6DB]/[–12DB]/[–18DB]/[–24DB] [HPF SLOPE] [–6DB]/[–12DB] [SW LPF PHASE] [REVERSE] (180°)/[NORMAL] (0°) [LPF FRQ] [1KHZ]/[1.6KHZ]/[2.5KHZ]/[4KHZ]/[5KHZ]/[6.3KHZ]/ [8KHZ]/[10KHZ]/[12.5KHZ]/[THROUGH] [SW LPF GAIN] [–8] to [0] [LPF SLOPE] [–6DB]/[–12DB] •...
- Page 32 Audio Settings – For : [SUBWOOFER] is selectable only when [DTA SETTINGS] [SWITCH PREOUT] is set to [SUB-W] (page 5) and [SUBWOOFER SET] is set to [POSITION] Selects your listening position (reference point). [ON] (page 25). [ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ; [FRONT LEFT]: Front left seat ;...
-
Page 33: Display Settings
Display Settings Zone identification for color settings and brightness settings Default: [XX] [DISPLAY] [COLOR SELECT] Selects illumination colors for [ALL ZONE], [ZONE 1] and [ZONE 2] separately. 1 Select a zone. (See the illustration on left column.) 2 Select a preset color for the selected zone. (Page 38) Default: [VARIABLE SCAN] To make your own color, select [CUSTOM R/G/B]. -
Page 34: Installation/Connection
Installation/Connection Part list for installation This section is for the professional installer. For safety’s sake, leave wiring and mounting to professionals. Consult the (A) Faceplate (×1) (B) Trim plate (×1) car audio dealer. WARNING • The unit can only be used with a 12 V DC power supply, negative ground. •... - Page 35 Installation/Connection Installing the unit (in-dash mounting) Installing the unit (without mounting sleeve) Example: Remove the mounting sleeve and trim plate from the unit. Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (commercially available). Example: Use only the specified screws.
- Page 36 Installation/Connection Removing the unit Connect external components Detach the faceplate. Fit the catch pin on the extraction keys into the holes on both sides of the trim plate, then pull it out. Insert the extraction keys deeply into the slots on each side, then follow the arrows as shown on the illustration.
- Page 37 Installation/Connection Wiring connection IMPORTANT We recommend installing the unit with a commercially available Fuse (10 A) custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. Antenna terminal White To front speaker (left)/ If no connections are made, do not let the wire come out from the tab.
- Page 38 Installation/Connection Part list for installation Installing the DAB antenna (F) Film antenna (×1) (G) Amplifier unit (cable with (H) Cable clamper Connect the supplied DAB antenna to the DAB antenna jack. (See “Connect booster, 3.5 m) (×1) (×3) external components” on page 32.) For details, see the following pages.
- Page 39 Installation/Connection CAUTION Antenna installation When installing the antenna cable inside the front pillar with the air bag installed 1 Remove the front pillar cover of your car. • The front pillar cover is secured with a special clip which may need to be replaced when it is removed. Front pillar Contact your vehicle dealer for details on removing the front pillar cover and availability of replacement...
- Page 40 Installation/Connection 4 Rub the film antenna gently onto the windscreen in the 6 Set the position of the protrusion of the amplifier unit 7 Remove the film covering the earth sheet and paste the (G) with the K mark on the film antenna (F) and paste. direction of the arrow shown to allow it to stick firmly.
-
Page 41: References
References General Maintenance • For : This unit can only play the following CDs: Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector • For detailed information and notes about the playable audio files, visit <https://www.kenwood.com/cs/ce/audiofile/>. -
Page 42: Change The Display Information
References About iPod/iPhone Source name Display information: Main display • Made for STANDBY Source name Date back to the beginning – iPod touch (6th generation) – iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR, 11, 11 Pro, DIGITAL AUDIO Service label Ensemble label... -
Page 43: Troubleshooting
Troubleshooting Symptom Remedy Symptom Remedy Sound cannot be heard. • Adjust the volume to the optimum level. Disc cannot be ejected. Press and hold to forcibly eject the disc. Be careful not • Check the cords and connections. to drop the disc when it is ejected. If this does not solve the problem, reset the unit (page 3, 4). - Page 44 Troubleshooting Symptom Remedy Symptom Remedy The iPod/iPhone does not • Check the connection between this unit and iPod/iPhone. Echo or noise is heard during • Adjust the microphone unit’s position. (Page 16) turn on or does not work. • Disconnect and reset the iPod/iPhone using hard reset. a phone conversation.
- Page 45 Troubleshooting Symptom Remedy Symptom Remedy “NO ENTRY” There is no registered device connected/found via Not able to connect or • Be sure the audio device is connected via Bluetooth. Bluetooth. reconnect to Alexa mobile Select the audio device from [AUDIO SELECT] in application.
-
Page 46: Specifications
Specifications DAB Frequency Range Band III: 174.928 MHz — 239.200 MHz Laser Diode GaAIAs Sensitivity –100 dBm Digital Filter (D/A) 8 times over sampling Signal-to-Noise Ratio 90 dB Spindle Speed 500 rpm — 200 rpm (CLV) Antenna Connector Type Wow & Flutter Below measurable limit Antenna Output Voltage 12 V DC... - Page 47 Specifications USB Standard USB 1.1, USB 2.0 (High speed) Maximum Output Power 50 W × 4 File System FAT12/16/32 Full Bandwidth Power 22 W × 4 (at less than 1 % THD) Maximum Supply Current DC 5 V 1.5 A Speaker Impedance 4 Ω...
- Page 48 • Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft. •...
