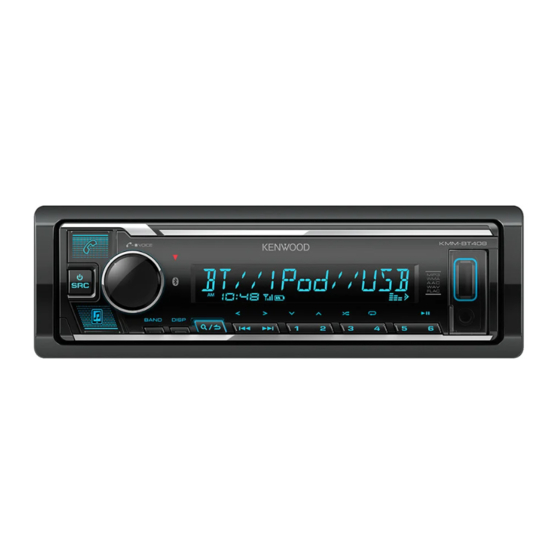

KMM-BT408
KMM-BT208
DIGITAL MEDIA RECEIVER
INSTRUCTION MANUAL
© 2022 JVCKENWOOD Corporation
KMM_BT408_MN_B5A-3850-00_Cover.indd 1
KMM_BT408_MN_B5A-3850-00_Cover.indd 1
Data Size:
B6L (182 mm x 128 mm)
Book Size:
B6L (182 mm x 128 mm)
B5A-3850-00 [MN]
1/27/2022 11:59:40 AM
1/27/2022 11:59:40 AM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KMM-BT408 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JVC KENWOOD KMM-BT408

Summary of Contents for JVC KENWOOD KMM-BT408

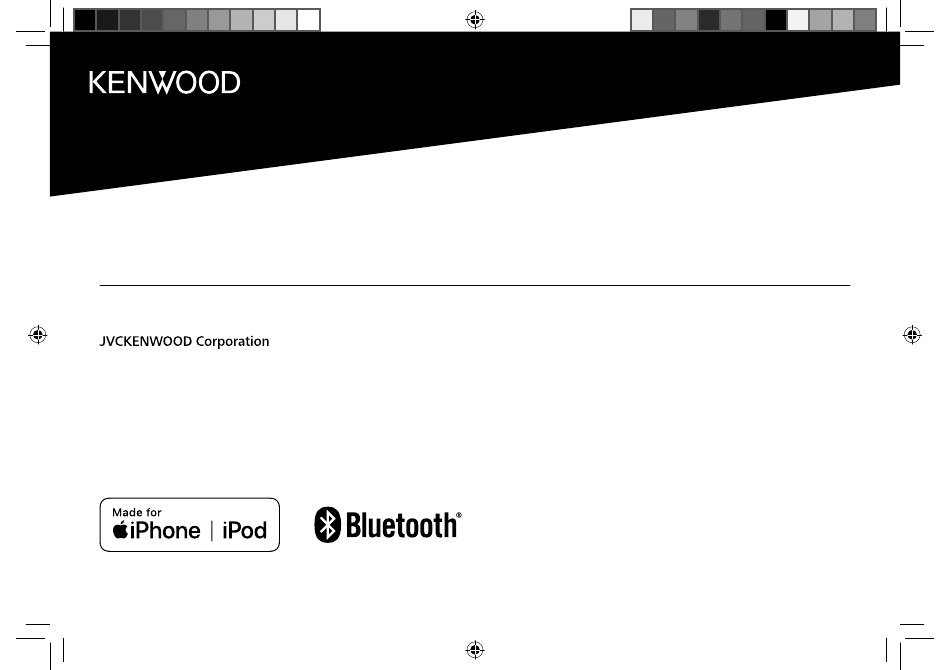

  • Page 1 KMM-BT408 KMM-BT208 DIGITAL MEDIA RECEIVER INSTRUCTION MANUAL © 2022 JVCKENWOOD Corporation B5A-3850-00 [MN] KMM_BT408_MN_B5A-3850-00_Cover.indd 1 KMM_BT408_MN_B5A-3850-00_Cover.indd 1 Data Size: B6L (182 mm x 128 mm) 1/27/2022 11:59:40 AM 1/27/2022 11:59:40 AM Book Size: B6L (182 mm x 128 mm)

  • Page 2: Table Of Contents

    Contents Before Use ....................3 Troubleshooting ..................31 Basics ......................4 Specifications ..................33 Getting Started ..................5 1 Select the display language, acknowledge the crossover type How to read this manual and cancel the demonstration • The displays and faceplates shown in this manual are examples used to provide clear explanations of the operations.

  • Page 3: Before Use

    Before Use IMPORTANT • USB rating is indicated on the main unit. To view, detach the faceplate. (Page 4) • To ensure proper use, please read through this manual before using this product. It is especially important that you read and observe Warnings and •...

  • Page 4: Basics

    Basics Faceplate Volume knob Attach Detach How to reset Reset the unit within 5 seconds after detaching the faceplate. * Only for illustration purpose. Detach button Display window* On the faceplate Turn on the power Press B SRC. • Press and hold to turn off the power. Adjust the volume Turn the volume knob.

  • Page 5: Getting Started

    Getting Started Basics Remote control (RC-406) This unit can be remotely controlled with an optionally purchased remote control. Remote sensor (Do not expose to bright sunlight.) Select the display language, acknowledge the crossover type and cancel the demonstration Pull out the insulation sheet when using for When you turn on the power for the first time (or [FACTORY RESET] is set to the first time.

  • Page 6: Set The Clock And Date

    Getting Started Turn the volume knob to select an item (see the following table), then Set the clock and date press the knob. Press the volume knob to enter [FUNCTION]. Repeat step 3 until the desired item is selected or activated. Press and hold to exit.
  • Page 7 Getting Started [SYSTEM] Change the crossover type [KEY BEEP] (Applicable only if [X’OVER] is set to [2WAY].) Press B SRC repeatedly to enter STANDBY. [ON]: Activates the keypress tone. ; [OFF]: Deactivates. Press and hold number buttons 4 and 5 to enter crossover select. The current crossover type appears.

  • Page 8: Radio

    Radio Other settings Press the volume knob to enter [FUNCTION]. Turn the volume knob to select an item (see the following table), then press the knob. Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. Press and hold to exit.

  • Page 9: Usb/Ipod

    USB/iPod Radio [TI] [ON]: Allows the unit to temporarily switch to Traffic Information if Connect a USB device available (“TI” indicator lights up) while listening to all sources except in USB input terminal AM/SW1/SW2. ; [OFF]: Cancels. USB type A cable*1 (general product) [PTY SEARCH] 1 Turn the volume knob to select the available Program Type (see the...
  • Page 10 USB/iPod Basic operations Select music drive While in USB source, press 5 repeatedly. Stored songs in the following drive will be played back. • Selected internal or external memory of a smartphone (Mass Storage Class). • Selected drive of a multiple drive device. (This unit can support multiple drive device of up to 4 drives.
  • Page 11 USB/iPod [SKIP SEARCH] setting Select a file to play Press the volume knob to enter [FUNCTION]. From a folder or list Turn the volume knob to select [USB], then press the knob. Turn the volume knob to select [SKIP SEARCH], then press the knob. Press Turn the volume knob to select the skip search ratio, then press the Turn the volume knob to select a folder/list, then press the knob.

  • Page 12: Aux

    KENWOOD Remote Application You can listen to music from a portable audio player via the auxiliary input You can control the KENWOOD car receiver from the following devices using jack. KENWOOD Remote application: : iPhone/iPod touch (via Bluetooth or via USB input terminal) Preparation: or Android device (via Bluetooth) Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT].

  • Page 13: Bluetooth

    Bluetooth® KENWOOD Remote Application Repeat step 2 until the desired item is selected/activated. • Depending on the Bluetooth version, operating system and the firmware Press and hold to exit. version of your mobile phone, Bluetooth features may not work with this unit.

  • Page 14: Bluetooth - Mobile Phone

    Press B SRC to turn on the unit. When you connect iPhone/iPod touch to the USB input terminal, pairing Search and select the name of your receiver (“KMM-BT408”/ request (via Bluetooth) is automatically activated if [AUTO PAIRING] is set to [ON].
  • Page 15 Bluetooth® The following operations may differ or be unavailable depending on the On the faceplate On the remote control connected phone. Press 6 IW during Switch between hands- ( Not available ) free and private talk a call. On the faceplate On the remote control modes*2 First incoming call...
  • Page 16 Bluetooth® Make the setting for answering a call [CALL HISTORY] (Applicable only if the phone supports PBAP.) 1 Press the volume knob to select a name or a phone number. Press to enter Bluetooth mode. • “I” indicates call received, “O“ indicates call made, “M” indicates call Turn the volume knob to select [SETTINGS], then press the knob.
  • Page 17 Bluetooth® [NUMBER DIAL] 1 Turn the volume knob to select a number (0 to 9) or character ( , #, Store a contact in memory You can store up to 6 contacts into the number buttons (1 to 6). 2 Press S / T to move the entry position. Repeat step 1 and step 2 until you finish entering the phone number.
  • Page 18 “PLEASE PAIR YOUR PHONE PIN 0000” appears on the display. Bluetooth audio device at a time. Search and select the name of your receiver (“KMM-BT408”/ [DEVICE DELETE] 1 Turn the volume knob to select a device to delete, then press the “KMM-BT208”) on the Bluetooth device.

  • Page 19: Bluetooth - Audio

    Bluetooth® Bluetooth — Audio On the faceplate • Operations and display indications may differ according to their availability Repeat play Press 4 repeatedly. on the connected device. • Depending on the connected device, some features may not work with [ALL REPEAT], [FILE REPEAT], [GROUP REPEAT], your device.

  • Page 20: Audio Settings

    Audio Settings [MANUAL EQ] Adjusts your own sound settings for each source. • The settings are stored to [USER] in [PRESET EQ]. • The settings made may affect the current settings of [EASY EQ]. [62.5HZ] [LEVEL] [LEVEL –9] to [LEVEL +9] ([LEVEL +5]): Adjusts the level to memorize for each source.
  • Page 21 Audio Settings [BASS BOOST] [LV1] to [LV5]: Selects your preferred bass boost level. ; [OFF]: Cancels. [DTA SETTINGS] For settings, see “Digital Time Alignment settings” on page 23. [LOUDNESS] [LV1]/[LV2]: Selects your preferred low or high frequencies boost to [CAR SETTINGS] produce a well-balanced sound at low volume.
  • Page 22 Audio Settings 2-way crossover setting items [SUBWOOFER [SW LPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/ LPF] [90HZ]/[100HZ]/[120HZ]/[150HZ]/[180HZ]/ [SPEAKER SIZE] [220HZ]/[250HZ]/[THROUGH] [FRONT] [SIZE] [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/ [SW LPF SLOPE] [–6DB]/[–12DB]/[–18DB]/[–24DB] [18CM]/[4×6]/[5×7]/[6×8]/[6×9]/[7×10] [SW LPF PHASE] [REVERSE] (180°)/[NORMAL] (0°) [TWEETER] [SMALL]/[MIDDLE]/[LARGE]/[NONE] (not connected) [SW LPF GAIN] [–8] to [0] [REAR] [8CM]/[10CM]/[12CM]/[13CM]/[16CM]/[17CM]/[18CM]/[4×6]/ •...
  • Page 23 Audio Settings [MID RANGE] [HPF FRQ] [30HZ]/[40HZ]/[50HZ]/[60HZ]/[70HZ]/[80HZ]/[90HZ]/ [DTA SETTINGS] [100HZ]/[120HZ]/[150HZ]/[180HZ]/[220HZ]/[250HZ]/ [POSITION] Selects your listening position (reference point). [THROUGH] [ALL]: Not compensating ; [FRONT RIGHT]: Front right seat ; [HPF SLOPE] [–6DB]/[–12DB] [FRONT LEFT]: Front left seat ; [FRONT ALL]: Front seats •...

  • Page 24: Display Settings

    Display Settings Audio Settings Zone identification for color settings and brightness settings – : [SUBWOOFER] is selectable only when [SWITCH PREOUT] is set to [SUB-W] (page 6) and [SUBWOOFER SET] is set to [ON]. (Page 21) When 3-way crossover is selected: [TWEETER LEFT]/[TWEETER RIGHT]/[MID LEFT]/[MID RIGHT]/[WOOFER] –...
  • Page 25 Display Settings Change the display settings [BRIGHTNESS] Sets the brightness for day and night separately. 1 [DAY]/[NIGHT]: Select day or night. Press the volume knob to enter [FUNCTION]. 2 Select a zone. (See the illustration on page 24.) Turn the volume knob to select an item (see the following table), then 3 [LVL00] to [LVL31]: Set the brightness level.

  • Page 26: Installation/Connection

    Installation/Connection Part list for installation This section is for the professional installer. For safety’s sake, leave wiring and mounting to professionals. Consult the (A) Faceplate (×1) (B) Trim plate (×1) car audio dealer. WARNING • The unit can only be used with a 12 V DC power supply, negative ground. •...
  • Page 27 Installation/Connection Installing the unit (in-dash mounting) Installing the unit (without mounting sleeve) Remove the mounting sleeve and trim plate from the unit. Align the holes in the unit (on both sides) with the vehicle mounting bracket and secure the unit with screws (supplied). Use only the specified screws.
  • Page 28 Installation/Connection Wiring connection IMPORTANT We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to professionals for your safety. Consult your car audio dealer. Fuse (10 A) Antenna terminal White To front speaker (left)/ If no connections are made, do not let the wire come out from the tab.

  • Page 29: References

    References Installation/Connection Connect external components Maintenance Cleaning the unit Wipe off dirt on the faceplate with a dry silicone or soft cloth. Cleaning the connector Detach the faceplate and clean the connector gently with a cotton swab. Be careful not to damage the connector.
  • Page 30 References About iPod/iPhone Source name Display information: Main display • Made for iPod USB/iPod BT Song title/Artist Album title/Artist Playing time Date back to – iPod touch (6th generation) the beginning – iPhone 5S, 6, 6 Plus, 6S, 6S Plus, SE, 7, 7 Plus, 8, 8 Plus, X, XS, XS MAX, XR, 11, 11 Pro, 11 Pro MAX, SE (2nd generation), 12, 12 Mini, 12 Pro, 12 Pro MAX BT AUDIO Song title/Artist...

  • Page 31: Troubleshooting

    Troubleshooting Symptom Remedy Symptom Remedy Sound cannot be heard. • Adjust the volume to the optimum level. “READING” keeps flashing. • Do not use too many hierarchical levels and folders. • Check the cords and connections. • Reattach the device (USB/iPod/iPhone). “MISWIRING CHECK WIRING Turn the power off, then check to be sure the terminals of “UNSUPPORTED DEVICE”...
  • Page 32 Troubleshooting Symptom Remedy Symptom Remedy “NO MUSIC” Connect a device (USB/iPod/iPhone) that contains Sound is being interrupted or • Reduce the distance between the unit and the Bluetooth playable audio files. skipped during playback of a audio player. Bluetooth audio player. •...

  • Page 33: Specifications

    Specifications Frequency Range 87.5 MHz — 108.0 MHz (50 kHz step) Frequency Response (±1 dB) 20 Hz — 20 kHz Usable Sensitivity 8.2 dBf (0.71 μV/75 Ω) Signal-to-Noise Ratio (1 kHz) 98 dB (S/N = 30 dB) Dynamic Range 93 dB Quieting Sensitivity 17.2 dBf (2.0 μV/75 Ω) Channel Separation...
  • Page 34 Specifications Maximum Output Power 50 W × 4 • Windows Media is a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. Full Bandwidth Power 22 W × 4 This product is protected by certain intellectual property rights of Microsoft. Use or distribution of (at less than 1 % THD) such technology outside of this product is prohibited without a license from Microsoft.
  • Page 35 önlerken kaynakların korunmasına da yardımcı olacaktır. Amsterdamseweg 37, 1422 AC UITHOORN, THE NETHERLANDS English Hereby, JVCKENWOOD declares that the radio equipment “KMM-BT408/KMM-BT208” is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.kenwood.com/euukdoc/...
  • Page 36 SOFTWARE LICENSE AGREEMENT Article 4 Right pertaining to the Licensed Software Any and all copyrights and other rights pertaining to the Licensed Software and related documents The software embedded in the Product (hereinafter the "Licensed Software") provided by Licensor is shall belong to the Licensor or the original holder of the right who granted to the Licensor the license or copyrighted to or sublicensable by the Licensor, and this Agreement provides for the terms and conditions sublicense for the Licensed Software (hereinafter the "Original Rightholder"), and the User shall not be...
  • Page 37 Important Notice concerning the Software Article 9 Destruction of the Licensed Software If this Agreement is terminated pursuant to the provision of Article 8, the User shall destroy the Licensed -jansson Software, any related documents and copies thereof within two (2) weeks from such date of termination. Copyright (c) 2009-2012 Petri Lehtinen <petri@digip.org>...
  • Page 38 -CMP sha2 AUTHOR: Aaron D. Gifford - http://www.aarongifford.com/ The MIT License (MIT) Copyright (c) 2014 Charles Gunyon Copyright (c) 2000-2001, Aaron D. Gifford All rights reserved. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and associated documentation files (the "Software"), to deal in the Software without restriction, including without You may obtain a copy of the license at limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the...
  • Page 39 Copyright (c) 1995, 1996 Carnegie-Mellon University. All rights reserved. T-Kernel 2.0 This product uses the source code of T-Kernel 2.0 under T-License 2.0 granted by T-Engine Forum Author: Chris G. Demetriou (www.tron.org) Permission to use, copy, modify and distribute this software and its documentation is hereby granted, BSD-3-Clause provided that both the copyright notice and this permission notice appear in all copies of the software, Copyright (c) 2000-2001, Aaron D.
