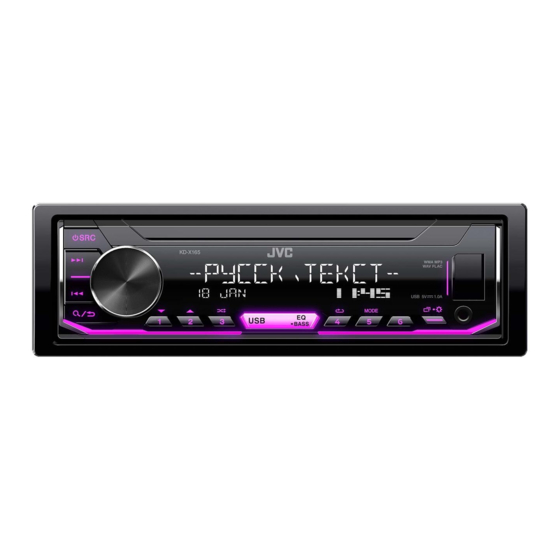

- Page 1 РУCCKИЙ KD-X165 / KD-X163 ЦИФРОВОЙ МЕДИА-РЕСИВЕР ИHCTPУKЦИЯ ПO ЭKCПЛУATAЦИИ B5A-2625-00 [Q] JS_JVC_KD_X165_Q_C.indd 1 JS_JVC_KD_X165_Q_C.indd 1 20/6/2018 11:39:45 AM 20/6/2018 11:39:45 AM Data Size: B6L (182 mm x 128 mm) Book Size: B6L (182 mm x 128 mm)
- Page 2 “KD-X165/KD-X163” está em conformidade com a Дополнительные косметические материалы к данному товару, поставляемые radio « KD-X165/KD-X163 » est conforme à la directive Diretiva 2014/53/UE. вместе с ним, могут храниться в течение двух (2) лет со дня его производства.
- Page 3 “KD-X165/KD-X163” u skladu s Direktivom S tem JVCKENWOOD izjavlja, da je radijska „KD-X165/KD-X163“ raadiovarustus on vastavuses 2014/53/EU. радиооборудование «KD-X165/KD-X163» oprema »KD-X165/KD-X163« v skladu z Direktivo direktiiviga 2014/53/EL. Cjeloviti tekst deklaracije Europske unije o соответствует Директиве 2014/53/EU. 2014/53/EU. ELi vastavusdeklaratsiooni terviktekst on usklađenosti dostupan je na sljedećoj internet...
-
Page 4: Table Of Contents
SPECIFICATIONS How to read this manual • Operations are explained mainly using buttons on the faceplate of KD-X165. • English indications are used for the purpose of explanation. You can select the display language from the menu. (Page 5) • [XX] indicates the selected items. -
Page 5: Basics
BASICS Faceplate Attach Volume knob Display window Detach How to reset Your preset adjustments will be erased except stored radio stations. Detach button On the faceplate Turn on the power Press B SRC. • Press and hold to turn off the power. Adjust the volume Turn the volume knob. -
Page 6: Getting Started
GETTING STARTED To return to the previous setting item, press Set the basic settings Press and hold Turn the volume knob to select an item (see the following table), then press the knob. Repeat step 2 until the desired item is selected or activated. Cancel the demonstration Press to exit. -
Page 7: Radio
RADIO GETTING STARTED [CLOCK] [TIME SYNC] [ON]: The clock time is automatically set using the Clock Time (CT) data in FM Radio Data System signal. ; [OFF]: Cancels. [CLOCK [ON]: The clock time is shown on the DISPLAY] display even when the unit is turned off. ; [OFF]: Cancels. - Page 8 RADIO Other settings [IF BAND] [AUTO]: Increases the tuner selectivity to reduce interference noises from adjacent FM/FM-LO stations. (Stereo effect may be lost.) ; [WIDE]: Subjects Press and hold to interference noises from adjacent FM/FM-LO stations, but sound quality Turn the volume knob to select an item (see the following table), then will not be degraded and the stereo effect will remain.
-
Page 9: Aux
USB/ANDROID Preparation: Start playback You can listen to music from a portable audio player via the auxiliary input jack. The source changes automatically and playback starts. • Select [ON] for [BUILT-IN AUX] in [SOURCE SELECT]. (Page 4) USB input terminal Start listening Connect a portable audio player (commercially available). - Page 10 USB/ANDROID Select music drive While in USB source, press 5 MODE repeatedly. Stored songs in the following drive will be played back. • Selected internal or external memory of a smartphone (Mass Storage Class). • Selected drive of a multiple drive device. •...
-
Page 11: Audio Settings
AUDIO SETTINGS Other settings Press and hold Turn the volume knob to select an item (see the following table), then press the knob. Repeat step 2 until the desired item is selected/activated or follow the instructions stated on the selected item. Press to exit. - Page 12 AUDIO SETTINGS [PRO EQ] Adjusts your own sound settings. [SUBWOOFER SET]*3 [ON]: Turns on the subwoofer output. ; [OFF]: Cancels. • The settings are stored to [USER] in [PRESET EQ]. [SUBWOOFER LPF]*1 [FRQ THROUGH]: All signals are sent to the subwoofer. ; •...
-
Page 13: Display Settings
DISPLAY SETTINGS AUDIO SETTINGS Zone identification for brightness settings Speaker output settings [SPK/PRE OUT] Select the output setting for the speakers [SPK/PRE OUT], based on the speaker connection method. Connection via lineout terminals For connections through an external amplifier. (Page 17) Audio signal through lineout terminal Setting on Press and hold... - Page 14 DISPLAY SETTINGS [BRIGHTNESS] Sets the brightness for day and night separately. [COLOR] (for KD-X165) 1 [DAY]/[NIGHT]: Select day or night. 2 Select a zone. (See the illustration on page 11.) 3 [LEVEL 00] to [LEVEL 31]: Set the brightness level. [TEXT SCROLL]*2 [SCROLL ONCE]: Scrolls the display information once. ;...
-
Page 15: References
REFERENCES Maintenance Change the display information (for KD-X165) Cleaning the unit Each time you press , the display information changes. • If the information is unavailable or not recorded, “NO TEXT”, “NO NAME”, or other information Wipe off dirt on the faceplate with a dry silicone or soft cloth. -
Page 16: Troubleshooting
TROUBLESHOOTING REFERENCES Change the display information (for KD-X163) Symptom Remedy Each time you press , the display information changes. Sound cannot be heard. • Adjust the volume to the optimum level. • If the information is unavailable or not recorded, “NO TEXT”, “NO NAME”, or other information •... -
Page 17: Installation/Connection
INSTALLATION/CONNECTION TROUBLESHOOTING Warning Symptom Remedy • The unit can only be used with a 12 V DC power supply, negative ground. “CANNOT PLAY” flashes and/ • Check whether the connected device is compatible with • Disconnect the battery’s negative terminal before wiring and mounting. or connected device cannot this unit and ensure the files are in supported formats. - Page 18 INSTALLATION/CONNECTION Part list for installation Installing the unit (in-dash mounting) (A) Faceplate (×1) (B) Trim plate (×1) Do the required wiring. (Page 17) Hook on the top side (C) Mounting sleeve (×1) (D) Wiring harness (×1) Orientate the trim Dashboard of plate as illustrated your car before fitting.
- Page 19 INSTALLATION/CONNECTION Wiring connection Rear/subwoofer output When connecting to an external amplifier, connect its ground wire to the car’s chassis to avoid damaging the unit. Antenna terminal Fuse (10 A) Connecting the ISO connectors on some VW/ Yellow (Battery wire) Audi or Opel (Vauxhall) automobiles Light blue/yellow To the steering wheel remote control adapter You may need to modify the wiring of the supplied wiring...
-
Page 20: Specifications
SPECIFICATIONS Frequency Range WAV Decode Linear-PCM 87.5 MHz — 108.0 MHz(50 kHz step) FLAC Decode FLAC files, up to 16 bit/48 kHz FM-LO: 65.0 MHz — 74.0 MHz (30 kHz step) Frequency Response (±3 dB) 20 Hz — 20 kHz Usable Sensitivity (S/N = 26 dB) 0.71 μV/75 Ω... - Page 21 JS_JVC_KD_X165_Q_ENRef_1st.indd 19 JS_JVC_KD_X165_Q_ENRef_1st.indd 19 20/6/2018 2:16:19 PM 20/6/2018 2:16:19 PM...
- Page 22 JS_JVC_KD_X165_Q_ENRef_1st.indd 20 JS_JVC_KD_X165_Q_ENRef_1st.indd 20 20/6/2018 2:16:19 PM 20/6/2018 2:16:19 PM...
- Page 23 JS_JVC_KD_X165_Q_ENRef_1st.indd 21 JS_JVC_KD_X165_Q_ENRef_1st.indd 21 20/6/2018 2:16:19 PM 20/6/2018 2:16:19 PM...
- Page 24 SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. • Microsoft and Windows Media are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. • Android is a trademark of Google LLC. © 2018 JVC KENWOOD Corporation 0818DTSMDTJEIN JS_JVC_KD_X165_Q_C.indd 1 JS_JVC_KD_X165_Q_C.indd 1...
