HOLLY&MARTIN BC060100TX Assembly Instructions Manual

HOLLY&MARTIN BC060100TX Assembly Instructions Manual

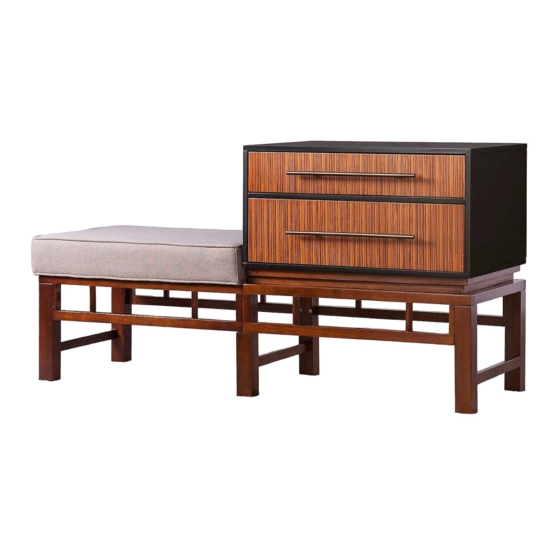

Brock storage bench

Advertisement

Quick Links

BC060100TX
Brock Storage Bench
Holly & Martin®, a valued brand of SEI
Customer Service
1-800-633-5096
Assembly Instructions
service@hollyandmartin.com
www.hollyandmartin.com
PO:

Advertisement

loading
Need help?

Need help?

Do you have a question about the BC060100TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for HOLLY&MARTIN BC060100TX

  • Page 1 BC060100TX Brock Storage Bench Holly & Martin®, a valued brand of SEI Customer Service 1-800-633-5096 Assembly Instructions service@hollyandmartin.com www.hollyandmartin.com...
  • Page 2 Brock Storage Bench Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or a blanket. Check that you have all parts indicated. Call customer service if any hardware is missing.
  • Page 3 Quantity Quantity of 28 of 1 Flat Washer Allen Wrench Quantity of 28 Sticker cover Quantity Quantity Quantity of 1 of 1 of 1 Left Side Frame Left Back Frame Middle Frame Quantity Quantity Quantity of 1 of 1 of 1 Right Back Frame Right Side Frame Left Front Frame...
  • Page 4 Quantity Quantity Quantity of 1 of 1 of 1 Top Panel Bottom Panel Back Panel Quantity Quantity Quantity of 1 of 1 of 1 Small Drawer Face Drawer Right Wall Drawer Back Wall Quantity Quantity Quantity of 1 of 1 of 1 Drawer Left Wall Large Drawer Face...
  • Page 5 Brock Storage Bench Assembly Instructions Attach Left Back Frame (2) to Right Back Frame (4) using Bolts (I), Spring Washers (J), and Flat Washers (K). Tighten Bolts (I) with Allen Wrench (L). Attach Left Front Frame (6) to Right Front Frame (7) using Bolts (I), Spring Washers (J), and Flat Washers (K).
  • Page 6 Attach assembled unit from Figure 1 to Left Side Frame (1), Middle Frame (3), and Right Side Frame (5) using Bolts (I), Spring Washers (J), and Flat Washers (K). Tighten Bolts (I) with Allen Wrench (L). Cover all bolt holes with Sticker Covers (M) .
  • Page 7 Insert Cam Locks (C) into holes on Fixed Shelf (12). Screw Cam Bolts (B) into holes on Left Side Panel (10) and Right Side Panel (11). Attach Left Side Panel (10) and Right Side Panel (11) to Fixed Shelf (12) by inserting Wood Dowels (A) and Cam Bolts (B into corresponding holes until all panels meet.
  • Page 8 Insert Cam Locks (C) into holes on Left Side Panel (10) and Right Side Panel (11). Screw Cam Bolts (B) into holes on Bottom Panel (14). Attach Left Side Panel (10) and Right Side Panel (11) to Bottom Panel (14) by inserting Wood Dowels (A) and Cam Bolts (B) into corresponding holes until all panels meet.
  • Page 9 Attach assembled unit from Figure 6 to assembled unit from Figure 3 by inserting Wood Dowels (A), Bolts (I), Spring Washers (J), and Flat Washers (K). Tighten Bolts (I) with Allen Wrench (L). Cover bolt holes with Sticker Covers (M). Figure 7 Attach Cushion (9) to assembled unit from Figure 7 with Screws (D).
  • Page 10 Attach Drawer Right Wall (17) and Drawer Left Wall (19) to Drawer Back Wall (18) with Machine Screws (H). Tighten Machine Screws (H) with Phillips screwdriver (not included). Slide Drawer Bottom Panel (24) into the grooves of Drawer Panels. Attach Small Drawer Face (16) to Drawer Right Wall (17), Drawer Left Wall (19) and Drawer Bottom Panel (24) with Machine Screws (H).
  • Page 11 Attach assembled drawers into assembled unit. Make sure drawers smoothly slide in and out. Figure 11 Now your Brock Storage Bench is ready to use. Figure 12...
  • Page 12: Parts Replacement Form

    Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
