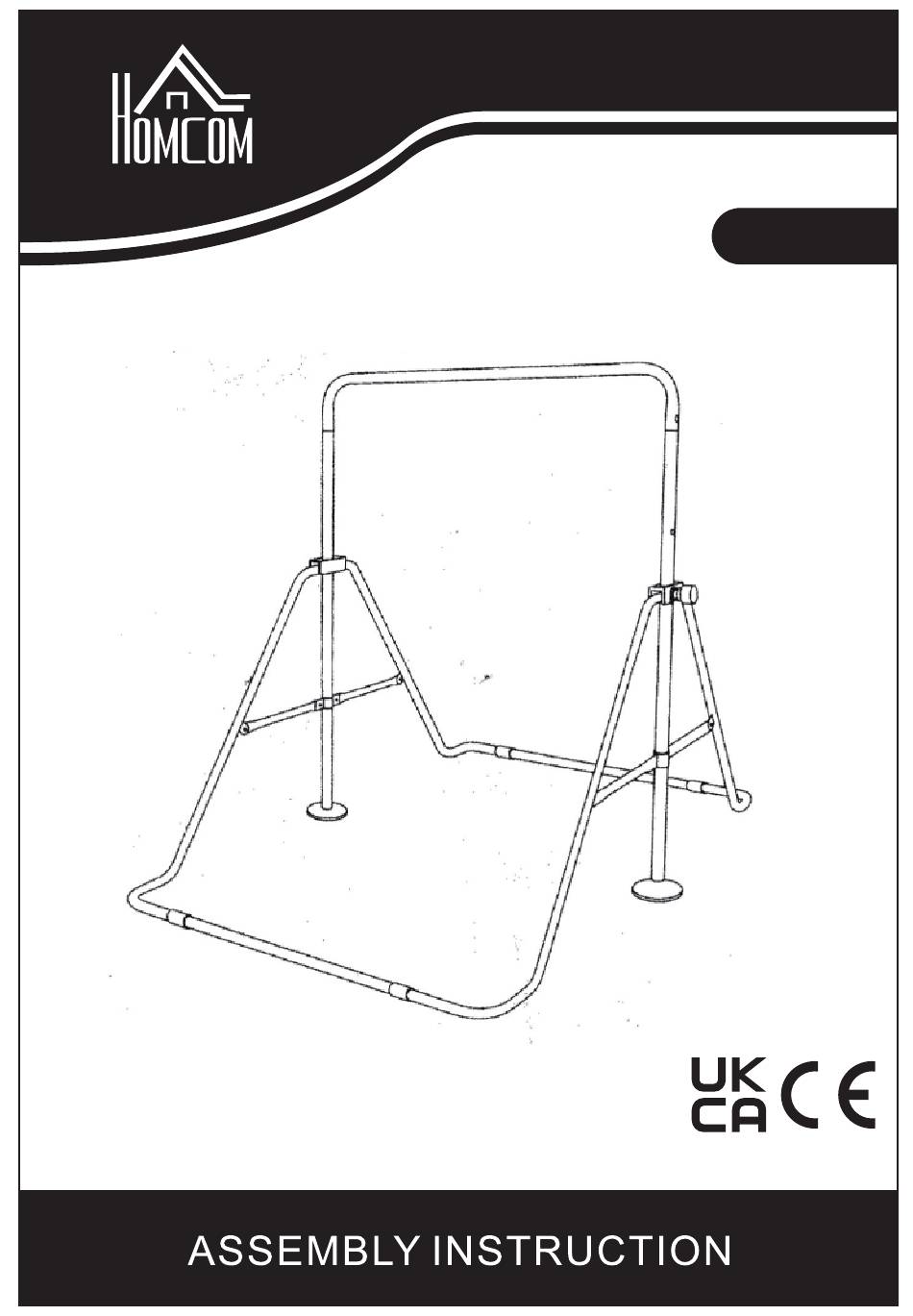

- Page 1 INffa070_UK 340-005 Assembly instructions ● Please check if there are any omissions in the instructions ● Please pay attention to the precautionswhen assembling IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY...
- Page 2 ● Accessory name Knob: 2pcs Adjustment disc: 2pcs Main shelf: 2parts Adjustment lever: 2pcs Single lever: 1pcs Base lever: 2pcs Scerw: 10pcs+spare 1pc...
- Page 3 ● Accessory name Grip of the horizontal bar Tighten the knob Tighten the knob Adjusting lever Base lever Safety folding lever Adjustment disc Base lever ● Way of assembly To ensure safety, it is recommended that 2 people assemble at the same time. Safety port Safety folding lever Adjustment disc...
- Page 4 ● Way of assembly Connect the knob and tighten Tighten the knob Tighten the knob Base lever Main shelf Main shelf Base lever Base lever lmportant: In the direction of the main lever, the tightening knob needs to face the outside, otherwise the horizontal lever cannot be installed with screws.
- Page 5 ● Way of assembly Adjusting lever Tighten the knob When adjusting, first loosen the knob (the adjusting rod can rotate freely), then insert the adjusting rod (as shown in the figure), and turn the knob backward until it can adjust up and down. After the adjustment is completed, tighten the knob.
- Page 6 ● Way of assembly Adjustment guidelines Level of adjustment Visual tick mark Loosen the knob first, put the adjusting lever into a suitable height and tighten it. Grip of the horizontal lever Adjusting lever The grip of the horizonta lever is combined with the adjustment bar and locked with screws Note: The adjustment knob needs to face outwards, if the adjustment knob faces inward, there will be no corresponding holes.
- Page 7 ● Height adjustment Left and right adjustment knobs: Loosen the knobs on the 2 sides first, when the adjustment lever can be turned, you can adjust the height, and then tighten the knob. After the adjustment on both sides is at the same height level (there is a scale line on the adjustment rod, and the scale line shall prevail), after the adjustment rods on both sides are raised to the same height at the same time, tighten the knob.
- Page 8 ● Way of folding Safety folding lever Base lever Hold the safety folding lever with both hands at the same time, and pull upwards, the equip- ment can be folded and closed, as shown in the figure...
