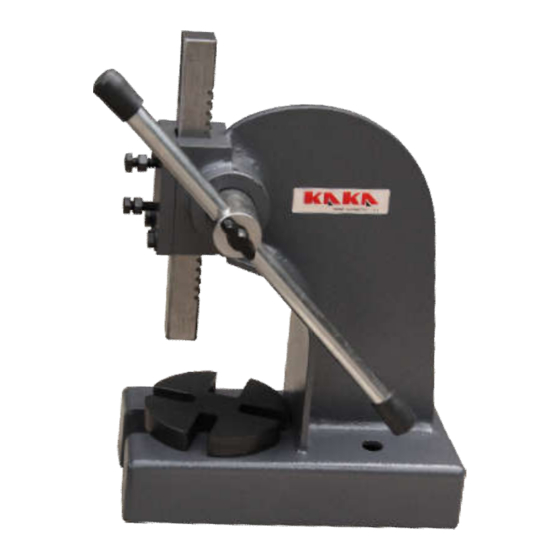

Operation Manual
KAKA
Specifications
Model................................................AP-2
Stock No. ......................................176503
Capacity........................................ 2.0 ton
Max.
opening................................195
mm
Deep Throat.................................145 mm
Worktable diameter.................
Ram Square.............................32×32 mm
Packing Size................ 460x190x480 mm
N.W./G.W.
...................................32/33
kg
Unpacking
The ARBOR PRESS is shipped from the
manufacture in a carefully packed Carton
box. Thoroughly inspect the product upon
opening the package. After unpacking the
unit, carefully inspect for any damage that
may have occurred during transit.
®
Industrial
⌀155
If
damage
damage claims must be filed with the
carrier and are the responsibility of the
user.
Check for completeness. Immediately
report missing parts to dealer.
Carefully open crate and unbolt brake
from shipping pallet and remove from
crate using heavy duty lifting equipment
such as an overhead crane.
Warning
The warnings, cautions and instructions
discussed in this instructions or situations
that could occur. It must be understood by
the operator that common sense and
caution are factors which cannot be built
into this product, but must be supplied by
the operator.
SAVE THIS MANUAL
You will need this manual for the safety
instruction,assembly
operating procedures, parts list, and
diagram. Write your invoice number on
the inside front cover. Put both your
manual and invoice in a safe, dry place for
future reference.
- 1 -
has
occurred,
instruction,
AP-2
shipping

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for KAKA Industrial AP-2

  • Page 1 Operation Manual AP-2 ® KAKA Industrial Specifications damage occurred, shipping Model..........AP-2 damage claims must be filed with the Stock No........176503 carrier and are the responsibility of the Capacity........2.0 ton user. Max. opening........195 Check for completeness. Immediately report missing parts to dealer.
  • Page 2 Operation Manual AP-2 Model AP-2 - 2 -...
  • Page 3: Maintain Tools With Care

    Operation Manual AP-2 ® KAKA Industrial when working. Wear protective hair IMPORTANT SAFELY covering to contain long hair, preventing it PRECAUTIONS from getting caught in machinery. READ ALL INSTRUCTIONS BEFORE 8. USE EYE PROTECTION. Wear ISO USING THIS TOOL. approved impact goggles.
  • Page 4 Operation Manual AP-2 Model AP-2 determine that it will operate properly and 19. NEVER USE A TOOL IF ITS COVER perform its intended function. Check for OR ANY BOLTS ARE MISSING. If the alignment of moving parts, binging of cover or bolts have been removed,...
  • Page 5: Parts List

    Operation Manual AP-2 ® KAKA Industrial damaged according to the parts list or 2.2.3 Keep proper footing and your PARTS LIST Part No. Description Part No. Description Body Work table Sleeve Conical pin Screw Screw M8X25 Nut M10 Gear Bolt M10x35...
  • Page 6 Operation Manual AP-2 Model AP-2 4. Lubricate the machine every day. - 6 -...
  • Page 7 Operation Manual AP-2 Diagram: - 7 -...
  • Page 8 Operation Manual AP-2 Model AP-2 NOTES - 8 -...
  • Page 9: Service Record

    Operation Manual AP-2 SERVICE RECORD ® KAKA Industrial Date Maintenance performed Repair components require - 9 -...
  • Page 10 Edition 1 01/2018 Copyright 2018 KAKA © If you have any questions about the use of this product, please contact the nearest one to you as below: KAKA INDUSTRIAL LLC KAKA INDUSTRIAL LTD. KANG INDUSTRIAL PTY LTD Mail: Mail: Mail: info@kakaindustrial.com...
