KAKA Industrial MMS-4 Abbreviated Operation Manual

Operation Manual
KAKA Industrial
Unpacking
The 4" THROATLESS SHEAR is shipped from
the manufacturer in a carefully packed Carton
box. Thoroughly inspect the product upon
opening the package.
After unpacking the unit, carefully inspect for
any damage that may have occurred during
transit. Check for loose, missing, or damaged
parts. Shipping damage claims must be filed
with the carrier and are the responsibility of
the user.
Specifications

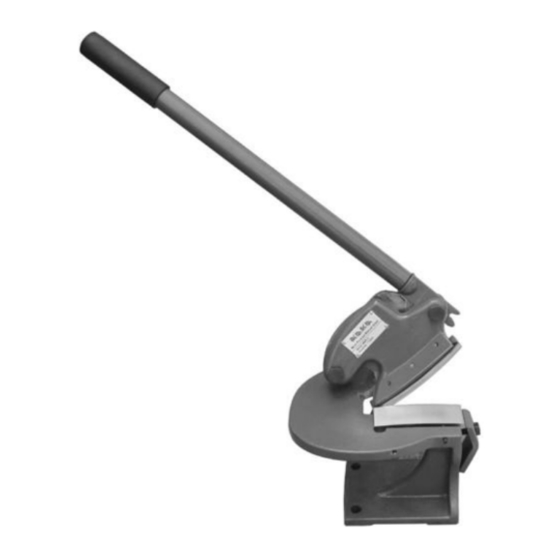

Your KAKA 4" THROATLESS SHEAR for
metal cutting is precision designed and
manufactured to allow precise control when
making straight or intricately curved cuts of
any length, in any direction. Hardened, finely
honed blades produce clean, burr-free cuts in
aluminum, steel and other mild metals.
The gear-driven design delivers maximum
shearing power with minimal handle force.
Stock No. ............................................172504
Model....................................................MMS-4
Max. Capacity Mild Steel............14 Ga. (2.0 mm)
Max. Capacity Staintess Steel......18 Ga. (1.2 mm)
Width..........................................2.76" (70 mm)
Packing size.........20"x13"x9" (51X33X22 cm)
N.W./G.W..........................16/17 lbs (7/8 kg)
Important
Blades are coasted with a protectant. To
ensure proper fit and operation, remove
coating. Coating is easily removed with mild
solvents, such as mineral spirits, and a soft
cloth. Avoid getting cleaning solution on paint
or any of the rubber or plastic parts. Solvents
may deteriorate these finishes. Use soap and
water on paint, plastic or rubber components.
After cleaning, cover all exposed surfaces with
a light coating of oil.
WARNING
Never use highly volatile solvents.
Non-flammable solvents are recommended
to avoid possible fire hazard.
SAVE THESE INSTRUCTIONS
Thank you for purchasing our MMS-4
4 " t h r o a t l e s s s h e a r m a c h i n e . B e f o r e
attempting to operate your new tool please
read these instructions thoroughly. You
will need these instructions for the safety
warnings, precautions, assembly, operation,
maintenance procedures, parts list and
diagrams. Keep your invoice number with
these instructions. Write the invoice number
on the inside of front cover. Keep the
instructions and invoice in a safe, dry place for
future reference.
General Safety Information
CAUTION
Always follow proper operating procedures
as defined in this manual even if you are
familiar with use of this or similar tools.
Remember that being careless for even a
fraction of a second can result in severe
personal injury.
— 1 —
®
MMS-4
