KAKA Industrial HSG-8 Operation Manual

Operation Manual
KAKA Industrial
Unpacking
The Hand Shear is shipped from the
manufacturer in a carefully packed Carton
box. Thoroughly inspect the product upon
opening the package.
After unpacking the unit, carefully inspect for
any damage that may have occurred during
transit. Check for loose, missing, or damaged
parts. Shipping damage claims must be filed
with the carrier and are the responsibility of
the user.

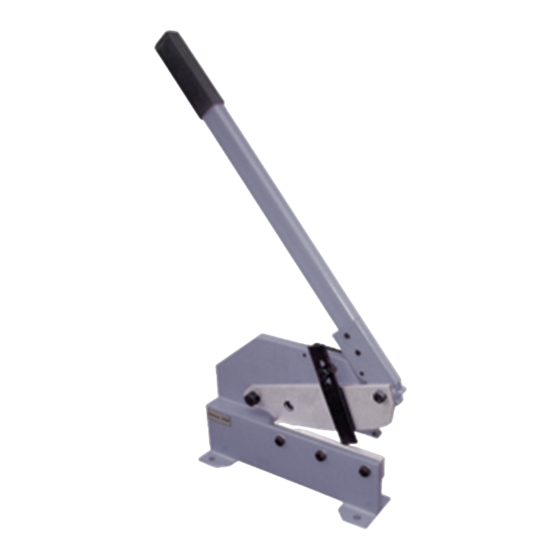

Specifications
Stock No. .............................................172303
Model.....................................................HSG-8
Blade length..................................8" (203 mm)
Plate steel....................................0.24" (6 mm)
Flat steel......................2.76"x0.24" (70x6 mm)
Round steel...............................0.51" (13 mm)
Packing size...........20"x6"x18" (50x15x45 cm)
N.W/G.W. .........................42/44 lbs (19/20 kg)
Important:
Blades are coasted with a protectant. To
ensure proper fit and operation, remove
coating. Coating is easily removed with mild
solvents, such as mineral spirits, and a soft
cloth. Avoid getting cleaning solution on paint
or any of the rubber or plastic parts. Solvents
may deteriorate these finishes. Use soap and
water on paint, plastic or rubber components.
After cleaning, cover all exposed surfaces with
a light coating of oil.
WARNING
Never use highly volatile solvents.
Non-flammable solvents are recommended
to avoid possible fire hazard.
SAVE THESE INSTRUCTIONS
Thank you for purchasing our HSG-8 Hand
Shear. Before attempting to operate your
new tool please read these instructions
thoroughly. You will need these instructions for
the safety warnings, precautions, assembly,
operation, maintenance procedures, parts
list and diagrams. Keep your invoice number
with these instructions. Write the invoice
number on the inside of front cover. Keep the
instructions and invoice in a safe, dry place for
future reference.
General Safety Information
CAUTION
Always follow proper operating procedures
as defined in this manual even if you are
familiar with use of this or similar tools.
Remember that being careless for even a
fraction of a second can result in severe
personal injury.
SAFETY RULES
1. Wear proper apparel. Do not wear loose
clothing, gloves, neckties, rings, bracelets or
other jewelry which may get caught in moving
parts of machine.
2. Wear protective hair covering to contain
long hair.
3. Wear safety shoes with non-slip soles.
4. Wear safety glasses complying with United
States ANSI Z87.1.
— 1 —
®
HSG-8
