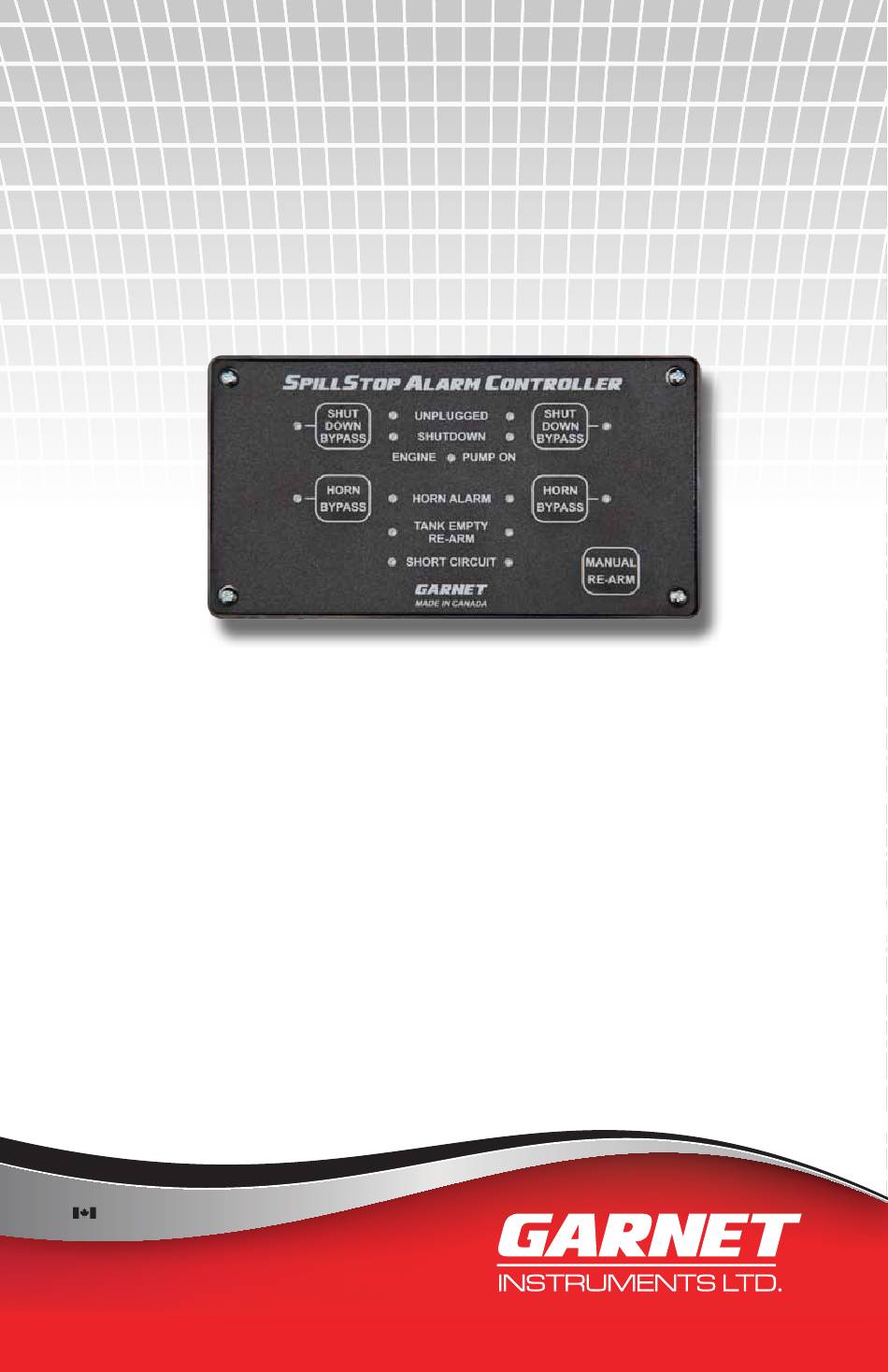

- Page 1 PILL Overfill Prevention System MODEL 815 MANUAL Printed in Canada www.garnetinstruments.com 815 Manual Page 1...
-
Page 2: Table Of Contents
GARNET PILL Overfill Prevention System MODEL 815 MANUAL Table of Contents CHAPTER 1 - OVERVIEW ..............3 CHAPTER 2 - FEATURES AND OPERATION ......... 4 CHAPTER 3 - INSTALLATION GUIDE ........... 7 CHAPTER 4 - WIRING DIAGRAMS ............11 CHAPTER 5 - TROUBLESHOOTING GUIDE ......... 12 CHAPTER 6 - SERVICE AND WARRANTY INFORMATION .... -
Page 3: Chapter 1 - Overview
CHAPTER 1 - OVERVIEW ongratulations on purchasing the Garnet Instruments Model 815 S overfill prevention system. The SpillStop PILL represents the state of the art in spill control for crude oil and chemical hauling. The SpillStop is designed to work in conjunction with the Garnet Model S ™... -
Page 4: Chapter 2 - Features And Operation

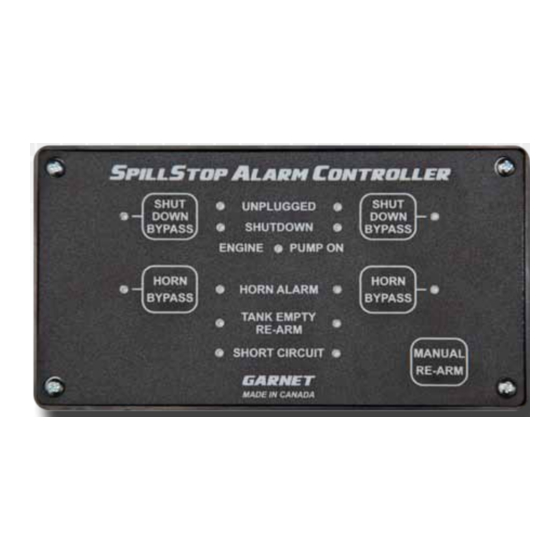

RE-ARM SHORT CIRCUIT MANUAL RE-ARM GARNET MADE IN CANADA The SpillStop consists of three main components: the controller in the cab of the truck, the optional plug module inside the 7 pin socket housing on the trailer, and the gauge module inside the SeeLeveL truck gauge (the gauge module is built into the 808P2 and 810PS2 displays). - Page 5 WARNING: The S is intended as an emergency PILL backup system only, and is not intended as a substitute for operator diligence during the loading process. The operation of the SpillStop during the loading operation is as follows: When the tank is empty, the green TANK EMPTY indicator is on, the horn is off, and the engine is allowed to run.
- Page 6 plug modules cannot be damaged by short circuits or by plugging the trailer light plug into the SpillStop socket. The controller will operate at truck voltages from 8 to 16 volts, and draws less than 1/4 amp so it can operate from any convenient 12 volt circuit. Page 6 815 Manual...
-
Page 7: Chapter 3 - Installation Guide
CHAPTER 3 - INSTALLATION GUIDE efer to the appropriate wiring diagram during installation of the SpillStop system. The wiring diagrams are in section D). 1. Pick a spot in the cab of the truck for the SpillStop controller box to be mounted. Do not mount the controller where it can be kicked. - Page 8 4. Mount the SpillStop indicator light (not supplied -- use a standard clearance light) in a convenient location. Label the indicator as an equipment monitoring light. 5. Route a single wire from each gauge to the socket housing. Connect the gauge end of this wire to the wire coming out of the gauge module.
- Page 9 2. Make sure that the gauge(s) are well grounded to the same ground as the controller. Follow these instructions for all installations: 1. Connect the wire from each gauge module to the corresponding compartment terminal on the back of the controller.
- Page 10 Example: The tank is 58 inches high, with a bottom reading of 4.6 inches. Suggested points would be alarm #1 at 55 inches, alarm #2 at 53 inches, and alarm #3 at 6 inches. WARNING: To properly determine the ESD point, raise the SeeLeveL float to the top of the tank, and then lower the float by at least one inch.
-
Page 11: Chapter 4 - Wiring Diagrams
CHAPTER 4 - WIRING DIAGRAMS 815 Manual Page 11... -
Page 12: Chapter 5 - Troubleshooting Guide
CHAPTER 5 - TROUBLESHOOTING GUIDE F problems are encountered, check the following: 1. Is the controller getting at least 8 volts? 2. Are all the wires properly connected, with no short circuits? 3. Are the 808P2 or 810PS2 SeeLeveL gauges working properly? 4. -
Page 13: Chapter 6 - Service And Warranty Information
Garnet or an Authorized Dealer. The warranty period will start from the date of purchase or installation as indicated on the warranty card. Under these warranties, Garnet shall be responsible only for actual loss or damage suffered and then only to the extent of Garnet’s invoiced price of the product. -
Page 15: Mail In Warranty
MAIL IN WARRANTY... - Page 18 Printed in Canada CANADA Garnet Instruments Ltd. Garnet Technologies Inc. P: 780-467-1010 P: 817-578-8601 286 Kaska Road 201 M&M Ranch Road F: 780-467-1567 F: 817-573-0005 www.garnetinstruments.com Sherwood Park, AB T8A 4G7 Granbury, TX 76049 TF: 1-800-617-7384 TF: 1-877-668-7813...
