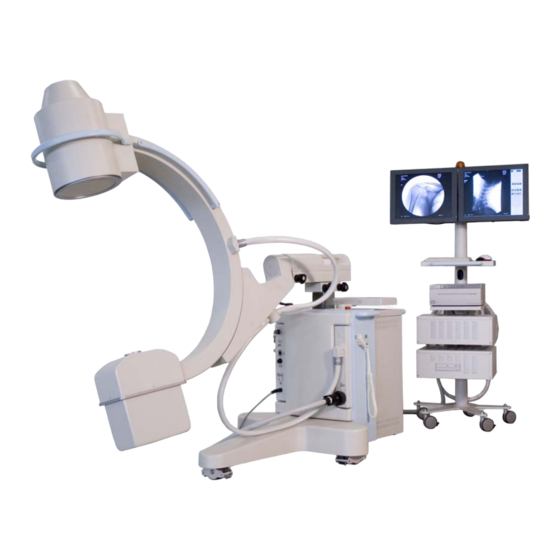

Villa Sistemi Medicali Arcovis 3000 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Revision: G
Version: May 26, 2010
U
s
e
r
'
s
M
a
n
u
a
l
U
s
e
r
'
s
M
a
n
u
a
l
File:
[201175-F-01-01.doc]
WARNING: The information that is printed within this manual is vital for the correct use of the
equipment; please read it carefully before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arcovis 3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Villa Sistemi Medicali Arcovis 3000

Summary of Contents for Villa Sistemi Medicali Arcovis 3000

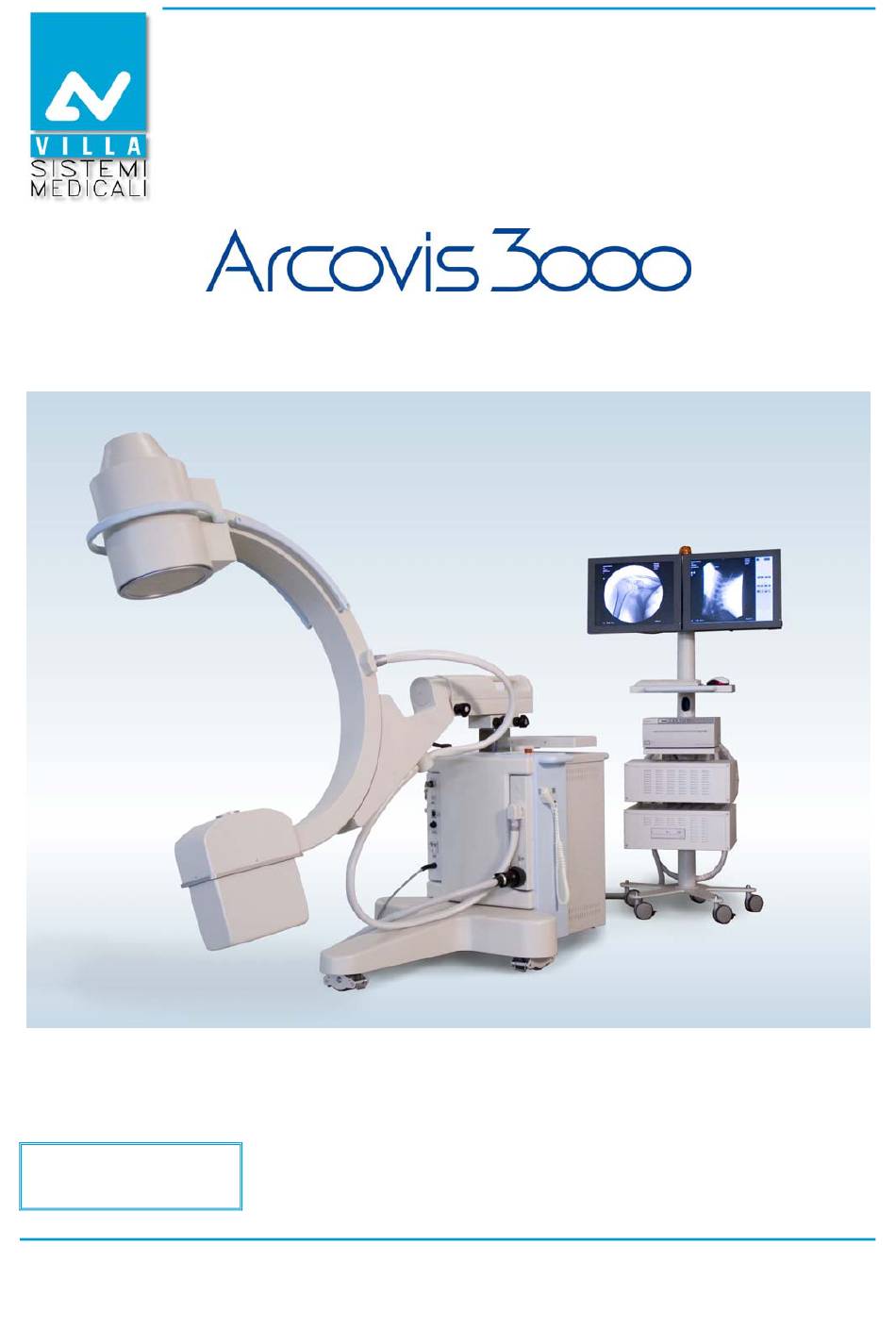

  • Page 1 Revision: G Version: May 26, 2010 ’ ’ File: [201175-F-01-01.doc] WARNING: The information that is printed within this manual is vital for the correct use of the equipment; please read it carefully before use.
  • Page 2 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali This page is intentionally left blank [File:201175-G-01-01.doc]...

  • Page 3: Table Of Contents

    Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual Table of contents SAFETY AND COMPLIANCE ......................2 1.1. Electrical safety ............................. 3 1.2. Laser targeting devices safety ........................3 1.3. Mechanical safety ............................3 1.4. Electromagnetic compatibility (EMC) ......................4 1.5.

  • Page 4: Safety And Compliance

    All of the information contained herein is based on the current version of the system. Villa Sistemi Medicali reserves the right to improve and implement changes to the information herein to reflect any changes necessitated by technological enhancements to the system.

  • Page 5: Electrical Safety

    ARCOVIS 3000 S/R User's Manual 1.1. Electrical safety Only trained service personnel authorized by Villa Sistemi Medicali may remove the unit covers and only in accordance with the instructions contained in the Service Manual. This x-ray unit may only be used in environments or medical rooms in compliance with the applicable IEC standards.

  • Page 6: Electromagnetic Compatibility (Emc)

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 1.4. Electromagnetic compatibility (EMC) This apparatus is in compliance with the standard IEC 60601-1-2 that defines the max. allowed emission levels from electronic devices and the required immunity from interference caused by externally generated electromagnetic fields.

  • Page 7: General Disposal

    Network (DICOM System). Such devices must be in full compliance with the safety requirements specified by 93/42/EEC Directive. The liability of the interface, if it has not been evaluated and authorized by Villa Sistemi Medicali in writing, is of the operator and/or of the person who has performed this interface.

  • Page 8: Application And Final Destination

    Villa Sistemi Medicali 1.9. Application and final destination ARCOVIS 3000 S/R is a "mobile x-ray unit with image intensifier system" and it has been designed to be used for diagnosis. It must be operated exclusively by qualified, trained personnel who have been informed of the risks linked to the use of ionizing radiation.

  • Page 9: Classification

    Risk analysis CEI EN 60825-1 2nd edition Laser equipment safety ARCOVIS 3000 S/R with radio-protection according to the Standard CEI EN 60601-1-3 (1995) Gruppo Inverter-monoblocco: (IN-9040-5 HF + I-40S 3,5 RF, IN-9040-5 HF + I-40R 5 RF) EN60601-2-7:1998 X-ray group for diagnostics ARCOVIS 3000 S/R IEC 601-2-28 (1993) Complementary unit ARCOVIS 3000 S/R IEC 601-2-32 1.12.

  • Page 10: Component Identification

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 2. COMPONENT IDENTIFICATION 2.1. Overview The unit ARCOVIS 3000 S/R is made up of two different parts: Mobile Stand and Display Station. Mobile stand consisting of: “C” Arm, Monobloc, Image Intensifier, Control Panel (Fig. 1).
  • Page 11 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual Display Station consisting of: • nr.1 orientable LCD monitor 17”, directly on mobile stand for digital systems with CCD 0,5K x 0,5K (Fig. 2). * • “Low Profile Base Trolley” with two LCD monitors 19” for video systems 0,5K (Fig.

  • Page 12: Mobile Stand

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 2.2. Mobile Stand Image intensifier Emergency push-button for the UP/DOWN movement Handles for the Handle for the horizontal arm sliding arm group sliding Control panel Handles for the movement of the mobile image Collimator intensifier.
  • Page 13 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 2.2.1. Handles and brakes position for manual movements 1. Brake for the arm The brake handle is take-up type. In order to avoid rotation around the collision dangers with the unit or the user, always put the horizontal axis.

  • Page 14: Keyboard

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 2.3. Keyboard 2.3.1. Unit All keys are membrane type. The keyboard group can rotate ± 45° in respect of the central position for its simpler use. Fig. 10 Area 1 Laser targeting device...
  • Page 15 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 2.3.2. “Base Monitor Trolley” Memories series SBFM /HRC The memory series SBFM76 has not the keyboard. The memories series SBFM78 have only the alphanumeric keyboard for the patient data input. allows PATIENT NAME (max 63 characters) to be inserted...
  • Page 16 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Memories series DIP The memories series DIP have a keyboard dedicated to the post processing. All keys are membrane type. KEYBOARD ACQUISITION DOSE & ANGIOGRAPHY DICOM " Enter ¦ < > I.R.
  • Page 17 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual PROCESSING It allows the images visualization in SHARP / SMOOTH / OFF edges negative processing Key to increase the brightness Key to increase the contrast Key to decrease the brightness Key to decrease the contrast...
  • Page 18 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Memories series HRP The memories series HRP have the alphanumeric keyboard and the mouse for the patient data input. All keys are membrane type. F1 1 & Scroll Print Lock Lock Pause...
  • Page 19 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 2.3.4. Display Alphanumeric touch-screen display 5” for x-ray parameters and warning/error messages. The keys, so-called at “retention”, are displayed: in positive on white background for the non-active function in negative on black background for the active function Note: the box with the dose indication is displayed only if the dosimeter is installed and in working condition.

  • Page 20: Fluoroscopy Control Footswitch

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 2.4. Fluoroscopy control footswitch The footswitch is enabled only in fluoroscopy mode. The fluoroscopy control footswitch consists of a double-step pedal and two single-step ones. The functions in the different modes are: 1.

  • Page 21: Monitor Trolley

    ARCOVIS 3000 S/R User's Manual 2.6. Monitor Trolley Unit “ARCOVIS 3000 S/R” with monitor aboard Unit “ARCOVIS 3000 S/R” + “Low Profile Base Trolley” Unit “ARCOVIS 3000 S/R” + “High Profile Base Trolley” Unit “ARCOVIS 3000 S/R” + “High Configuration” trolley [File:201175-G-01-01.doc]...

  • Page 22: Operative Messages

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 2.7. Operative messages Display in fluoroscopy mode Indication of the dose value (only if the dosimeter is present and in working condition / MESSAGES and/or ERRORS Area) Indication of the FLUOROSCOPY / RADIOGRAPHY phase.

  • Page 23: Alarm Messages

    Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 2.8. Alarm messages In case of alarm condition, the alarm messages are displayed in an appropriate box with audio-visible signals. The key for the dose visualization resetting changes in ALARM RESET. When an error/warning appears, press the key “ALARM RESET” to reset the audible signal, delete the message and go on to work.
  • Page 24 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Press the “ALARM RESET” key in MOTOR DRIVER order to go on to work (it is possible to collimator motor does COMMUNICATION * go on with XR, if the I.I. field results to communicate with the central unit.

  • Page 25: Safety Devices

    ARCOVIS 3000 S/R User's Manual 2.9. Safety devices ARCOVIS 3000 S/R is protected against short circuits through a magneto-thermic switch placed on the unit (pos. 1). In case the magneto-thermic switch intervenes, in order to reactivate the working of the unit, place the magneto-thermic switch control in “ON”...

  • Page 26: Unit Use

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 3. UNIT USE 3.1. Transport ’ 5°. T MOVE THE UNIT ON PLANES WITH INCLINATION HIGHER THAN “ ” (F . 16) HE UNIT MUST BE MOVED ONLY IN THE CONDITION DEFINED...

  • Page 27: Connection Between Monitor Trolley - Mobile Stand

    3.2. Connection between monitor trolley – mobile stand Only for version with monitor trolley The connection between these parts of ARCOVIS 3000 S/R is performed through a multipolar connector with bayonet connection. On “Base Trolleys”, the cable is fixed permanently from the monitor trolley side, whilst it is sectionable from the unit side.

  • Page 28: Connection Between Footswitch - Mobile Stand

    ARCOVIS 3000 S/R Villa Sistemi Medicali 3.3. Connection between Footswitch – Mobile Stand The connection between these parts of ARCOVIS 3000 S/R is performed through a connector with press connection. Handle the connectors with care. Don't unplug by pulling the cable but grip the plug body.

  • Page 29: Unit On / Off

    ARCOVIS 3000 S/R User's Manual 3.4. Unit ON / OFF Unit with monitor aboard or with “BASE monitor TROLLEY” The unit ARCOVIS 3000 S/R has got a switching-ON key with three car-type positions. Key extraction position. 0 position Unit OFF Stable position.
  • Page 30 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Unit with “HIGH CONFIGURATION monitor TROLLEY” The unit ARCOVIS 3000 S/R has got a switching-ON key with three car-type positions mounted on the monitor trolley. Key extraction position. Position 0 Unit OFF Stable position.

  • Page 31: Positioning

    Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 3.5. Positioning Don't move the mobile image intensifier or the C-arm with brakes ON. For movements use the proper handles (see §2.2.1). Turn the unit ON (ref. §3.4) Adjust the arm height (motorized movement).

  • Page 32: Use Mode

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Before performing an exposure, ensure that all the necessary precautions against radiation have been activated. Before performing an examination, ensure that the residual exposure time indication enough complete realization diagnostic investigation. 3.6. Use mode The foreseen use modes are: •...
  • Page 33 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 3.6.1. AUTOMATIC CONTINUOUS FLUOROSCOPY Turn the unit ON according to what described in §3.4 “Unit ON / OFF”. After the test phase of the internal circuits and the software, the unit is prearranged for the working in automatic fluoroscopy.
  • Page 34 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 3.6.2. MANUAL CONTINUOUS FLUOROSCOPY By entering MANUAL FLUOROSCOPY mode, the display appears in the following way: Selection of the RADIOGRAPHY mode (§3.6.5) Selection of the PULSED FLUOROSCOPY frequency. By pressing the key, the selection and the indication aside change (according to the installed memory).
  • Page 35 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 3.6.3. AUTOMATIC AND MANUAL PULSED FLUOROSCOPY Selection of the PULSED FLUOROSCOPY frequency. By pressing the key, the selection and the indication aside change (according to the installed memory). Press the right pedal to control the exposure.
  • Page 36 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 3.6.5. RADIOGRAPHY Select Radiography. The display appears as in the figure below: Key for the FLUOROSCOPY mode selection (§3.6.1) Key for the APR 1 mode selection. (Head) The chosen APR program proposes the default exposure parameters (kV, mAs, focus).
  • Page 37 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual APR radiography By selecting the wished APR program, the relative key appears in negative and, on the right side of the screen, the keys concerning the selection of “slim patient” and “sturdy patient” appear.
  • Page 38 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 3.6.6. DURING THE EXAM During every fluoroscopy exam, it is possible: Select a different image enlargement. Rotate the image position. Overturn horizontally the image. Enlarge or reduce in size the irradiated area through the iris diaphragm or the parallel shutters diaphragm.
  • Page 39 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 3.6.8. IMAGES TRANSFER TO EXTERNAL NETWORK In case of unit provided with DTU (Dicom Transmission Unit), it is possible to transfer the images to a network printer or to a central file for the possible filing or processing.
  • Page 40 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 3.6.10. Utility Mode Utility Mode is a particular use mode to set some unit parameters. It is accessible to the final user at any minute from the Automatic Continuous Fluoroscopy mode (§3.6.1). You enter Utility Mode by pressing on the keyboard the F1 key and, by holding it down, press the ENTER key.
  • Page 41 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual Utility Mode - Report The report screen is a particular screen accessible to the user in only reading. It does not include the data necessary to the normal unit use. Firmware Version Indication of the firmware versions loaded on the unit.

  • Page 42: Shutdown Procedure

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 3.7. Shutdown procedure This section describes the system shutdown procedure in order to ensure operators and patients' safety and a long unit life. Don't disconnect the cable between the mobile image intensifier and the monitor trolley if the mobile image intensifier is not off.

  • Page 43: Maintenance

    Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual MAINTENANCE 4.1. General warnings As with any technical device, this system requires: • proper use; • regular checks by the user; • regular maintenance by the authorized personnel By taking these precautions, the working and the operative reliability of the unit are ensured.

  • Page 44: Cleaning

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Summary of the periodical checks Frequency Reference Method Daily Stability tests Daily Faulty leds, damaged components, plates and warning signals Inspection Weekly All cables and terminals (damages/breakages). Inspection Oil drippings and unusual noises in high voltage generator.

  • Page 45: Technical Data

    Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 5. TECHNICAL DATA 5.1. Labels and symbols 5.1.1. Unit labels Pos. 1: S/N Label Pos. 2: WEEE Label Fixed Anode Version All versions Rotating Anode Version Fig. 19 [File:201175-G-01-01.doc] Rev. E - Pag. 43/76...
  • Page 46 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 5.1.2. Monitor trolley labels Pos.1: S/N label (present only on versions Pos. 2: WEEE label with monitor trolley) Fig. 20 Fig. 21 5.1.3. Monobloc labels Pos. 1: S/N label Fixed Anode Version Rotating Anode Version Fig.
  • Page 47 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 5.1.4. IMAGE INTENSIFIER LABEL Applied outside the image intensifier I.I. Tube type A1234BCD * s/n 12345 Power supply type AB12345 ** s/n 123456 Codes present on the label in relation to the installed I.I. tube type:...
  • Page 48 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 5.1.6. UNIT SYMBOLS ON key label. Emergency stop Label of “Enable Down” push-button, enabled arm extra-travel downwards MAIN label Equipotential node Brakes lock/release WHEEE label label. Monitor connection External connections (only version with monitor...

  • Page 49: Environmental Conditions

    Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual Additional DAP meter filtration label (only in case there is the dose meter accessory) Warning about laser radiation hazard (only in case there is the laser accessory). 5.1.7. MONITOR SYMBOLS Image contrast...

  • Page 50: Electrical Data

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 5.3. Electrical data Description Fixed Anode Version Rotating Anode Version 230 Vac ±10% standard monophase Voltage 105 / 115 / 125 / 220 / 240 Vac ±10% monophase on request 50 Hz standard - 60 Hz on request...
  • Page 51 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual Fluoroscopy time for fixed anode version The values indicated in the graph refer to the trends calculated from the software safety procedures that are preventive concerning the bimetallic contact inside the monobloc that indicates the achievement of 57°C (134,60°F).
  • Page 52 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Fluoroscopy time for rotating anode version The values indicated in the graph refer to the trends calculated from the software safety procedures that are preventive concerning the bimetallic contact inside the monobloc that indicates the achievement of 57°C (134,60°F).
  • Page 53 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 5.3.2. COLLIMATOR Description Data With iris: Model mod.R605/027A/DASM With iris and parallel shutters: Mod.R605/027/DASM Fields dimension (DF 100cm- 39”): 5±23cm round field delimitation 0±23cm elliptical field delimitation <40mR/h Leakage radiation (EN60601.1.3 par.29.204.3) Inherent filtration (EN60601.1.3)
  • Page 54 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 5.3.3. X-RAY GROUP X-ray housing data Description Fixed Anode Version Rotating Anode Version Monobloc model I-40S 3,5 RF I-40R 5 RF 3,5 kW Max. power (100kV – 35mA) (IEC 601-1) 110KV 120kV Max.
  • Page 55 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual Monobloc RX I-40S 3,5 RF dimensions [File:201175-G-01-01.doc] Rev. D - Pag. 53/76...
  • Page 56 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Data of x-ray fixed anode insert X-RAY INSERT MODEL CEI OX/110-5 PHU 0,5/1,5 110kVP Max. peak voltage 4,5A Max. filament current Nominal foci dimension: 0,5mm Small focus 1,5mm Large focus Nominal anodic power:...
  • Page 57 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual Monobloc I-40R 5 RF dimensions [File:201175-G-01-01.doc] Rev. E - Pag. 55/76...
  • Page 58 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Data of the x-ray rotating anode insert X-RAY INSERT MODEL IAE X20P 0,3-0,6 130kVP Max. peak voltage 5,4A Max. filament current Nominal foci dimension: 0,3mm Small focus 0,6mm Large focus Nominal anodic power:...
  • Page 59 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 5.3.4. TOTAL UNIT HALF-VALUE LAYER Rotating Anode Description Fixed Anode Version Version 2,8mmAl 2,8 mmAl Half-value layer @75kV Half-value layer @110kV Half-value layer @120kV 5.3.5. TOTAL UNIT FILTRATION Description without DAPMeter with DAPMeter...

  • Page 60: Exposure Mode: Fluoroscopy

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 5.4. Exposure mode: fluoroscopy 5.4.1. CONTINUOUS FLUOROSCOPY Description Fixed Anode Version Rotating Anode Version Small focus (IEC 336) 0,5mm 0,3mm kV variation range 40÷110kV 40÷120kV mA variation range 0,5÷8mA 0,5÷8mA kV-mA relationship...
  • Page 61 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 5.4.4. (1/2) mA FLUOROSCOPY Description Fixed Anode Version Rotating Anode Version mA variation range 0,25÷4mA 0,25÷4mA kV-mA relationship 40kV / 0,25mA 40kV / 0,25mA 80kV / 3,8mA 80kV / 3,8mA 110kV / 4mA...
  • Page 62 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali kV-mA relationship of camera 0,5K mA (Fixed Anode Version) Standard mA(1/2) Snapshot 0.50 0.25 0.70 0.50 1.00 2.50 1.25 2.40 1.00 4.00 5.00 2.50 4.20 3.00 7.00 7.50 3.75 5.60 5.00 10.0 7.60...

  • Page 63: Exposure Mode: Radiography

    Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 5.5. Exposure mode: radiography Two points technique, kV and mAs selection Description Fixed Anode Version Rotating Anode Version Large Focus (IEC 336) 1,5mm 0,6mm kVp range 40÷110kV 40÷120kV mA range @ 230Vac @ 230Vac 25 mA fixed from 40kV to 100kV;...

  • Page 64: Image System

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 5.6. Image system 5.6.1. IMAGE INTENSIFIER (1) Description Triple 9/6/4” Thales Brand TH 9428 HP2 Model H542 VR13 Fields Number 230 mm Nominal Input Diameter 20 mm Output Image Diameter 3,6 mm...
  • Page 65 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 5.6.2. TV CHAIN AND MONITOR TV chain with CCD 0,5K x 0,5K Description Data Camera Camera technology CCD at low persistence of ½” (470.000pixels) Video standard CCIR 625/50Hz interlaced with matrix 752x 582 pixels...
  • Page 66 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Monitors Monitor 17” 18” 19” B/W 19”Color Standard for unit with Standard for camera Standard per camera Standard for camera monitor aboard 0,5K , opzional for 0,5K , optional for optional for camera...

  • Page 67: Digital Image Processor

    Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 5.7. Digital image processor TV chain and Monitor with CCD 0,5K x 0,5 K Features SBFM 76 SBFM 78/330 SBFM 78/2700 SBFM76 SBFM 78/330 SBFM 78/2700 Model L.I.H. L.I.H. +330 L.I.H. + 2700...
  • Page 68 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Features DIP3000 A DIP 3000 A Model L.I.H.+192 image buffer ram Number of images About 40.000 Number of images in Hard Disk CCIR625/50, EIA 525/60, 1Vpp Video signal 75 Ohm 576x576x12bit Image format working memory...
  • Page 69 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual TV chain and Monitor with CCD 1K Features HRC 1000 type 1024 x 1024 x 16 bit Images acquirement 1024 x 1024 x 10 bit up to 256 frames (option). Images storage...
  • Page 70 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Features HRP 2000 Acquirement From digital CCD 1024x1024 up to 12 bits Images acquirement Pulsed at high dose up to 12 images/second 1024x1024x12bit Fluoroscopy 25 images/second 1024x1024x8bit Fluoroscopy with recursive filter and movement holding...
  • Page 71 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual DICOM2, DICOM3 Digital Imaging and Communications in Medicine (Option) Description Data ESIDIC2, ESIDIC3 Network connection features: Ethernet autosense 10/100 M bit/s Speed TCP/IP Protocol Personalizable in 4 byte IP address Personalizable in 4 byte...

  • Page 72: Accessories

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 5.8. Accessories Description Standard Optional • X-ray handswitch with extensible cable • Fluoroscopy control by triple footswitch • Cassette-holder for radiography on cassette 24x30cm • Cassette-holder for radiography on cassette 18x24cm •...
  • Page 73 Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual Thermal Dose Meter Printer Custom S print s type Thermal line printing Printing method 203 dpi Resolution >50mm/sec (it depends on the printing typology and the environment Printing speed temperature) 58mm Paper width (mm 57.5 ±1...
  • Page 74 User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali Sony DVD Recorder DVO 1000MD Description Data General data: DVD recording, NTSC/PAL, Switchable Recording System Video: MPEG-2 compression Recording Format Audio: Dolby Digital Format DVD+RW ( 2,4x and 4x speed ) Recordable media...

  • Page 75: Mechanical Data

    Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 6. MECHANICAL DATA 6.1. C-arm unit dimensions with I.I. 9” 6.2. Axis and interventionist reference point 300 [11,81 Interventionist reference point Reference axis [File:201175-G-01-01.doc] Rev. A - Pag. 73/76...

  • Page 76: Base Trolley" Monitor Trolley Dimensions

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 6.3. “Base Trolley” monitor trolley dimensions max. admissible weights on the single shelves: 2 kg. 10 kg. In the version “Low Profile Base Trolley” for systems 0,5K the two lower shelves are not available.

  • Page 77: Dimensions Of "High Configuration" Monitor Trolley

    Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 6.4. Dimensions of “High Configuration” monitor trolley [File:201175-G-01-01.doc] Rev. A - Pag. 75/76...

  • Page 78: Mechanical Data, Dimensions And Weights

    User's Manual ARCOVIS 3000 S/R Villa Sistemi Medicali 6.5. Mechanical data, dimensions and weights “Base Monitor Trolley” “High Configuration” Description C-arm unit Monitor Trolley 340 kg (unit with fixed 150Kg Weight “Low Profile” “High Profile” anode) 749,57 lb 67kg 97 kg...

  • Page 79: Document Status

    Villa Sistemi Medicali ARCOVIS 3000 S/R User's Manual 7. DOCUMENT STATUS Rev. Date Page/s Modification description 30/10/2007 Document approval 28/04/08 General document revision. Note addition on the unit versions. 10, 11, Note addition about the use of the overview movement handle.
