Model
IT7803-350-30U
IT7805-350-30U
IT7806-350-90
IT7809-350-90
IT7812-350-90
IT7815-350-90
IT7830-350-180
IT7845-350-270
IT7860-350-360
IT7875-350-450
IT7890-350-540
IT78105-350-630 105kVA
IT78120-350-720 120kVA
IT78135-350-810 135kVA
IT78150-350-900 150kVA
IT78165-350-990 165kVA

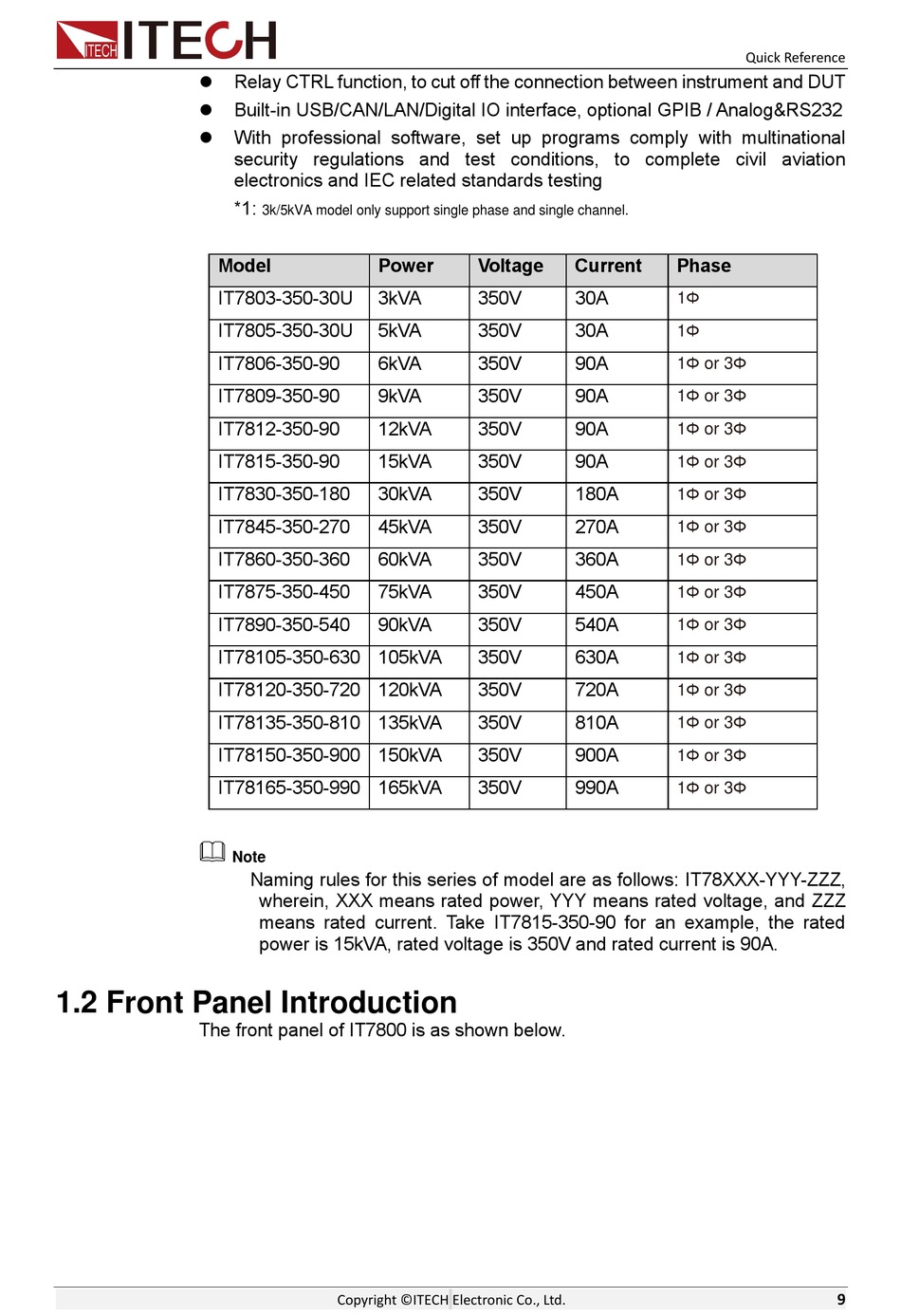

1.2 Front Panel Introduction

The front panel of IT7800 is as shown below.
Relay CTRL function, to cut off the connection between instrument and DUT
Built-in USB/CAN/LAN/Digital IO interface, optional GPIB / Analog&RS232
With professional software, set up programs comply with multinational
security regulations and test conditions, to complete civil aviation
electronics and IEC related standards testing
*1:
3k/5kVA model only support single phase and single channel.
Power
3kVA
5kVA
6kVA
9kVA
12kVA
15kVA
30kVA
45kVA
60kVA
75kVA
90kVA
Note
Naming rules for this series of model are as follows: IT78XXX-YYY-ZZZ,
wherein, XXX means rated power, YYY means rated voltage, and ZZZ
means rated current. Take IT7815-350-90 for an example, the rated
power is 15kVA, rated voltage is 350V and rated current is 90A.
Copyright ©ITECH Electronic Co., Ltd.
Voltage Current
350V 30A
350V 30A
350V 90A
350V 90A
350V 90A
350V 90A
350V 180A
350V 270A
350V 360A
350V 450A
350V 540A
350V 630A
350V 720A
350V 810A
350V 900A
350V 990A
Quick Reference
Phase
1Φ
1Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
1Φ or 3Φ
