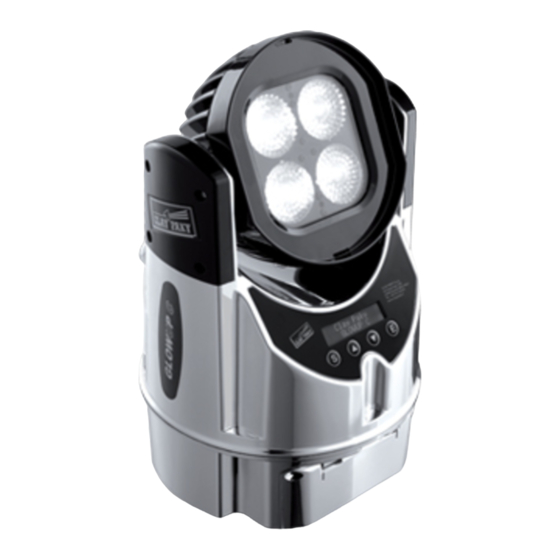

Clay Paky C71050 Instruction Manual

Hide thumbs Also See for C71050:
Table of Contents

Advertisement

Quick Links

Download this manual
CONTENTS
Page
Contents
2
3
3
4
7
13
13
14
15
16
16
17
All manuals and user guides at all-guides.com

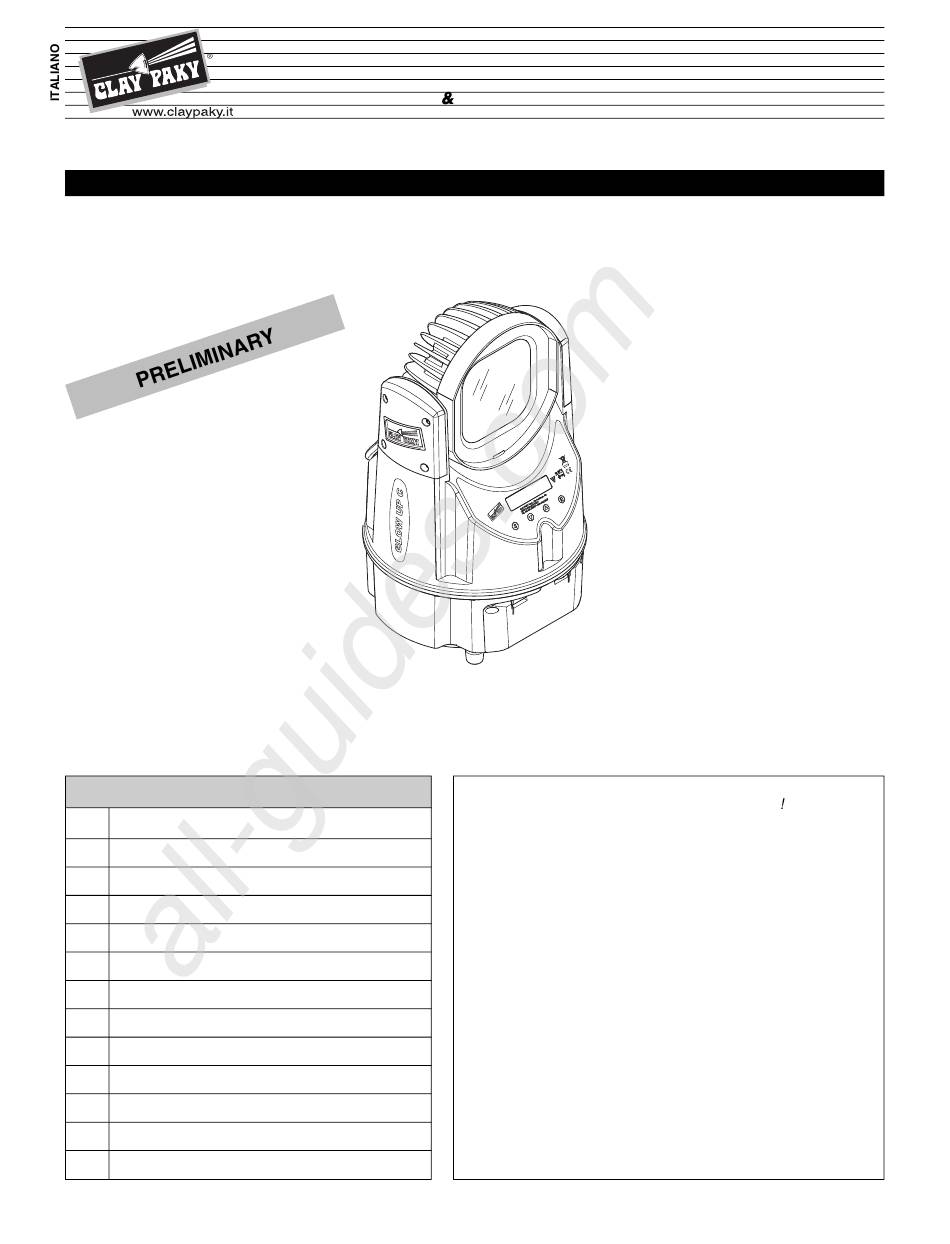

GLOW UP
FLIGHT CASE
INSTRUCTIONS MANUAL
Congratulations on choosing a Clay Paky product
We thank you for your choice. Please note that this product,
as all the others in the rich Clay Paky range, has been
designed and manufactured with total quality to ensure
excellent performance and best meet your expectations and
requirements.
Carefully read this instruction manual in its entirety and keep it
safe for future reference.
It is essential to know the information and comply with the
instructions given in this manual in order to ensure the fitting is
installed, used and serviced correctly and safely.
CLAY PAKY S.p.A. disclaims all liability for damage to the
fitting or to the other property or persons deriving from
installation, use and maintenance that have not been carried
out in conformity with this instructions manual, which must
always accompany the fitting.
CLAY PAKY S.p.A. reserves the right to modify the
characteristics stated in this instructions manual at any time and
without prior notice.
1
C
C71050
TW
C71055
W
C71060
F21230

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C71050 and is the answer not in the manual?

Questions and answers

Related Manuals for Clay Paky C71050

Summary of Contents for Clay Paky C71050

  • Page 1: Table Of Contents

    Congratulations on choosing a Clay Paky product We thank you for your choice. Please note that this product, Page Contents as all the others in the rich Clay Paky range, has been Safety information designed and manufactured with total quality to ensure Unpacking and preparation excellent performance and best meet your expectations and requirements.

  • Page 2: Safety Information

    All manuals and user guides at all-guides.com SAFETY INFORMATION • Installation Make sure all parts for fixing the projector are in a good state of repair. Make sure the point of anchorage is stable before positioning the projector. The safety chain must be properly hooked onto the fitting and secured to the framework, so that, if the primary support system fails, the fitting falls as little as possible.

  • Page 3: Unpacking And Preparation

    All manuals and user guides at all-guides.com UNPACKING AND PREPARATION OPTIONAL ACCESSORY C71110 099114 Packing content - Fig. 1 INSTALLATION AND START-UP Projector installation - Fig. 2 The projector can be installed on the floor resting on specific rubber feet, on a truss, on the ceiling or wall. WARNING: the safety chain must be installed except when the projector rests on the floor.

  • Page 4: Control Panel

    Switching on the projector - Fig. 6 The projector immediately turns on when the power cord is plugged in or, if used in battery mode, by pressing and holding down keys several seconds. Clay Paky GLOW UP Address xxx BAT xx GLOW UP Software release x.x x...
  • Page 5 All manuals and user guides at all-guides.com Initial projector address settings An initial address must be set on each single project for the control signal. Address settings: see page 9. Button functions – Menu use SELECT • If pressed in idle status: Cyclically switches between idle status and menu settings. •...
  • Page 6 All manuals and user guides at all-guides.com Charging glow up - Fig. 8 From 1 to 6 Glow Ups can be simultaneously charged by appropriately connecting and powering the flight-case. Fuse 6,3x32mm 3AT 250Vac (030471) Fuse 6,3x32mm 10AT 250Vac (030470) Replacing flight case fuses - Fig.

  • Page 7: Main Menu

    All manuals and user guides at all-guides.com MENU SETTING MAIN MENU Unlink Manual Tunable Stand Alone Edit scene Radio Dimmer from TX Control white Stop Edit chase Add RX Green Dimmer Strobe Disconnect Stop Blue recorder all RX Strobe Play chase White Play DMX Dimmer...
  • Page 8 All manuals and user guides at all-guides.com STAND ALONE MENU EDIT SCENE Stand Alone Edit scene To create/overwrite/modify a SCENE customised by the user: 1) Press ENTER – SCENE 1 appears on the display. 2) Use the UP and DOWN keys to select from the ten available SCENES.
  • Page 9 All manuals and user guides at all-guides.com MANUAL CONTROL MENU Allows the user to set a level for each of the following channels in BIT from Manual Tunable Dimmer the control panel: Control white GLOWUP C GLOWUP TW GLOWUP W Stop Tunable white Dimmer...
  • Page 10 All manuals and user guides at all-guides.com BACKLIGHT Backlight Used to turn off display backlight 60 seconds after switching to idle status. To turn back on, simply press any key. 1) Press ENTER – current settings appear on the display. 2) Use the UP and DOWN keys to turn display backlight OFF or ON.
  • Page 11 All manuals and user guides at all-guides.com LED TEMPERATURE temperature Displays the LED working temperature. 1) Press ENTER – two options appear on the display: Temperature (real-time LED temperature) Max Temperature (maximum temperature measured on LEDs) 2) Use the UP and DOWN keys to select which of the two temperature items to be displayed.
  • Page 12 All manuals and user guides at all-guides.com TEST Test Used to test the correct operations of effects. 1) Press ENTER 2) Use the and DOWN keys to select the Test function. 3) Press ENTER to confirm the select and start the TEST or SELECT to keep current settings.

  • Page 13: Manual Zoom

    All manuals and user guides at all-guides.com MANUAL ZOOM Manual zoom - Fig. 10 The GlowUP has a manual zoom located on the back of the projector head. MAINTENANCE 1/4 Turn GLOW UP...

  • Page 14: Battery Removal

    All manuals and user guides at all-guides.com BATTERY REMOVAL This product contains lithium iron tetraphosphate rechargeable battery. To protect the environment, please discard the battery at the end of its working life according to current law. LiFePo 1/4 Turn GLOW UP...

  • Page 15: Optional Accessories

    • General cleaning of internal parts. • General visual check of internal parts, cabling, mechanical parts, etc. • Electrical, photometric and functional checks; eventual repairs. OPTIONAL ACCESSORIES MAGNETIC HOLDER 255036/001 black 255036/002 white PADLOCK Not commercialized from Clay Paky GLOW UP...

  • Page 16: Technical Data

    All manuals and user guides at all-guides.com TECHNICAL DATA Source Absorbed power 4 10 W MC-E Cree leds 50W max - 170 VA Led pilot power Body • Injection pressed ABS case (UV protected) • Finish: Polished metallic – Painted White or Optics Black Optic zoom, manually adjustable, magnetic support...

  • Page 17: Channel Functions

    All manuals and user guides at all-guides.com CHANNEL FUNCTIONS GLOW UP C CHANNEL CHANNEL MODE GREEN BLUE WHITE DIMMER STOP / STROBE MACRO COLOR MACRO TIMING MACRO FADING GLOW UP TW CHANNEL MODE CHANNEL INDEPENDENT CONSTANT INTENSITY MAX INTENSITY COOL WHITE 6200°K TUNABLE WHITE TUNABLE WHITE WARM WHITE 2700°K...
  • Page 18 All manuals and user guides at all-guides.com • MACRO COLOR - channel 7 GLOW UP C EFFECT COLD TONE WARM TONE PASTEL TONE • COLOUR MIXING - channel 1 - 2 - 3 SEQ1 SKELTON EXOTIC SANGRIA Operation with option color mixing: RGB FLESH PINK CHERRY ROSE MAYAN SUN...

  • Page 19: White - Channel

    All manuals and user guides at all-guides.com GLOW UP TW INDEPENDENT MODE CONSTANT INTENSITY & MAX INTENSITY MODE INDEPENDENT CONSTANT INTENSITY MAX INTENSITY COOL WHITE 6200°K TUNABLE WHITE TUNABLE WHITE WARM WHITE 2700°K DIMMER DIMMER STOP / STROBE STOP / STROBE STOP / STROBE CONSTANT INTENSITY MAX INTENSITY...

  • Page 20: Bit % Effect

    GLOW UP W • DIMMER - channel 1 EFFECT OPEN (LIGHT) CLOSED (BLACK) • STOP / STROBE - channel 2 CLAY PAKY - Via Pastrengo, 3/b - 24068 Seriate (BG) Italy - Tel. +39-035-654311 - Fax +39-035-301876 - www.claypaky.it S.p.A.
