Copyright
This publication, including all photographs, illustrations and software, is protected un-
der international copyright laws, with all rights reserved. Neither this manual, nor any
of the material contained herein, may be reproduced without w ritten consent of the au-
thor.
Version 1.0a
Disclaimer
The information in this document is subject to change without notice. The manufac-
turer makes no representations or warranties with respect to the contents hereof and
specifically disclaims any implied warranties of merchantability or fitness for any par-
ticular purpose. The manufacturer reserves the right to revise this publication and to
make changes from time to time in the content hereof without obligation of the manu-
facturer to notify any person of s uch revision or changes.
Trademark Recognition
Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.
MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel
Corporation.
Other product names used in this manual are the properties of their respective owners
and are acknowledged.
Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digi -
tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not in-
stalled and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not oc-
cur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment onto an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Shielded interconnect cables and a shielded AC power cable must be employed with
this equipment to ensure compliance with the pertinent RF emission limits governing
this device. Changes or modifications not expressly approved by the system's manu-
facturer could void the user's authority to operate the equipment.
Preface

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L4S5A and is the answer not in the manual?

Questions and answers

Summary of Contents for ECS L4S5A

  • Page 1 Preface Copyright This publication, including all photographs, illustrations and software, is protected un- der international copyright laws, with all rights reserved. Neither this manual, nor any of the material contained herein, may be reproduced without w ritten consent of the au- thor.
  • Page 2 Declaration of Conformity This device complies with part 15 of the FCC rules. Operation is subject to the follow - ing conditions: − This device may not cause harmful interference, and − This device must accept any interference received, including interference that may cause undesired operation.
  • Page 3: Table Of Contents

    Table of Contents Preface 錯誤! 尚未定義書籤。 Features and Packing List Translations CHAPTER 1 Introducing the Mainboard Introduction......................1 Checklist.........................1 Standard Items ....................1 Features........................2 Choosing a Computer Case................3 Mainboard Components..................4 CHAPTER 2 Installing the Mainboard Safety Precautions....................6 Quick Guide......................6 Installing the Mainboard in a Case..............7 Checking Jumper Settings...................7 Setting Jumpers ....................
  • Page 4 Integrated Peripherals Option................33 Power Management Setup Option..............37 PNP/PCI Configuration Option............... 41 Frequency/Voltage Control................42 Load Fail-Safe Defaults Option ..............43 Load Optimized Defaults Option ..............43 Set Password Option ..................43 Save & Exit Setup Option ................44 Exit Without Saving ..................

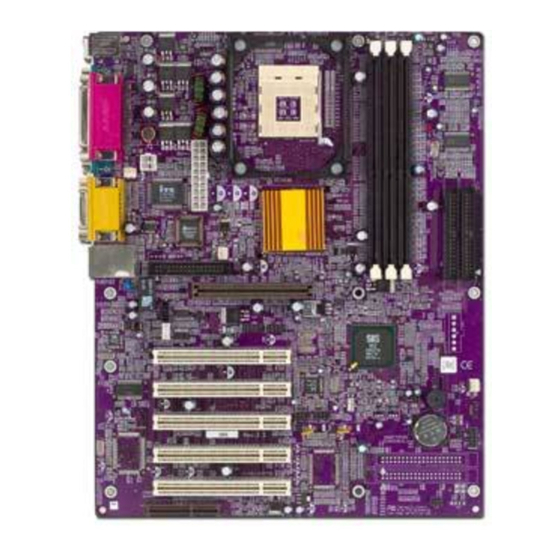

  • Page 5: Introducing The Mainboard

    305 mm x 220 mm. The mainboard features a mPGA Socket 478 that ac- commodates Pentium 4 processors supporting frontside bus (FSB) speeds up to 400 MHz. The L4S5A incorporates the SiS645 chipset which combines support for the new high-bandwidth Double Data Rate (DDR) SDRAM, and the AC 97 audio codec.
  • Page 6: Features

    2.5V 184-pin slots. Each slot supports up to 1 GB with a total maximum capacity of 2 GB. The L4S5A includes a 4xAGP slot that provides four times the bandwidth of the original AGP specification. AGP technology...
  • Page 7: Choosing A Computer Case

    Integrated I/O The mainboard has a full set of I/O ports and connectors: • Two PS/2 ports for mouse and keyboard • One serial port • One parallel port • One MIDI/game port • Two USB ports • One LAN port (optional) •...
  • Page 9 Table of Mainboard Components Label Component AGP1 Accelerated Graphics Port ATX1 Auxiliary power connector for Pentium 4 CPUs ATX2 Power connector AUDIO1 Front audio connector BAKFAN1 Case fan connector 2 BAT1 Three volt realtime clock battery CDIN1 Primary CD-in connector CDIN2 Secondary CD-in connector CHSFAN1...
  • Page 10: Installing The Mainboard

    Installing the Mainboard Follow these safety precautions when installing the mainboard: • Wear a grounding strap attached to a grounded device to avoid damage from static electricity. • Discharge static electricity by touching the metal case of a safely grounded object before working on the mainboard. •...
  • Page 11: Installing The Mainboard In A Case

    Refer to the following illustration and instructions for installing the mainboard in a case: This illustration shows an ex- 2. Secure the mainboard with ample of a mainboard being screws where appropriate. installed in a tower-type case: Note: Do not overtighten the screws as this can stress the main- board.
  • Page 12: Checking Jumper Settings

    Checking Jumper Settings The following illustration shows the location of the mainboard jumpers. Pin 1 is labeled. Jumper Settings Jumper Type Description Setting (default) 3-pin Clear CMOS 1-2: Normal 2-3: Clear CMOS 3-pin BIOS protect 1-2: Write Protect Disable 2-3: Write Protect Enable Jumper 1 –...
  • Page 13: Connecting Case Components

    After you have installed the mainboard into a case, you can begin connecting the mainboard components. Refer to the following: Connect the Pentium 4 processor auxiliary case power supply connector to ATX1. Connect the standard power supply connec- tor to ATX2. Connect the CPU cooling fan cable to CPUFAN1.
  • Page 14 LPANEL1 Device Pins Reset Switch 13, 14 Empty Case Speaker +9 ~ 12 (Pin 7) Reset Switch Power Switch 5, 6 (Pins 13, 14) Power LED Power Switch Green Power (Pin 5, 6) Yellow Power Power LED (Pin 4) HDD LED +1, -8 Case Speaker (Pins 9 ~ 12)
  • Page 15: Installing Hardware

    Installing the Processor Caution: When installing a CPU heatsink and cooling fan make sure that you DO NOT scratch the mainboard or any of the surface-mount resistors with the clip of the cooling fan. If the clip of the cooling fan scrapes across the mainboard, you may cause serious damage to the mainboard or its components.
  • Page 16 CPU Installation Procedure The following illustration shows CPU installation components: Note: The pin -1 corner is marked with an arrow Follow these instructions to install the CPU: Install and secure the Retention Module on the mainboard. Pull the CPU socket locking lever away from the socket to unhook it and raise the locking lever to the upright position.
  • Page 17 Swing the locking lever down and hook it under the latch on the edge of the socket. Snap the four retention legs of Cooling Fan the cooling fan into place. Heatsink Retention Module Swing both lock levers on top of the cooling fan to their opposite sides to se- cure the cooling fan on top of the heatsink.
  • Page 18: Installing Memory Modules

    Installing Memory Modules This mainboard accommodates three 184-pin 2.5V unbuffered Double Data Rate (DDR) SDRAM memory modules. The memory chips must be standard or registered SDRAM (Synchronous Dynamic Random Access Memory). The memory bus can run up to 166 MHz. When you installed DDR333 memory modules, the memory bus can run up to 166 MHz.
  • Page 19: Installing A Hard Disk Drive/Cd-Rom

    Installing a Hard Disk Drive/CD-ROM This section describes how to install IDE devices such as a hard disk drive and a CD-ROM drive. About IDE Devices Your mainboard has a primary and secondary IDE channel interface (IDE1 and IDE2). An IDE ribbon cable supporting two IDE devices is bundled with the main- board.
  • Page 20: Installing A Floppy Diskette Drive

    Installing a CD-ROM/DVD Drive Install the CD-ROM/DVD drive into the drive cage in your system case. Plug the IDE cable into IDE1 (A). If you have already installed an HDD, use the other connec- tor on the IDE cable. Note: Ribbon cable connectors are usually keyed so that they can only be installed correctly on the device connector.
  • Page 21: Installing Add-On Cards

    When you first start up your system, go immediately to the Setup Utility to configure the floppy diskette drives that you have installed. See Standard CMOS Features on page 27 for more information. Installing Add-on Cards This mainboard has six 32-bit PCI (Peripheral Components Interconnect) expansion slots, one 4xAGP slot, and one Communications and Networking Riser (CNR) slot.
  • Page 22: Connecting Optional Devices

    Connecting Optional Devices Refer to the following for information on connecting the mainboard’s optional devices: COM2: Onboard serial port connector Connect a serial port extension bracket to this header to add a second serial port to your system. Signal Name GROUND...
  • Page 23 AUDIO1: Front panel MIC/speaker-out header This header allows the user to install auxiliary front-oriented microphone and line-out ports for easier access. Signal Name Signal Name MICIN AGND MICBIAS SPKOUTR XSPKOUTR EMPTY SPKOUTL XSPKOUTL LAUDIO1: Front Audio Connector This connector is used to attach to Audio equipment embedded into or at- tached to the case.
  • Page 24 USB 3/2: USB panel connector The mainboard has USB ports installed on the rear edge I/O port array. However, some computer cases have a special module that mounts USB ports at the front of the case. If you have this kind of case, use auxiliary USB connector USB1 to connect the front-mounted ports to the mainboard.
  • Page 25 J2: Smart I/O interface header The Smart I/O connector is for use with media storage devices using the LPC interface. Signal Name Signal Name PCICLK VCC3 SERIRQ VCC3 LFRAME# GROUND LDRQ# GROUND LAD0 5VSB LAD1 GROUND LAD2 GROUND LAD3 PCIRST# PME#...
  • Page 26: Connecting I/O Devices

    The backplane of the mainboard has the following I/O ports: Parallel port (LPT1) Game port PS/2 port mouse ports PS/2 Serial port Microphone keyboard COM 1 Line-in Line-out PS/2 Mouse Use the upper PS/2 port to connect a PS/2 pointing device. PS/2 Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.
  • Page 27: External Connector Color Coding

    External Connector Color Coding Many connectors now use standard colors as shown in the table below. Connector Color Audio line-in Light blue Audio line-out Lime Digital monitor/flat panel White IEEE 1394 Grey Microphone Pink MIDI/game Gold Parallel Burgundy PS/2-compatible keyboard Purple PS/2-compatible mouse Green...
  • Page 28: Using Bios

    Using BIOS The computer uses the latest Award BIOS with support for Windows Plug and Play. The CMOS chip on the mainboard contains the ROM setup instructions for configuring the mainboard BIOS. The BIOS (Basic Input and Output System) Setup Utility displays the system's configuration status and provides you with options to set system parameters.
  • Page 29: Entering The Setup Utility

    Entering the Setup Utility When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears: Press DEL to enter SETUP Pressing the delete key accesses the BIOS Setup Utility: CMOS Setup Utility –...
  • Page 30: Using Bios

    If your mainboard has an item called Firmware Write Protect in Advanced BIOS features, disable it. (Firmware Write Protect prevents BIOS from being overwritten.) Create a bootable sys tem disk. (Refer to Windows online help for info r- mation on creating a bootable system disk.) Download the Flash Utility and new BIOS file from the manufacturer's Web site.
  • Page 31: Standard Cmos Features

    Standard CMOS Features This option displays basic information about your system. CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software Standard CMOS Features Item Help Date (mm:dd:yy) Tue, July 11 2001 Time (hh:mm:ss) 12 : 8 : 59 Menu Level IDE Primary Master Change the day, month,...
  • Page 32 IDE HDD Auto-Detection Press <Enter> while this item is highlighted to prompt the Setup Utility to automatically detect and configure an IDE device on the IDE channel. Note: If you are setting up a new hard disk drive that supports LBA mode, more than one line will appear in the parameter box.
  • Page 33: Advanced Bios Setup Option

    Advanced BIOS Setup Option This option defines advanced information about your system. CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software Advanced BIOS Features Item Help Anti-Virus Protection [Disabled ] CPU L1 & L2 Cache [Enabled] Menu Level Quick Power On Self Test [Enabled] First Boot Device...
  • Page 34 Swap Floppy Drive (Disabled) If you have two floppy diskette drives in your system, this item allows you to swap the assigned drive letters so that drive A becomes drive B, and drive B becomes drive A. Boot Up Floppy Seek (Disabled) If this item is enabled, it checks the size of the floppy disk drives at start-up time.
  • Page 35: Advanced Chipset Features Option

    Report No FDD For WIN95 (Yes) If you are running a system with no floppy drive and using Windows 95, select Yes for this item to ensure compatibility with the Windows 95 logo certification. Otherwise, select No. Small Logo (EPA) Show (Disabled) Enables or disables the display of the EPA logo during boot.
  • Page 36 System Performance (Normal Mode) This is the DRAM auto configuration option, which can be set to Safe Mode, Normal Mode, Fast Mode or Ultra Mode. CAS Latency Setting (2.5T) Enables you to select the CAS latency time in HCLKs of 2, 2.5, or 3. The value is set at the factory depending on the DRAM installed.
  • Page 37: Integrated Peripherals Option

    Integrated Peripherals Option These options display items that define the operation of peripheral compo- nents on the system's input/output ports. CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software Integrated Peripherals Item Help SIS OnChip IDE Device [Press Enter] SIS OnChip PCI Device [Press Enter] Menu Level...
  • Page 38 IDE Primary/Secondary Master/Slave PIO (Auto) Each IDE channel supports a master device and a slave device. These four items let you assign which kind of PIO (Programmed Input/Output) is used by IDE devices. Choose Auto to let the system auto detect which PIO mode is best, or select a PIO mode from 0-4.
  • Page 39 Onboard SuperIO Device Scroll to this item and press <Enter> to view the following screen: CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software Onboard SuperIO Device Item Help Onboard FDC Controller [Enabled] Onboard Serial Port 1 [3F8/IRQ4] Menu Level Onboard Serial Port 2 [2F8/IRQ3]...
  • Page 40 UR2 Duplex Mode (Half) This field is available when UART 2 Mode is set to either ASKIR or IrDA. This item enables you to determine the infrared function of the onboard infrared chip. The options are Full and Half (default). Full-duplex means that you can transmit and send information simultaneously.
  • Page 41: Power Management Setup Option

    SC Port Address (Disabled) The smart card reader needs a 16-byte fixed I/O address to access data. You may need an optional module to be able to use this function. When this item is set, the following item becomes available: •...
  • Page 42 Power Management Timeouts The power-saving modes can be controlled by timeouts. If the system is inac- tive for a time, the timeouts begin counting. If the inactivity continues so that the timeout period elapses, the system enters a power-saving mode. If any item in the list of Reload Global Timer Events is Enabled, then any activity on that item will reset the timeout counters to zero.
  • Page 43 Video Off Option (Susp, Stby --> Off) This option defines if the video is powered down when the system is put into suspend mode. Video Off Method (DPMS Supported) This item defines how the video is powered down to save power. This item is set to DPMS (Display Power Management Software) by default.
  • Page 44 PM Wake Up Events Scroll to this item and press <Enter> to view the following screen: CMOS Setup Utility – Copyright (C) 1984 – 2000 Award Software PM Wake Up Events Item Help IRQ [3-7, 9-15], NMI [Enabled ] IRQ 8 Break suspend [Disabled] Menu Level Ring/WOL/WOM PowerUp Contl...
  • Page 45: Pnp/Pci Configuration Option

    PNP/PCI Configuration Option These options configure how PnP (Plug and Play) and PCI expansion cards oper- ate in your system. Both the ISA and PCI buses on the Mainboard use system IRQs (Interrupt ReQuests) and DMAs (Direct Memory Access). You must set up the IRQ and DMA assignments correctly through the PnP/PCI Configurations Setup utility for the mainboard to work properly.
  • Page 46: Frequency/Voltage Control

    PC Health Status Option On mainboards that support hardware monitoring, this item lets you monitor the parameters for critical voltages, critical temperatures, and fan speeds. CMOS Setup Utility – Copyright (C) 1984 – 2001 Award Software PC Health Status Item Help Shutdown Temperature [Disabled ] CPU Core Voltage...
  • Page 47: Load Fail-Safe Defaults Option

    CPU Clock Ratio (0 X) Use the CPU Host/SDRAM/PCI Clock to set the frontside bus frequency for the installed processor (usually 133 MHz, 100 MHz or 66 MHz). Then use CPU Clock Ratio Jumpless to set a multiple. The multiple times the frontside bus must equal the core speed of the installed processor e.g., 3.5 (multiple) x 100 MHz (frontside bus) = 350 MHz (installed processor clock speed).
  • Page 48: Save & Exit Setup Option

    If you are installing a new password, type in the password. You cannot use more than eight characters or numbers. The Set Password item dif- ferentiates between upper and lower case characters. Press <Enter> after you have typed in the password. If you are deleting a password that is already installed press <Enter>...
  • Page 49: Using The Mainboard Software

    Using the Mainboard Software The support software CD-ROM that is included in the mainboard package contains all the drivers and utility programs needed to properly run the bun- dled products. Below you can find a brief description of each software program, and the location for your mainboard version.
  • Page 50: Running Setup

    Setup Click the Setup button to run the software installation program. Select from the menu which software you want to install. Browse CD The Browse CD button is the standard Windows command that allows you to open Windows Explorer and show the contents of the support CD. Before installing the software from Windows Explorer, look for a file named README.TXT, INSTALL.TXT or something similar.
  • Page 51 Click Next. The following screen appears: Check the items you want to install. The default options are recom- mended. Click Next to run the Installation Wizard. An item installation screen ap- pears: Follow the instructions on the screen to install the items. Drivers and software are automatically installed in sequence.
  • Page 52: Manual Installation

    Insert the CD in the CD-ROM drive and locate the PATH.DOC file in the root directory. This file contains the information needed to locate the drivers for your mainboard. Look for the chipset and mainboard model; then browse to the directory and path to begin installing the drivers.
  • Page 53 MediaRing Talk – Telephony Software To install the MediaRing Talk voice modem software for the built-in modem, run MRTALK-SETUP72.EXE from the following directory: \UTILITY\MEDIARING TALK Super Voice – Fax/Modem Software To install the Super Voice voice, fax, data communication application for use with the built-in fax/modem, run PICSHELL.EXE from the following directory: \UTILITY\SUPER VOICE CD Ghost...
