INSTRUCTION MANUAL
MG-2002E
MG-1002E
MG-602E
MG-302E
ECHO DUAL MIXER AMPLIFIER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MG-2002E and is the answer not in the manual?

Questions and answers

Related Manuals for Maxmeen MG-2002E

Summary of Contents for Maxmeen MG-2002E

  • Page 1 INSTRUCTION MANUAL MG-2002E MG-1002E MG-602E MG-302E ECHO DUAL MIXER AMPLIFIER...

  • Page 2: Security Precautions

    1. Security Precautions ◎ Carefully to READ the instruction in this manual before use. ◎ Certainly to OBSERVE the INSTRUCTION in this manual regard convention of safety symbols and messages ◎ Please KEEP this user MANUAL nearby for anytime reference. Safety symbol and Message Conventions Below-described safety symbols and messages are to prevent bodily injury and property damage.
  • Page 3 ■ When using the Amplifier  When found following irregular situation during amplifier is in use, immediately switch off the power, disconnect the power supply plug from the AC outlet. Don’t try to operate the amplifier again. Contact your local dealer to check the amplifier. ...
  • Page 4 ■ When Using the Amplifier  Make sure that the volume control is turned to minimum position before power is switched on. Loud sound produced at high volume when power is switched on may impair hearing.  DO NOT place heavy objects on the amplifier, for it may cause it fall and may result in body injury and/or property damage.

  • Page 5: Panel Description

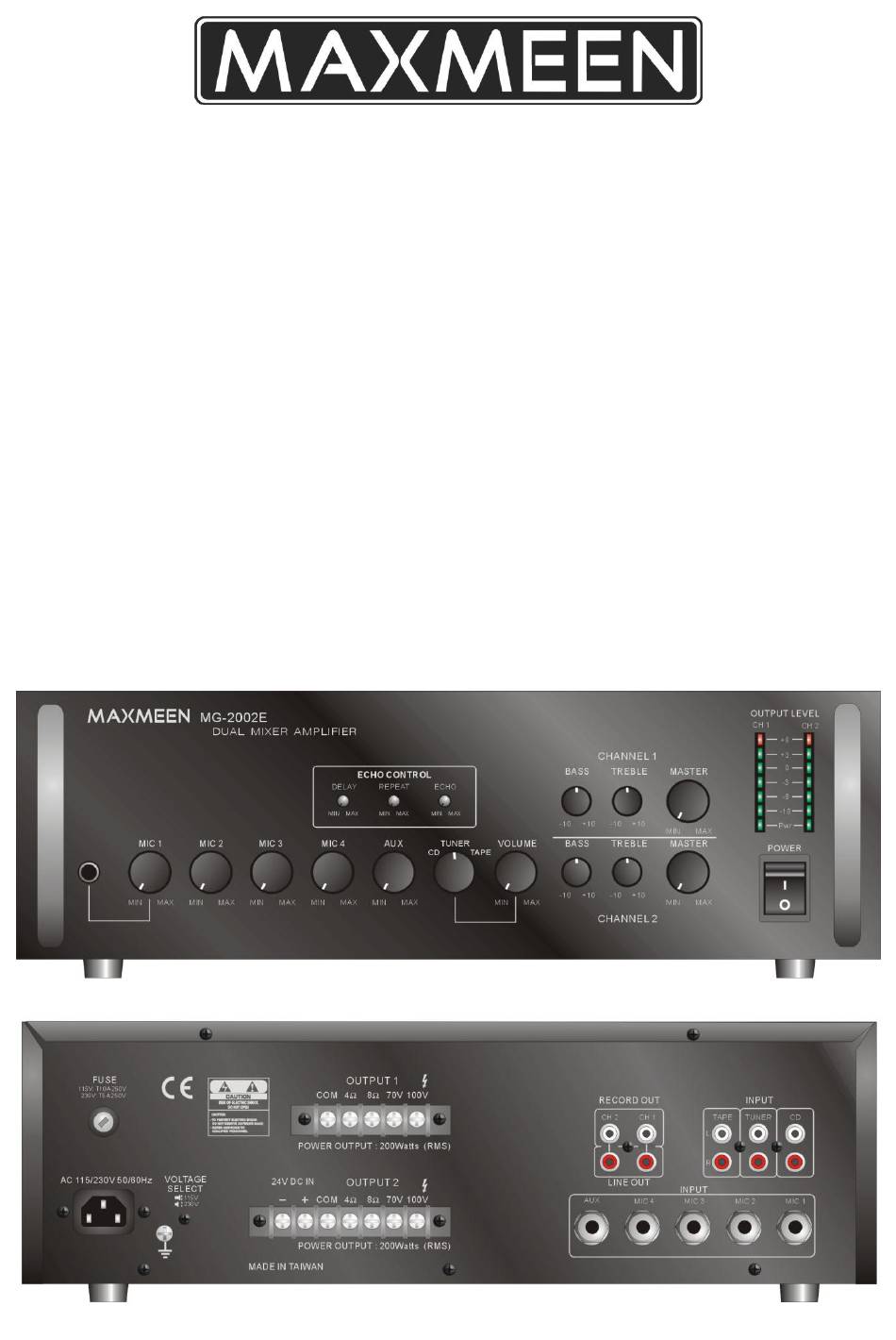

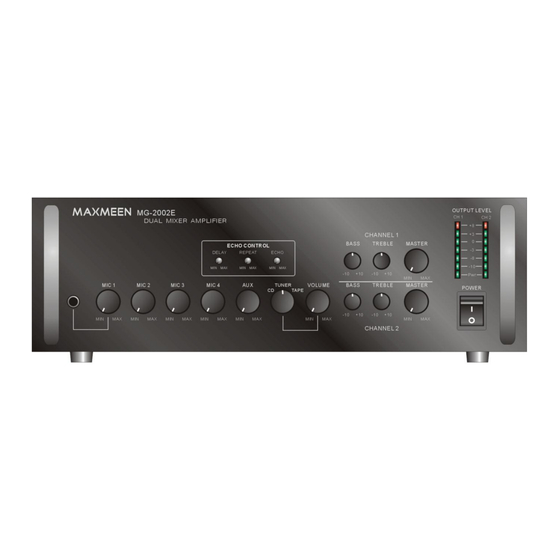

    3. Panel Description FRONT PANEL 1. MIC 1 Input 9. CH-2 Bass Control 17. CH-1 Treble Control 2. MIC 1 Level Control 10. CH-2 Treble Control 18. CH-1 Volume Control 3. MIC 2 Level Control 11. CH-2 Volume Control 19. CH-1 Power indicator LED 4.

  • Page 6: Dc Power Source

    4. Power Source  AC Power Source The supply transformer has been designed for use on either 115Vac or 230Vac, selected by a push switch on the rear panel. The amplifier is factory set at 230Vac mains voltage.  DC Power Source Battery Connection (24Vdc) When using external batteries, earth the amplifier via the screw terminal because of the high voltages present.

  • Page 7: Record Out

    There are two speaker output screw terminals. Each speaker output screw terminal allows connection of the standard low impedance of 4Ω or 8Ω loudspeakers, or 70V, or 100V line loudspeaker. Use only one of these output connections for corresponding speaker for each channel. ...

  • Page 8: Technical Specifications

    7. Technical Specifications Model No. MG-302E MG-602E MG-1002E MG-2002E Type Echo Dual Mixing Amplifier Power Supply AC 115/230V 50/60Hz, DC 24V Power Output CH1: 30W + CH1: 60W + CH1: 100W + CH1: 200W + (RMS) CH2: 30W CH2: 60W...
