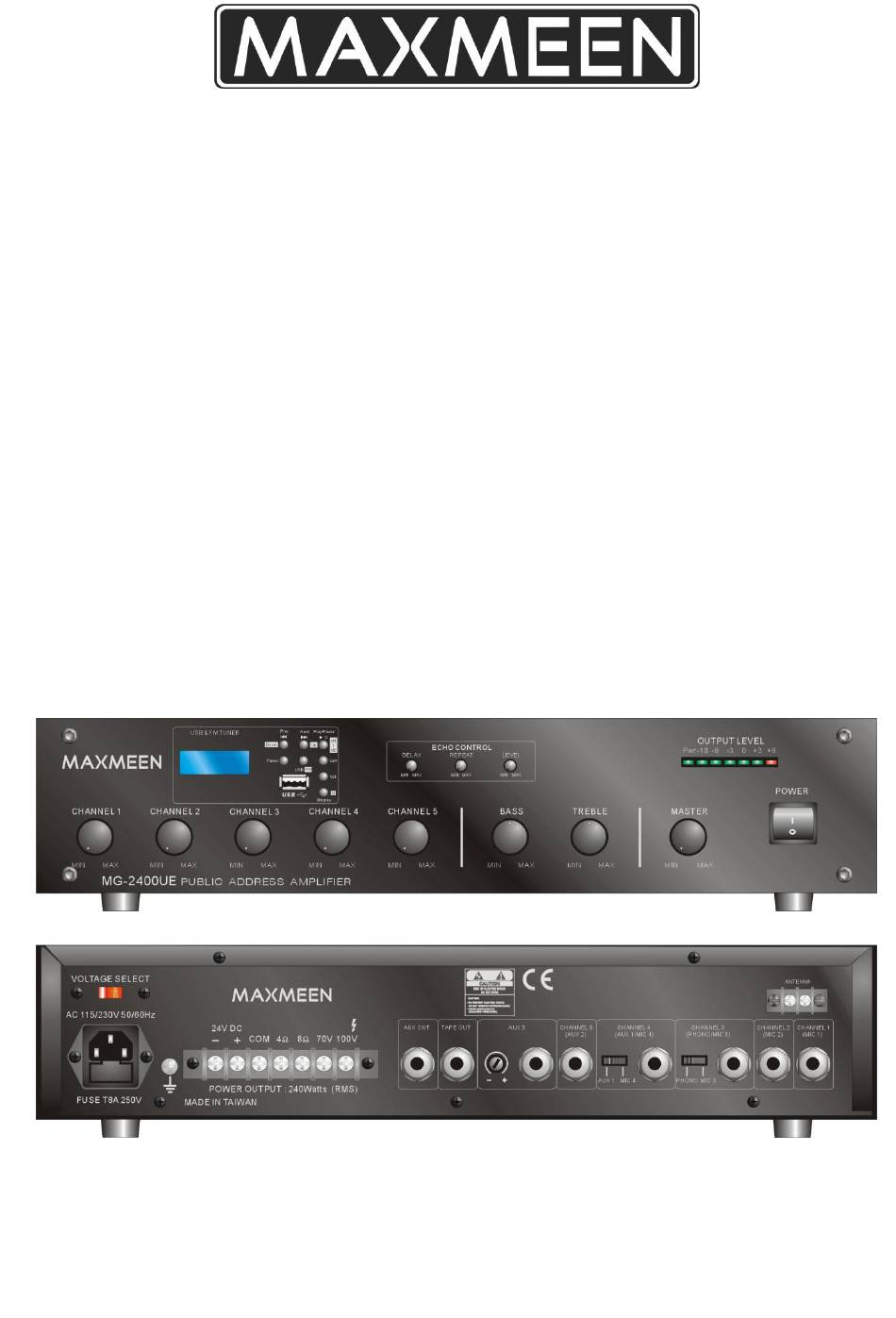

Page 1: User Manual
USER MANUAL MG-600UE MG-1200UE MG-2400UE MIXER AMPLIFIER WITH USB PLAYER , FM TUNER & ECHO... -
Page 2: Security Precautions
1.Security Precautions ◎ Carefully to READ the instruction in this manual before use. ◎ Certainly to OBSERVE the INSTRUCTION in this manual regard convention of safety symbols and messages ◎ Please KEEP this user MANUAL nearby for anytime reference. Safety symbol and Message Conventions Below-described safety symbol and messages are to prevent bodily injury and property damage. - Page 3 When using the Amplifier ■ When found following irregular situation during amplifier is in use, immediately switch off the power, disconnect the power supply plug from the AC outlet. Don’t try to operate the amplifier again. Contact your local dealer to check the amplifier. ...
- Page 4 ■ When Using the Amplifier Make sure that the volume control is turned to minimum position before power is switched on. Loud sound produced at high volume when power is switched on may impair hearing. DO NOT place heavy objects on the amplifier, for it may cause it fall and may result in body injury and/or property damage.
-
Page 5: Front Panel
3.Front Panel 1. Channel 1 Volume Control 9. Power On / Off Switch 17. Volume - 2. Channel 2 Volume Control 10. USB Socket 18. Display Mode / FM Memory 3. Channel 3 Volume Control 11. USB / FM Tuner Power Switch 19. -
Page 6: Mains Connection
5.Mains Connection The supply transformer has been designed for use on 115Vac or 230Vac . 6.Battery Connection (24Vdc) When using external batteries, earth the amplifier via the screw terminal because of the high voltage present. Electrical stability of the system is increased by earthing the case. NOTE: the connection cable must be fitted with an in-line fuse. -
Page 7: Loudspeaker Connection
12.Loudspeaker Connection Note: Use only 100V or 70V (Selectable) Line Loudspeakers. 13.Low Impedance (4Ω/8Ω) This output allows connection of standard low impedance loudspeakers, the minimum load impedance must be 4Ω/8Ω, when to or more loudspeakers are use ensure that they are wired in such a way that the load impedance is between 16Ω... -
Page 8: Specifications
17.Specifications: Type Mixer Amplifier Model MG-600UE MG-1200UE MG-2400UE Supply Mains Voltage AC 115/230V, 50/60 Hz ± 10% Battery Voltage DC 24V (MAX 10% deviation) Output power (RMS) 120W 240W Total Harmonic Distortion <= 1% at 1KHz, rated power Input Sensitivity 1/4”...
