MG-3500Z
•
MG-5000Z
•
MG-R6000
INSTALLATION
AND
OPERATION MANUAL
SIX ZONE MIXER AMPLIFIERS
WITH MP3/FM/BLUE TOOTH
CAUTIONS:
Please read this manual carefully before operating.
Do not open the equipment cover arbitrary, so as not
to electric shock.
Please contact the professions to maintain if necessary.
MADE IN CHINA
Advertisement
Table of Contents
Related Manuals for Maxmeen MG-3500Z
Summary of Contents for Maxmeen MG-3500Z
-
Page 1: Operation Manual
MG-3500Z • MG-5000Z • MG-R6000 INSTALLATION OPERATION MANUAL SIX ZONE MIXER AMPLIFIERS WITH MP3/FM/BLUE TOOTH CAUTIONS: Please read this manual carefully before operating. Do not open the equipment cover arbitrary, so as not to electric shock. Please contact the professions to maintain if necessary. - Page 2 SAFTY WARNINGS ! Read and keep these instructions. Heed all warnings and follow all instructions. Do not use this apparatus near water. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug.
- Page 3 INTRODUCTIONS DESCRIPTION The PA 6 Zone Mixer Amplifier with MP3, FM tuner & blue tooth, its rated power output of 350W/500W, it is ideal for school, super market, bank, hotel BGM and speech use. It is all in one solution with two sources, preamplifier and mixer power amplifier into one 19”...
-
Page 4: Front Panel

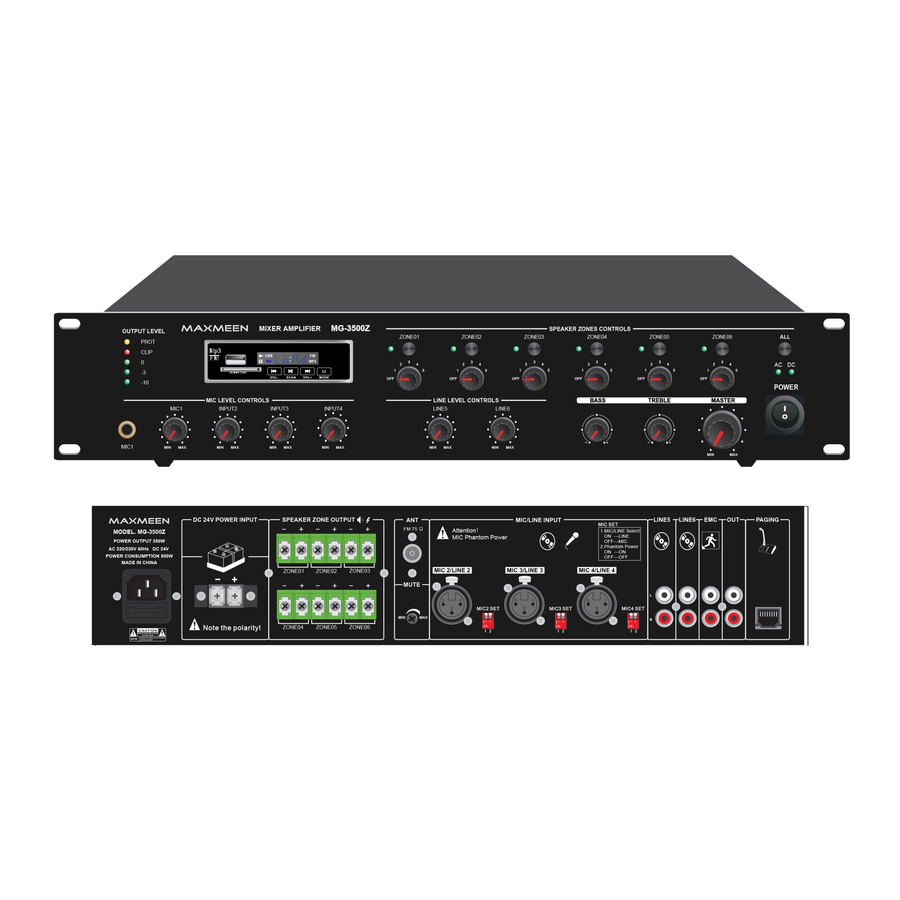

FRONT PANEL (MG-3500Z/MG-5000Z) SPECIFICATION SHEET Model MG-3500Z MG-5000Z Description 6 Zone Mixer Amplifiers with Mp3/FM/BT 350W Rated Power Output 500W Speaker Output 100V of 6 zones Input Mic1-4: 2.5mV, Line1-2: 250mV; EMC: 250mV Frequency Response 80-16KHz Protection Indicator. 10. Mic1 Input with VOX priority except EMC Input. -
Page 5: Connection Diagrams
DESCRIPTION MG-R6000 is a remote paging microphone work with MG-3500Z/MG-5000Z series amplifier, which is of 6 zone paging features, its communication distance up to 300 meters through straight CAT6 cable, each amplifier capacity of connection up to 6 units of remote paging microphone, these microphone are connected hand-by hand. -
Page 6: Operation Step
OPERATION STEP AMPLIFIER OPERATION GUIDANCE When all connections to the amplifier are made, turn all rotary controls down and switch on the power and a power “ON” LED 100V LINE SYSTEM will illuminate. Turn BASS and TREBLE controls to the 12 o’clock position (pointing straight up) and turn MASTER rotary For 100V line systems, connect the amplifier to the first speaker in the system using double -insulated speaker wire which has control up part way for testing.
