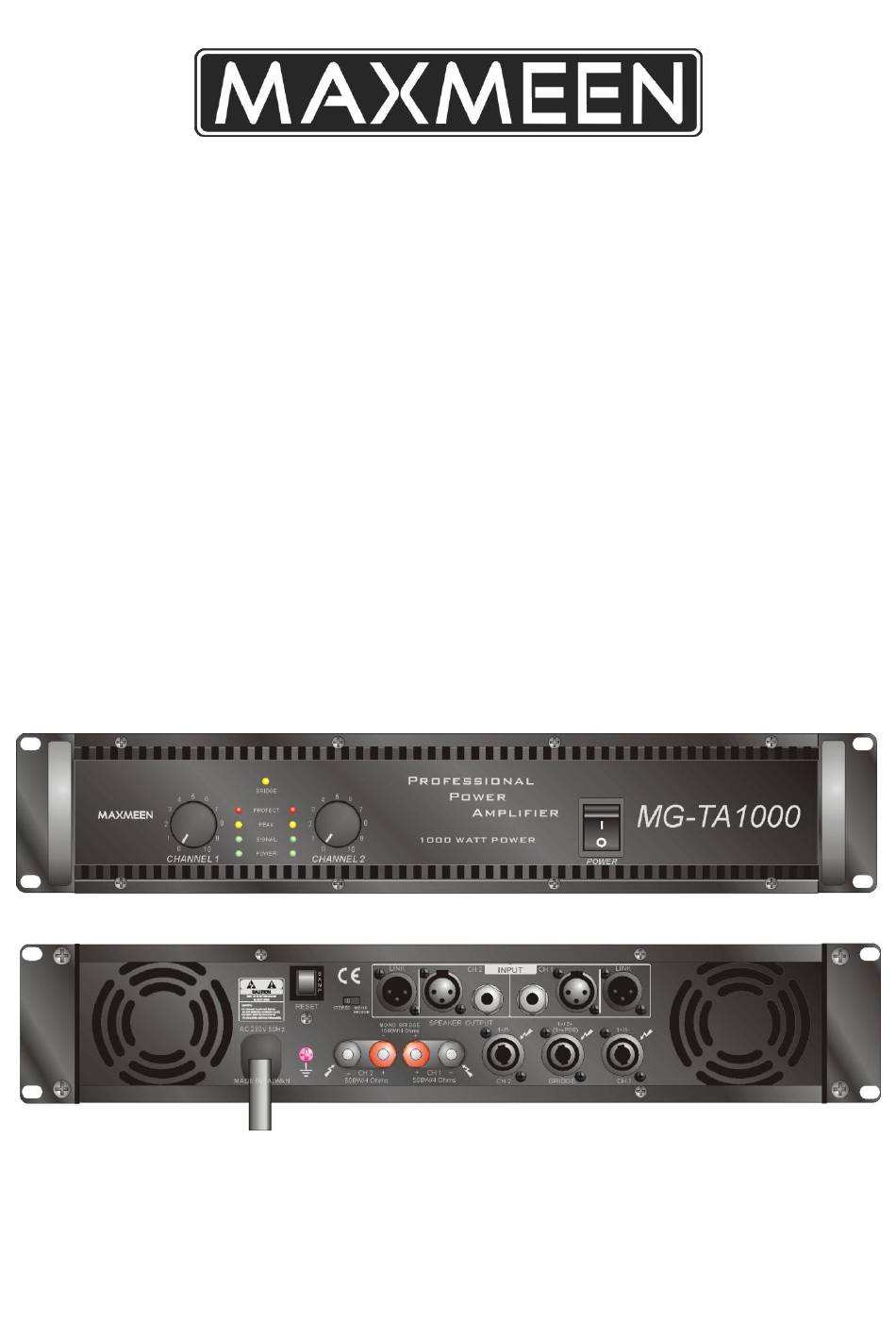

- Page 1 USER MANUAL MG-TA1000 POWER AMPLIFIER...
-
Page 2: Safety Instructions
INDEX: INTRODUCTION SAFETY INSTRUCTIONS OPERATING PRECAUTIONS FEATURES OF PANAL CONTROLS FRONT & REAR PPANEL DISPLAY CONNECTING INPUTS SPEAKER CONNECTIONS INTRODUCTION Taking this opportunity, we express our heartful thanks to clients who purchased out products. Whole member of our Company, with a pride of long history and tradition, are paying hardest efforts to turn out products which can go with consumers’... - Page 3 instructions or as marked on the appliance. 11. Grounding or polarization Precautions should be taken so that the grounding or polarization means of a appliance is not defeated. 12. Cleaning The appliance should be cleaned only as recommended by the Manufacturer. 13.
- Page 4 Bridge LED lights when Bridge mode is active. 4. PROTECT LED protect LED lights when protect function is active. 5. CLIP LED All Main amplifiers features eight front panel LED indicators(four per channel: Clip, Signal, Protect, and Power) to inform the user of each channel’s operating status and warn of possible abnormal function.
-
Page 5: Connecting Inputs
FRONT & REAR PANEL DISPLY CONNECTING INPUTS Example: 1. Driving a single 8 ohm speaker with the combined 4 ohm power of both channel 2. Driving a single 4 ohm speaker with the combined 2 ohm power of both channel Precautions: 1. -
Page 6: Speaker Connections
Balanced signals are less prone to AC hum, but unbalanced signals can be suitable for short cable runs. The signal source’s output impedance should be less thank 600 ohms to avoid high frequency loss in long cables. Balanced inputs: Use the XLR or 1/4-inch(6.3mm) TRS input jacks, or the barrier strip. Unbalanced inputs: Connect the unused side of the balanced input to ground, as shown above left. - Page 7 Speaker TM Output: The PMA amplifier offers a choice of output connections, with two Neutrik NL4MD speakon jacks and two pairs of “touch-proof” binding posts. The speakon connector is designed specially for high-power speaker connections. It locks in place, prevents shock hazard, and assures the correct polarity. The upper speakon jack has both Channel 1 and Channel B output, so it is especially useful for parallel, bi-amp, or bridged mono operation.
-
Page 8: Speaker Cabling
SPEAKER CABLING: Larger wire sizes and shorter lengths minimize both loss of power and degradation of damping factor. Do not place speaker cables next to input wiring. WARNING: To prevent electric shock, do not operate the amplifier with any of the conductor portion of the speaker wire exposed. - Page 9 SPEAKER CABLING Larger wire sizes and shorter length minimize both loss of power and degradation of damping factor. Do not place speaker cables next to input wiring. Series MG-TA1000 Technical Specifications Type Power Amplifier Model MG-TA1000 Supply Mains Voltage AC 230V, 50Hz ± 10% 500Wx2@4Ω1%THD...
