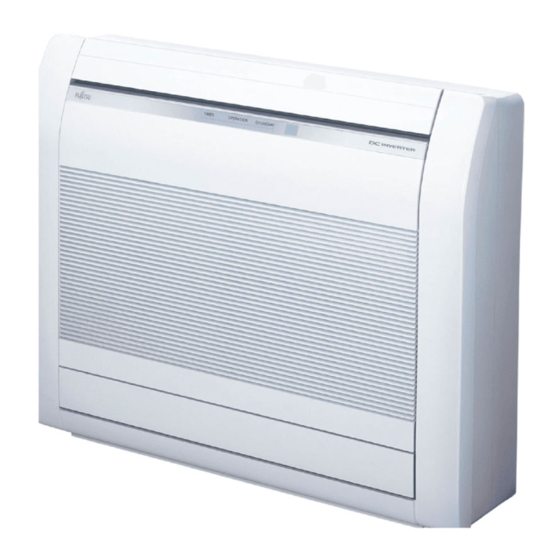

Fujitsu Suelo AGY40-KV Operation Manual
Hide thumbs Also See for Suelo AGY40-KV:

Advertisement

Quick Links

OPERATION MANUAL
MODEL:
* Please write down the model name.
(Refer to the rating label.)
* Bitte schreiben Sie den Modellnamen auf.
(Siehe Typenschild)
* Veuillez écrire le nom du modèle.
(Consultez l'étiquette des spécifi cations.)
* Anote el nombre de modelo.
(Consulte la etiqueta de califi cación).
* Annotare il nome del modello.
(Fare riferimento all'etichetta delle specifi che).
* Καταγράψτε το όνομα μοντέλου.
(Ανατρέξτε στην ετικέτα τεχνικών στοιχείων.)
* Registe o nome de modelo.
(Consulte a etiqueta de classifi cação.)
* Запишите название модели.
(См. на паспортной табличке.)
* Lütfen model adını not ediniz.
(Derece etiketine bakınız.)
PART No. 9378532090
AIR CONDITIONER (Floor type)
Before using this product, read these instructions thoroughly
and keep this manual for future reference.
BEDIENUNGSANLEITUNG
Bevor Sie dieses Produkt verwenden, lesen Sie diese
Anweisungen sorgfältig durch und bewahren Sie diese
Anleitung für späteres Nachschlagen auf.
Avant d'utiliser ce produit, veuillez lire attentivement ces
instructions. Conservez ce manuel pour référence future.
MANUAL DE FUNCIONAMIENTO
ACONDICIONADOR DE AIRE (Tipo suelo)
Antes de utilizar el producto, lea estas instrucciones detenida-
mente y conserve este manual para consultarlo en el futuro.
CONDIZIONATORE D'ARIA (Tipo da pavimento)
Prima di utilizzare l'apparecchio, leggere attentamente
le presenti istruzioni e conservare il manuale per poterlo
ΚΛΙΜΑΤΙΣΤΙΚΟ (Επιδαπεδιου τυπου)
Προτού χρησιμοποιήσετε το προϊόν, διαβάστε προσεκτικά τις
παρούσες οδηγίες και φυλάξτε το παρόν εγχειρίδιο, ώστε να
μπορείτε να ανατρέχετε σε αυτό στο μέλλον.
MANUAL DE FUNCIONAMENTO
AR CONDICIONADO (Tipo de chão)
Antes de utilizar este produto, leia atentamente estas instruções
e guarde este manual para referência futura.
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
КОНДИЦИОНЕР ВОЗДУХА (Напольный тип)
Перед эксплуатацией устройства внимательно
ознакомьтесь с данным руководством и сохраняйте его для
Bu ürünü kullanmadan önce verilen talimatları dikkatlice okuyun
ve daha sonra tekrar faydalanmak üzere saklayın.
OPERATION MANUAL
KLIMAANLAGE (Boden Typ)
MODE D'EMPLOI
CLIMATISEUR (Type àu sol)
MANUALE DI ISTRUZIONI
consultare il futuro.
ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
использования в будущем.
KULLANIM KILAVUZU
KLİMA (Zemin tipi)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Suelo AGY40-KV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fujitsu Suelo AGY40-KV

  • Page 1 OPERATION MANUAL OPERATION MANUAL AIR CONDITIONER (Floor type) Before using this product, read these instructions thoroughly and keep this manual for future reference. BEDIENUNGSANLEITUNG KLIMAANLAGE (Boden Typ) Bevor Sie dieses Produkt verwenden, lesen Sie diese Anweisungen sorgfältig durch und bewahren Sie diese Anleitung für späteres Nachschlagen auf.
  • Page 2: Table Of Contents

    [Original Instructions] Contents CAUTION This symbol shows that the operation manual should 1. SAFETY PRECAUTIONS .......... 1 be read carefully. CAUTION 2. PREPARATION ............2 This symbol shows that a service personnel should 3. NAME OF PARTS ............. 3 be handling this equipment with reference to the 3.1.
  • Page 3: Preparation

    WARNING CAUTION • This product is not intended for use by persons • Do not touch the aluminum fi ns of heat exchanger (including children) with reduced physical, sensory built-in this product to avoid personal injury when you or mental capabilities, or lack of experience and maintain the unit.
  • Page 4: Name Of Parts

    *1) Before starting operation, make sure that the intake grille is closed Battery loading and remote controller preparation completely. Incomplete closing may affect the proper function or (R03/LR03/AAA x 2) performance of the product. *2) Indicator lamps light in the following conditions. It cannot see when the indicator lamp is off.
  • Page 5 CAUTION • To prevent malfunction or damage of the remote controller: - Place remote controller at where will not be exposed to direct sunlight or excessive heat. - Remove batteries if the product is not going to be used for an extended period. •...
  • Page 6: Basic Operations

    5.2. Airfl ow direction setting 4. BASIC OPERATIONS For details of the airfl ow ranges, refer to “Airfl ow direction  3 steps to start operation range”. 1. Press to start or stop the operation.  Up and down airfl ow direction setting 2.
  • Page 7: Timer Operations

    • How to set to blow out air from the upper and lower air outlets. 6.1. Weekly timer Air Outlet Selection switch  Setting details Upper airfl ow Upper and lower airfl ow 1. Select Weekly timer in step 2 of “Timer setting procedure”. 2.
  • Page 8: On Timer Or Off Timer

     Examples of Weekly timer 7. ENERGY SAVING OPERATION Example 1 7:00 9:00 11:00 17:00 23:00 7.1. Economy operation Monday Program 1 Program 2 Program 3 Program 4 It saves more electricity than other operation modes by changing the set Friday 26 °C 28 °C...
  • Page 9: C Heat Operation

    NOTES: 10. CLEANING AND CARE • This operation cannot be performed simultaneously with the Fan mode, Dry mode, and Powerful operation. • If the wired remote controller (optional) is connected, this function is CAUTION restricted. • Before cleaning this product, be sure to turn it off and 8.3.
  • Page 10 2. Remove the air fi lter. 8. Set the new or washed air cleaning fi lters into the air cleaning fi lter frames. Lift up the air fi lter and pull out. NOTES: Use the Apple-catechin fi lter as soon as possible after opening the package.
  • Page 11: General Information

    11. GENERAL INFORMATION 12. OPTIONAL PARTS  Heating performance 12.1. Wired remote controller This air conditioner operates on the heat-pump principle, absorbing heat from air outdoors and transferring that heat to the indoor unit. As a The optional wired remote controller can be used. result, the operating performance is reduced as outdoor air temperature drops.
  • Page 12: Troubleshooting

    ● The operating mode (Heating mode or Cooling (Dry) mode) of the out- Airfl ow is weak or stops. door unit will be determined by the operating mode of the indoor unit □ Is the fan speed set to Quiet? that was operated fi...
  • Page 13  Manual Auto operation and Filter indicator - The product starts to run on its own You can operate the air conditioner with on the indoor □ Is the [ ] indicator on the indoor unit blinking? (Refer to unit. State of indicator lamps.) Status Time to keep pressing...
