ATELIER F/R – Business Line Door Hinge with fixing plate
Assembly Instruction
7
Assembly Instruction
ATELIER F/R – Business Line Door Hinge with fixing plate
ƒ Torque setting 12 Nm/Allen key SW4.
ƒ The figure shows the product in one of sev-
eral available optical versions. This assembly
instruction applies for every version.
ATTENTION! Glass and gaskets have to
be dust- and grease free – if necessary, please
clean with standard glass cleaner.
2
3
5
6
4 1.2

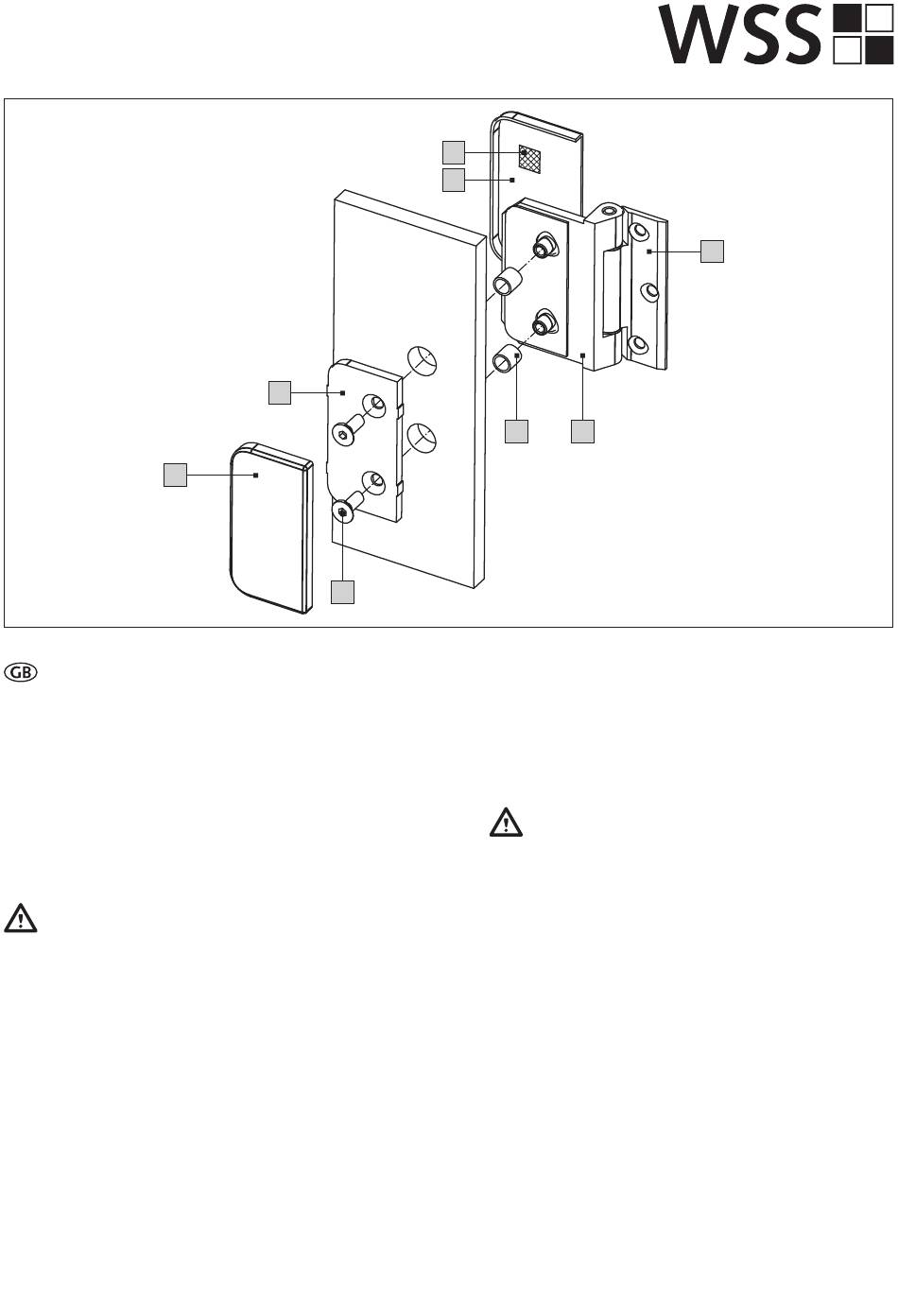

1. Fixing plate 1.1 to frame.
ATTENTION! Check if the hinges are
arranged plumb and all screws and grub
screws are tight.
2. Insert isolation sleeves 4 on hinge part 1.2.
3. Place door on assembling wedges into the
frame and fold inge part 1.2 to door leaf.
4. Install clamping plate 2 with hinge part 1.2
and fixing screws 3 to door leaf (torque
setting 12 Nm).
5. Install cover 6 to hinge part 1.2 using ad-
hesive pads 5.
6. Place cover 7 consistently on clamping
plate 2 and press.
1.1
