Summary of Contents for Veratron LINK UP Series

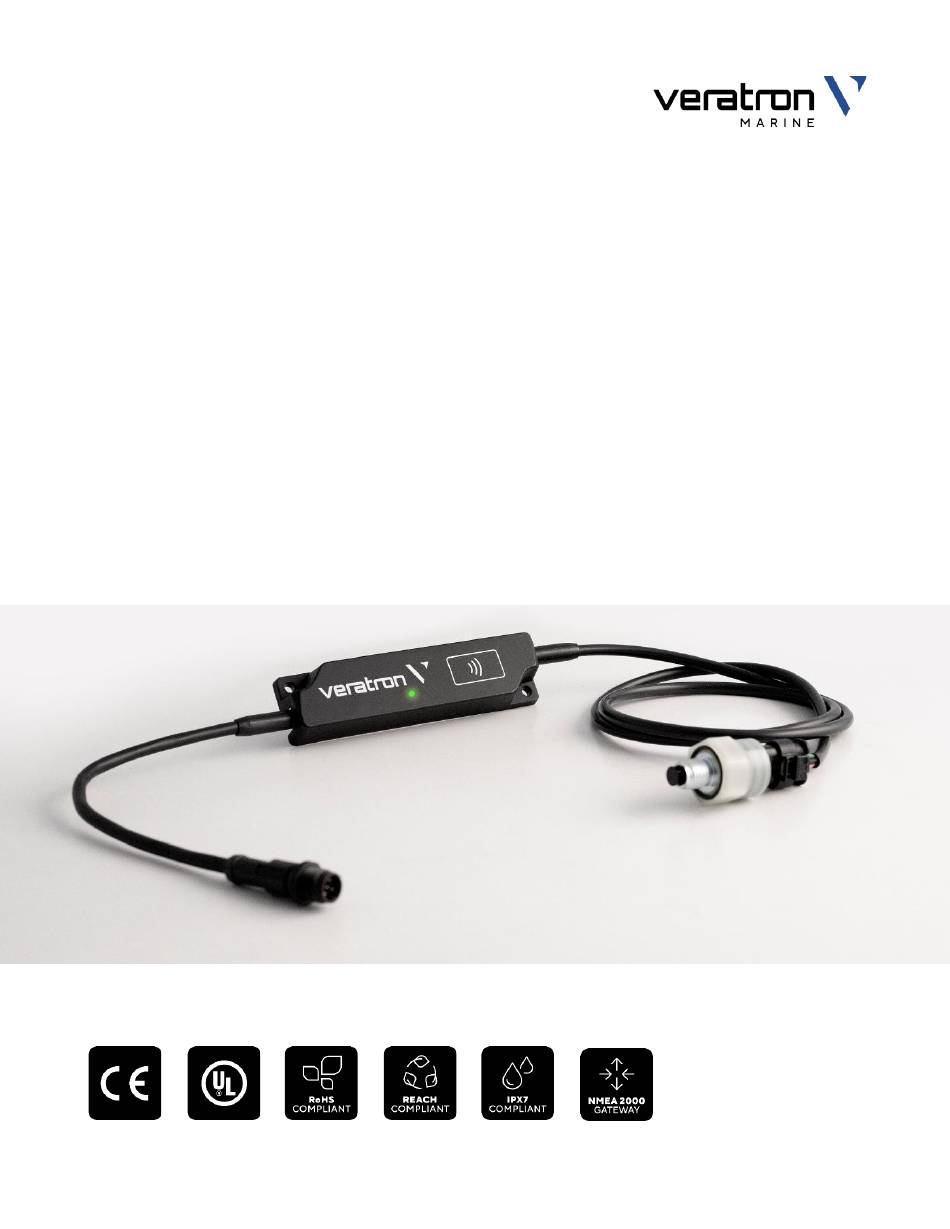

- Page 1 LINK UP GATEWAYS SERIES LINK UP 2-in-1 FOR COMBINED TEMPERATURE AND PRESSURE SENSOR OPERATING INSTRUCTIONS rev. AA B001032...
-
Page 2: Table Of Contents
CONTENT CONTENT Introduction Safety information System installation Configuration Technical data B001032... -
Page 3: Introduction

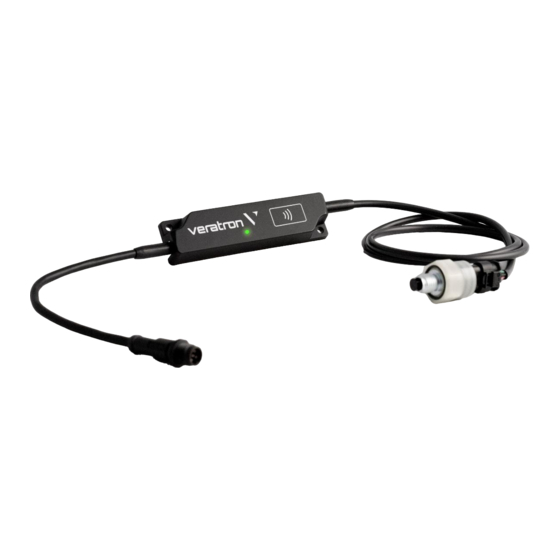

INTRODUCTION INTRODUCTION PACKAGING CONTENT 1x Link Up gateway (B00070501) Interfaces the 2-in-1 Temperature & Pressure Sensor with the NMEA 2000® network to make all the information available for any display. Wireless configurable, the Link Up gateway can be easily set up with your smartphone and the Link Up configurator App. - Page 4 Rooms, making it compliant to the ISO 8846:1990 as requested The sensor connection happens through a Hirschmann 3way 1.2 by the directive 2013-53(EC). SealStar FA Connector, which perfectly matches the Veratron 2- in-1 sensor, without the need of additional wiring (fig.1). Link Up connection to a Veratron 2-in-1 sensor...
-
Page 5: Safety Information
• classified commercial shipping. Modifications or manipulations to veratron products can • Use our product only as intended. Use of the product for affect safety. Consequently, you may not modify or... - Page 6 SAFETY INFORMATION • • Pay attention to how lines and cable harnesses are laid so Use only the multimeter or diode test lamps provided, to that you do not drill or saw through them! measure voltages and currents in the vehicle/machine or •...
-
Page 7: System Installation
SYSTEM INSTALLATION SYSTEM INSTALLATION WARNING Before beginning, disconnect the negative terminal on the battery, otherwise you risk a short circuit. If the vehicle is supplied by auxiliary batteries, you must also disconnect the negative terminals on these batteries! Short circuits can cause fires, battery explosions and damages to other electronic systems. - Page 8 SYSTEM INSTALLATION CONNECT TO THE NMEA 2000® NETWORK Connect the sensor and the Link Up gateway with the 3-pin connector (Hirschmann 3way 1.2 SealStar FA Connector). Now interface the Link Up gateway to the NMEA 2000® backbone through the dedicated plug. Please ensure to tighten the M12 connector by screwing it onto its counterpart, so to preserve the water tightness.
-
Page 9: Configuration
CONFIGURATION CONFIGURATION LINK UP CONFIGURATOR APP To configure the sensor, some parameters must be calibrated A simple and detailed explanation of the configuration process through the Link Up gateway, like sensor type, engine instance is also available as in-app instructions. or warning threshold. - Page 10 CONFIGURATION 2. After the readout, the App will show the “Configuration Summary”, which displays all the current settings of the device. To modify the configuration, press the “Change Configuration” button. 3. As a first step, choose your sensor type out of the options in the first box.
- Page 11 CONFIGURATION 5. To download the configuration, simply “tap” the smartphone again onto the Link Up wireless area, as described on step 1. The configuration is instantaneously transferred to the device, and the new “Configuration Summary” is displayed. LED NOTIFICATION LED behavior Description Device not powered.
-
Page 12: Technical Data
TECHNICAL DATA TECHNICAL DATA LINK UP DATASHEET Operating voltage 6 – 16.5 V Nominal voltage 12 V (from NMEA 2000® network) Power consumption ≤ 100 mA NMEA 2000® LEN Protection class IP X7 according to IEC60529 (when connected) Operating temperature -30°C to 80°C Flammability UL94-HB... - Page 13 TECHNICAL DATA DIMENSIONS LINK UP DIMENSIONS 2-IN-1 SENSOR B001032...
- Page 14 TECHNICAL DATA PINOUT Pin No. Description Shield NET-S (V+) NET-C (V-) NET-H (CAN Hi) NET-L (CAN Lo) Micro-C M12 5-poles plug Male, product side view Pin No. Wire color Description Power – 5V (Provided by the Link Up) 1 2 3 Black Green PWM output...
- Page 15 AG, except for the following actions: • Printing the document in its original format, totally or partially. • Copying contents without any modifications and stating Veratron AG as copyright owner. Veratron AG reserves the right to make modifications or improvements to the relative documentation without notice.
