Installation Manual

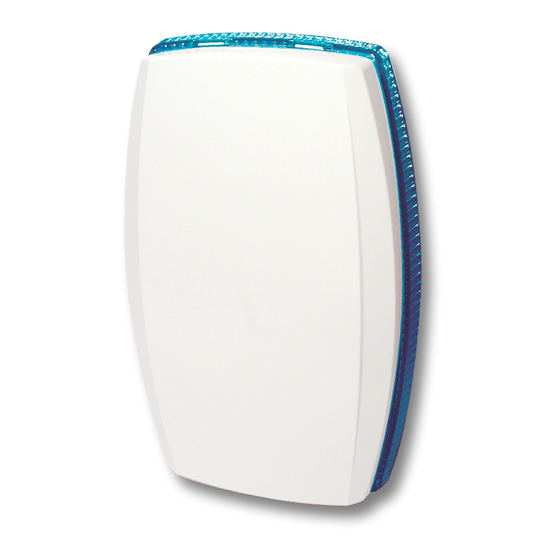

Premier Elite Odyssey-W Series
INS595-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premier Elite Odyssey-W Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Texecom Premier Elite Odyssey-W Series

  • Page 1 Installation Manual Premier Elite Odyssey-W Series INS595-4...
  • Page 2: Table Of Contents

    Content 1.0 Introduction ..........................1.1 System Compatibility ......................1.2 Battery Compartment ......................1.3 PCB Layout .......................... 1.4 Learning the Sounder ......................1.5 LED Indications ........................1.6 Hold Off Mode ........................1.7 Mounting the Unit ......................1.8 Rear Tamper ........................1.9 Installing The Cover ......................
  • Page 3: Introduction

    1.0 Introduction The Premier Elite Odyssey-W sounders are currently available in as; Premier Elite Odyssey 1-W,2-W,3-W,4-W & 5-W. With Ricochet® mesh technology it is now even easier to add a wireless sounder to your security system. As the device is self powered the only limit on the number of units you can put on a system is determined by how many free Ricochet enabled zones you have available.
  • Page 4 3. Install Batteries into Holder INS595-4 4/20...
  • Page 5 4. Clip Holder (bottom first) back into place & connect battery pack to INS595-4 5/20...
  • Page 6 5. Learn sounder to panel 6. Make Jumper selection for LED ON/OFF 7. Make Jumper Selection for Sounder Time 8. Close the Battery Compartment INS595-4 6/20...
  • Page 7: Pcb Layout

    All eight batteries (supplied) must be installed with the correct polarity. Failure to do so will result in the device reporting a battery fault. If 1-2 batteries are incorrectly fitted the firmware will detect this on power up and flash both comfort LED’s for approximately 10 minutes.
  • Page 8 INS595-4 8/20...
  • Page 9: Learning The Sounder

    1.4 Learning the Sounder As with all Ricochet enabled devices, the sounder should be learned to the control panel along with all other devices BEFORE it is installed in it's final location. The Premier Elite Odyssey-W's are learned to a Zone on the control panel in the same way that Ricochet enabled detection devices are.
  • Page 10: Led Indications

    The Odyssey-W has no Learn Switch, learning is initiated by connecting the batteries via the Power Jumper To learn the Odyssey-W to the system follow the diagram below. If you need to delete the device from the system you should first put it into "hold off...
  • Page 11: Hold Off Mode

    1.6 Hold Off Mode For safety reasons, each Texecom sounder and strobe unit incorporates a unique patented engineer Hold‑Off mode. This mode prevents the unit from self-activating during installation and maintenance, thereby allowing only bona fide engineers access to the unit without any loss of tamper protection. The sounder can be put in hold-off...
  • Page 12: Rear Tamper

    Good wireless signal The wireless signal may be checked before final installation by depressing the tamper switch briefly. The Right LED will flash to indicate communication and will the go solid for 3 seconds to indicate a successful connection. Highly prominent for maximum deterrence Additional shelter (e.g.
  • Page 13 INS595-4 13/20...
  • Page 14 INS595-4 14/20...
  • Page 15: Installing The Cover

    Adjusting Tamper Sensitivity If greater wall/lid tamper sensitivity is required, the microswitch position can be adjusted by loosening the locking screw and altering the orientation of the microswitch as shown. 1.9 Installing The Cover INS595-4 15/20...
  • Page 16: Commissioning

    1.10 Commissioning Once the installation is complete the sounder should be tested to confirm correct operation. This can be achieved by utilising the Bell/Strobe test facility in the "Engineer Utilities" menu. INS595-4 16/20...
  • Page 17: Technical Specification

    1.11 Technical Specification Environmental Electrical Volume 105dB Peak at 1m Supply 12V DC (A Weighting, 90°) Voltage: Battery 8 x Lithium type AA Type: 1.5V High Power 320lm LED Strobe: Acoustic Varying Sound Flash Rate: 1Hz (typical)* Output Output Cut-Off Time: 15 minutes or 3 minutes(selectable) Waterproof...
  • Page 18: Standards

    Odyssey 5-W Premier Elite 310mm x 196mm x Odyssey 4-W 58.5mm Premier Elite 284 mm x 256 mm x Odyssey 5-W 68 mm 1.12 Standards Texecom declares that this product complies with the requirements of the following directives: INS595-4 18/20...
  • Page 19: Warranty

    Grade 2 and Environmental Class IV. 1.13 Warranty All Texecom products are designed for reliable, trouble-free operation. Quality is carefully monitored by extensive computerised testing. As a result the Premier Elite Odyssey -W are covered by a two year warranty against defects in material or workmanship (details on request).
  • Page 20 Due to our policy of continuous improvement Texecom reserve the right to change specification without prior notice. Odyssey is a trademark of Texecom Ltd. Premier & Premier Elite are trademarks of Texecom Ltd INS595-4 20/20...
