- Page 1 Installation Manual Premier Elite Odyssey- W Series INS595-3...
-
Page 2: System Compatibility

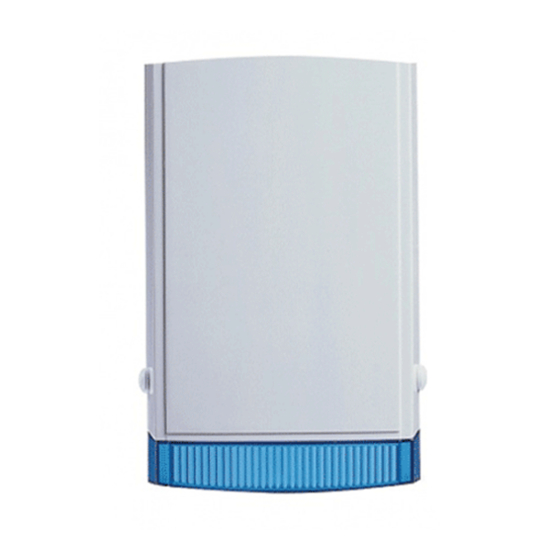

Premier Elite Odyssey-W Installation Manual Introduction The Premier Elite Odyssey-W sounders are currently available in as; Premier Elite Odyssey 1-W,2-W,3-W,4-W & 5-W. With Ricochet ® mesh technology it is now even easier to add a wireless sounder to your security system. As the device is self powered the only limit on the number of units you can put on a system is determined by how many free Ricochet enabled zones you have available. -
Page 3: Pcb Layout
Premier Elite Odyssey-W Installation Manual PCB Layout Symbol Description The battery pack should be connected here after installing the batteries. Powering the sounder on for the first time starts the learn process. Once learned the "POWER" jumper should be left in the "ON" position. ... -
Page 4: Led Indications
Hold Off Mode For safety reasons, each Texecom sounder and strobe unit incorporates a unique patented engineer Hold-Off mode. This mode prevents the unit from self-activating during installation and maintenance, thereby allowing only bona fide engineers access to the unit without any loss of tamper protection. -
Page 5: Mounting The Unit
Premier Elite Odyssey-W Installation Manual When the outer cover is replaced and the tamper circuit is closed, the LEDs will alternate rapidly, confirming that the tamper circuit is secure and signalling that self activation on tamper will be re-enabled within 2 minutes, after which the LEDs will alternate slowly to signal normal operation. -
Page 6: Installing The Cover
Premier Elite Odyssey-W Installation Manual Odyssey 5 Rear Tamper Adjusting Tamper Sensitivity If greater wall/lid tamper sensitivity is required, the microswitch position can be adjusted by loosening the locking screw and altering the orientation of the microswitch as shown. Installing The Cover Premier Elite Odyssey 1-W Premier Elite Odyssey 2-W Premier Elite Odyssey 3-W... -
Page 7: Technical Specification
Odyssey -W are covered by a two year warranty against defects in material or workmanship (details on request). Because the Premier Elite Odyssey -W Series are not complete alarm systems but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that a unit failed to function correctly. - Page 8 Texecom Limited, Bradwood Court, St. Crispin Way, Haslingden, Lancashire BB4 4PW, England. Technical Support: UK Customers Tel: 08456 300 600 (Calls charged at 3.36 pence per minute from a BT landline. Calls from other networks may vary.) International Customers Tel: +44 1706 233875 Email: techsupport@texe.com...
