Index:
1. User Manual
1a. Buttons
1b. Mode (thermostat operating functions)
2. General Information
2a. Explanation of text/symbols on the main screen
2b. Time setting
2c. standard automatic and custom automatic program
2d. Back up Battery
3. Electrical installation Manual
3a. Attention
3b. Installer instructions
3c. Connection schedule
3d. Technical data
4. Technical support
1. User Manual
1a. Buttons:
= On/off Button:
-
Turns the Screen on and off
= Mode
-
Changes if Thermostat is in manual, automatic or Holiday mode
-
Used to confirm selection

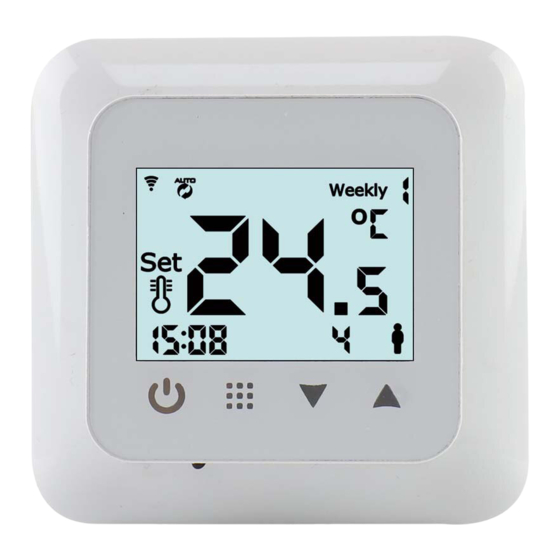

SF300 Thermostat
Advertisement
Table of Contents
Related Manuals for Klima SF300
Summary of Contents for Klima SF300
- Page 1 SF300 Thermostat Index: 1. User Manual 1a. Buttons 1b. Mode (thermostat operating functions) 2. General Information 2a. Explanation of text/symbols on the main screen 2b. Time setting 2c. standard automatic and custom automatic program 2d. Back up Battery 3. Electrical installation Manual 3a.
- Page 2 = - Key (Down arrow) Used to scroll down through options Used to lock the screen = + Key (Up arrow) Used to scroll up through options 1b. Mode (thermostat operating functions) A. Automatic: The thermostat will switch on according to the programmed settings. This can be the Factory default settings of the Custom settings.
- Page 3 2b. Time Setting To set the time and date do the following: 1) When the temperature is in the middle of the screen, Long press the until “01” appears in the middle of the screen 2) When “01” appears in the middle of the screen press the ONCE 3) The minutes will flash first press the until it’s the correct minutes and then...
- Page 4 1) Firstly, decide how you want to setup the program Option 1) come on Mon – Friday at one time and then Saturday - Sunday at another time Option 2) come on Mon – Saturday and another time on Sunday Option 3) come on the same time Monday –...
- Page 5 3.Electrical installation Manual 3a. Attention: Before installation or re-installation of the thermostat always isolate the power to the thermostat. Installation needs to be done by a qualified electrician in accordance with all current wiring and building regulations. 3b. Installer Instructions: Check the power is off.
- Page 6 4.Technical Support If you require any assistance or have questions or enquiries about the controller, then please contact us via phone or email or ask questions on our website. Phone: 01887 822020 Email: Technical@klima.co.uk Website: www.klima.co.uk...
