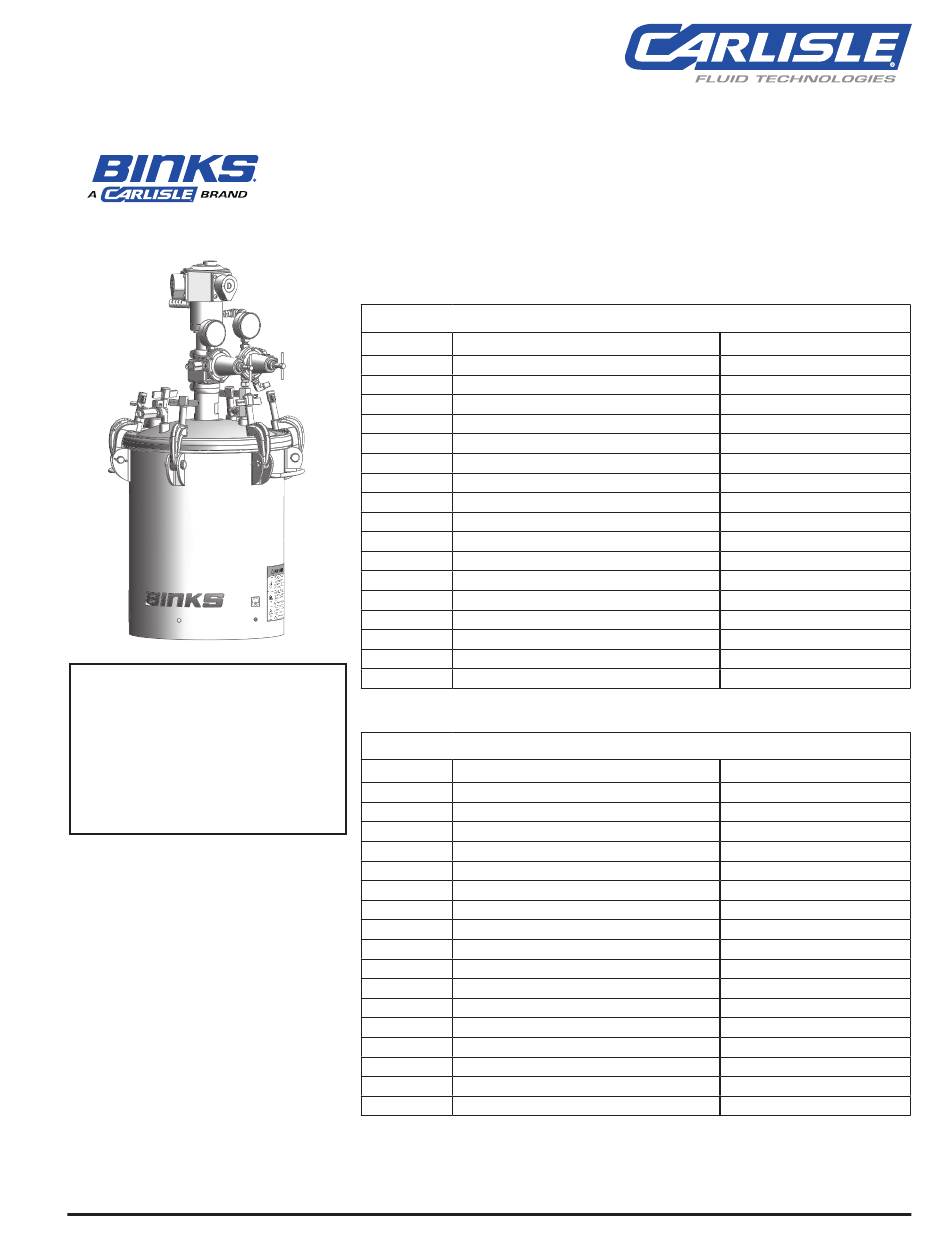

SERVICE MANUAL
EN
Important:
Read and follow all
instructions and SAFETY
PRECAUTIONS before
using this equipment.
Retain for future
reference.

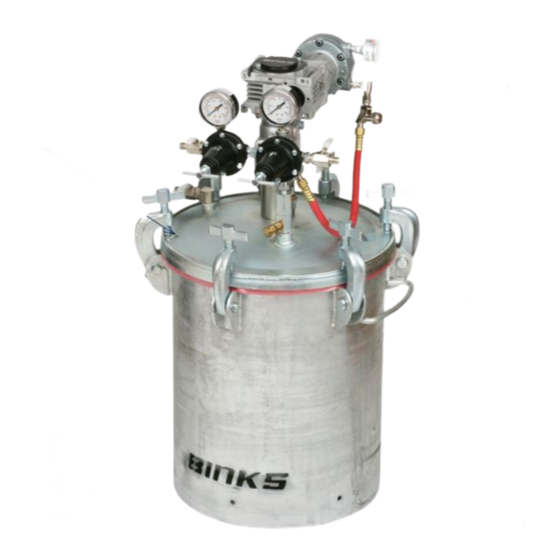

DESCRIPTION
Binks pressure feed tanks are intended for
use as a pressure container to supply
material at a constant preset pressure up
to a maximum of 110 psi. The tanks are
built to ASME specifications.
77-3132-R8 (6/2022)
183G (GALVANIZED) AND 183S (STAINLESS STEEL)
2-GALLON ASME TANKS – CAPACITY UP TO 2.8 GALLONS
Tank Model
Regulation
183G-200
None
183G-210
Single (Regulated air to tank only)
183G-211
Single (Regulated air to tank only)
183G-213
Single (Regulated air to tank only)
183G-214
Single (Regulated air to tank only)
183G-220
Double (Regulated air to tank and gun)
183G-221
Double (Regulated air to tank and gun)
183G-223
Double (Regulated air to tank and gun)
183G-224
Double (Regulated air to tank and gun)
183G-230
Extra Sensitive
183G-231
Extra Sensitive
183G-233
Extra Sensitive
183G-234
Extra Sensitive
183G-240
Extra Sensitive w/ gun regulation
183G-241
Extra Sensitive w/ gun regulation
183G-243
Extra Sensitive w/ gun regulation
183G-244
Extra Sensitive w/ gun regulation
STAINLESS STEEL 2-GALLON MODELS
Tank Model
Regulation
183S-200
None
183S-210
Single (Regulated air to tank only)
183S-211
Single (Regulated air to tank only)
183S-213
Single (Regulated air to tank only)
183S-214
Single (Regulated air to tank only)
183S-220
Double (Regulated air to tank and gun)
183S-221
Double (Regulated air to tank and gun)
183S-223
Double (Regulated air to tank and gun)
183S-224
Double (Regulated air to tank and gun)
183S-230
Extra Sensitive
183S-231
Extra Sensitive
183S-233
Extra Sensitive
183S-234
Extra Sensitive
183S-240
Extra Sensitive w/ gun regulation
183S-241
Extra Sensitive w/ gun regulation
183S-243
Extra Sensitive w/ gun regulation
183S-244
Extra Sensitive w/ gun regulation
GALVANIZED 2-GALLON MODELS
1 / 14
Agitation
None
None
Direct Drive
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Direct Drive
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Direct Drive
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Direct Drive
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
Agitation
None
None
Direct Drive
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Direct Drive
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Direct Drive
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Direct Drive
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
www.carlisleft.com
