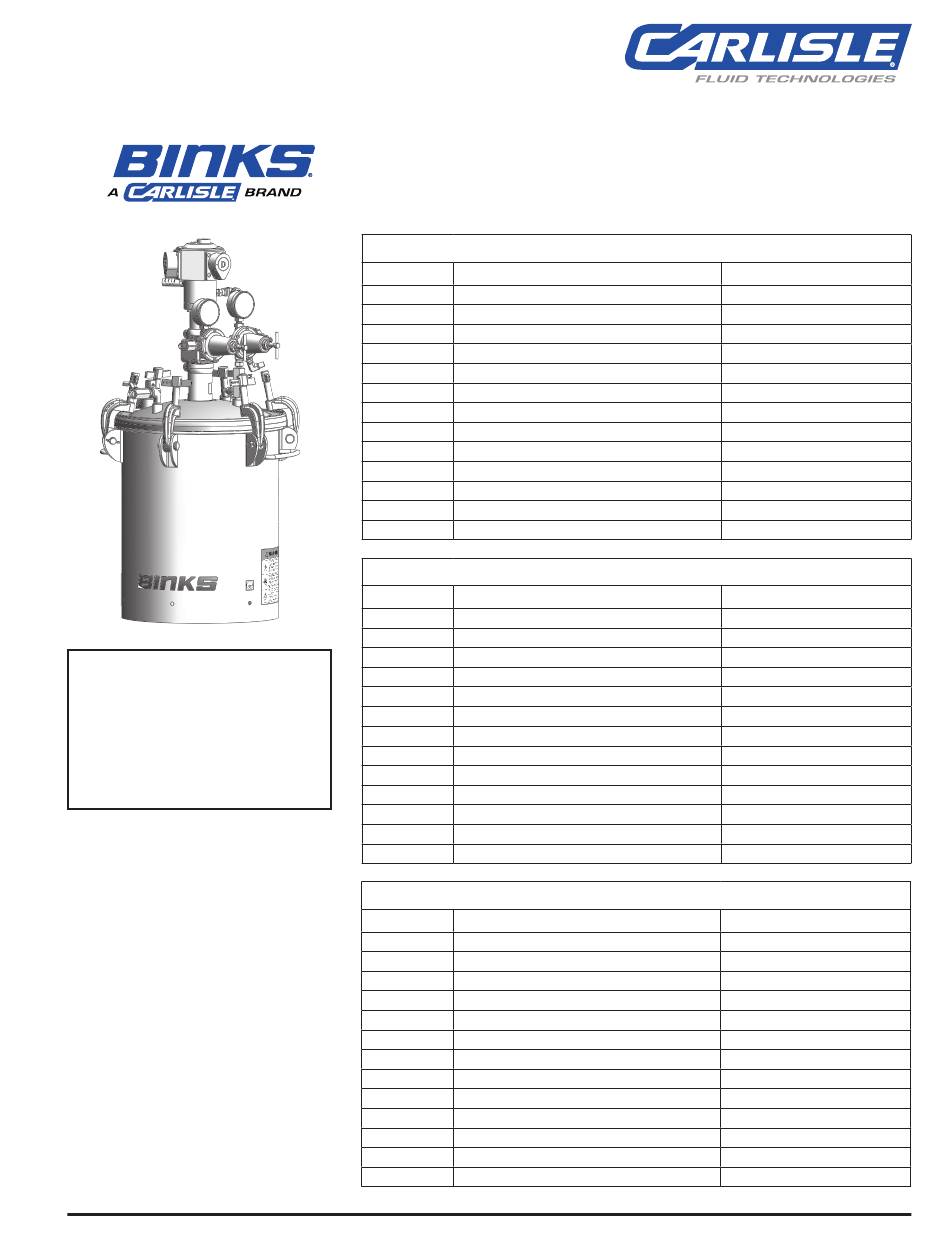

Carlisle Binks 183S Service Manual

SERVICE MANUAL
EN
Important: Read and
follow all instructions and
SAFETY PRECAUTIONS
before using this
equipment. Retain for
future reference.
DESCRIPTION
Binks pressure feed tanks are intended for
use as a pressure container to supply
material at a constant preset pressure up
to a maximum of 110 psi. The tanks are
built to ASME specifications, and also
certified for vacuum operation.
ACTUAL CAPACITIES
5-Gallon holds 9.8 gallons or a
5-gallon pail
10-Gallon holds 11.8 gallons
15-Gallon holds 19.8 gallons
77-3134-R8 (6/2022)
183S (STAINLESS STEEL)
5, 10, AND 15 GALLON ASME TANKS
STAINLESS STEEL 5-GALLON MODELS
Tank Model Regulation
183S-500 None
183S-510 Single (Regulated air to tank only)
183S-513 Single (Regulated air to tank only)
183S-514 Single (Regulated air to tank only)
183S-520 Double (Regulated air to tank and gun)
183S-523 Double (Regulated air to tank and gun)
183S-524 Double (Regulated air to tank and gun)
183S-530 Extra Sensitive
183S-533 Extra Sensitive
183S-534 Extra Sensitive
183S-540 Extra Sensitive w/ gun regulation
183S-543 Extra Sensitive w/ gun regulation
183S-544 Extra Sensitive w/ gun regulation
STAINLESS STEEL 10-GALLON MODELS
Tank Model Regulation
183S-1000 None
183S-1010 Single (Regulated air to tank only)
183S-1013 Single (Regulated air to tank only)
183S-1014 Single (Regulated air to tank only)
183S-1020 Double (Regulated air to tank and gun)
183S-1023 Double (Regulated air to tank and gun)
183S-1024 Double (Regulated air to tank and gun)
183S-1030 Extra Sensitive (Single)
183S-1033 Extra Sensitive (Single)
183S-1034 Extra Sensitive (Single)
183S-1040 Extra Sensitive w/ gun regulation
183S-1043 Extra Sensitive w/ gun regulation
183S-1044 Extra Sensitive w/ gun regulation
STAINLESS STEEL 15-GALLON MODELS
Tank Model Regulation
183S-1500 None
183S-1510 Single (Regulated air to tank only)
183S-1513 Single (Regulated air to tank only)
183S-1514 Single (Regulated air to tank only)
183S-1520 Double (Regulated air to tank and gun)
183S-1523 Double (Regulated air to tank and gun)
183S-1524 Double (Regulated air to tank and gun)
183S-1530 Extra Sensitive (Single)
183S-1533 Extra Sensitive (Single)
183S-1534 Extra Sensitive (Single)
183S-1540 Extra Sensitive w/ gun regulation
183S-1543 Extra Sensitive w/ gun regulation
183S-1544 Extra Sensitive w/ gun regulation
1 / 12
Agitation
None
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
Agitation
None
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
Agitation
None
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Direct Drive (Heavy-duty)
