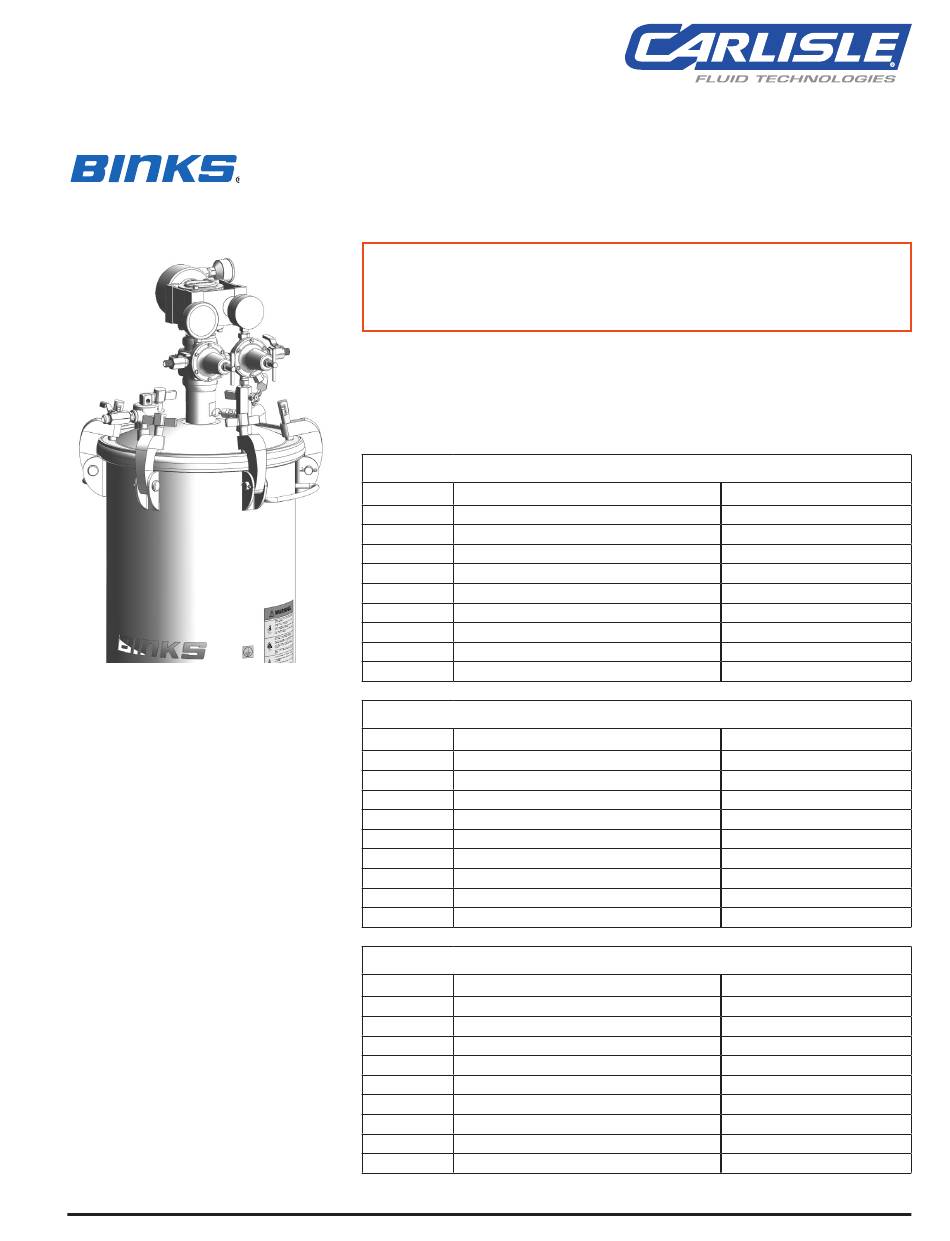

SERVICE MANUAL
EN
DESCRIPTION
Binks pressure feed tanks are intended for
use as a pressure container to supply
material at a constant preset pressure up
to a maximum of 110 psi. The tanks are
built to ASME specifications. Also certified
for vacuum operation.
77-3133-R2 (5/2018)
183G (GALVANIZED) 5, 10, AND 15 GALLON
ASME TANKS
Important: Read and follow all instructions and
SAFETY PRECAUTIONS before using this equipment.
Retain for future reference.
ACTUAL CAPACITIES
5-Gallon holds 9.8 gallons or a 5-gallon pail
10-Gallon holds 11.8 gallons
15-Gallon holds 19.8 gallons
Tank Model
183G-500
183G-510
183G-513
183G-520
183G-523
183G-530
183G-533
183G-540
183G-543
Tank Model
183G-1000
183G-1010
183G-1013
183G-1020
183G-1023
183G-1030
183G-1033
183G-1040
183G-1043
Tank Model
183G-1500
183G-1510
183G-1513
183G-1520
183G-1523
183G-1530
183G-1533
183G-1540
183G-1543
GALVANIZED 5-GALLON MODELS
Regulation
None
Single (Regulated air to tank only)
Single (Regulated air to tank only)
Double (Regulated air to tank and gun)
Double (Regulated air to tank and gun)
Extra Sensitive
Extra Sensitive
Extra Sensitive w/ gun regulation
Extra Sensitive w/ gun regulation
GALVANIZED 10-GALLON MODELS
Regulation
None
Single (Regulated air to tank only)
Single (Regulated air to tank only)
Double (Regulated air to tank and gun)
Double (Regulated air to tank and gun)
Extra Sensitive (Single)
Extra Sensitive (Single)
Extra Sensitive w/ gun regulation
Extra Sensitive w/ gun regulation
GALVANIZED 15-GALLON MODELS
Regulation
None
Single (Regulated air to tank only)
Single (Regulated air to tank only)
Double (Regulated air to tank and gun)
Double (Regulated air to tank and gun)
Extra Sensitive (Single)
Extra Sensitive (Single)
Extra Sensitive w/ gun regulation
Extra Sensitive w/ gun regulation
1 / 12
Agitation
None
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Agitation
None
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
Agitation
None
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
None
Gear-reduced (Heavy-duty)
