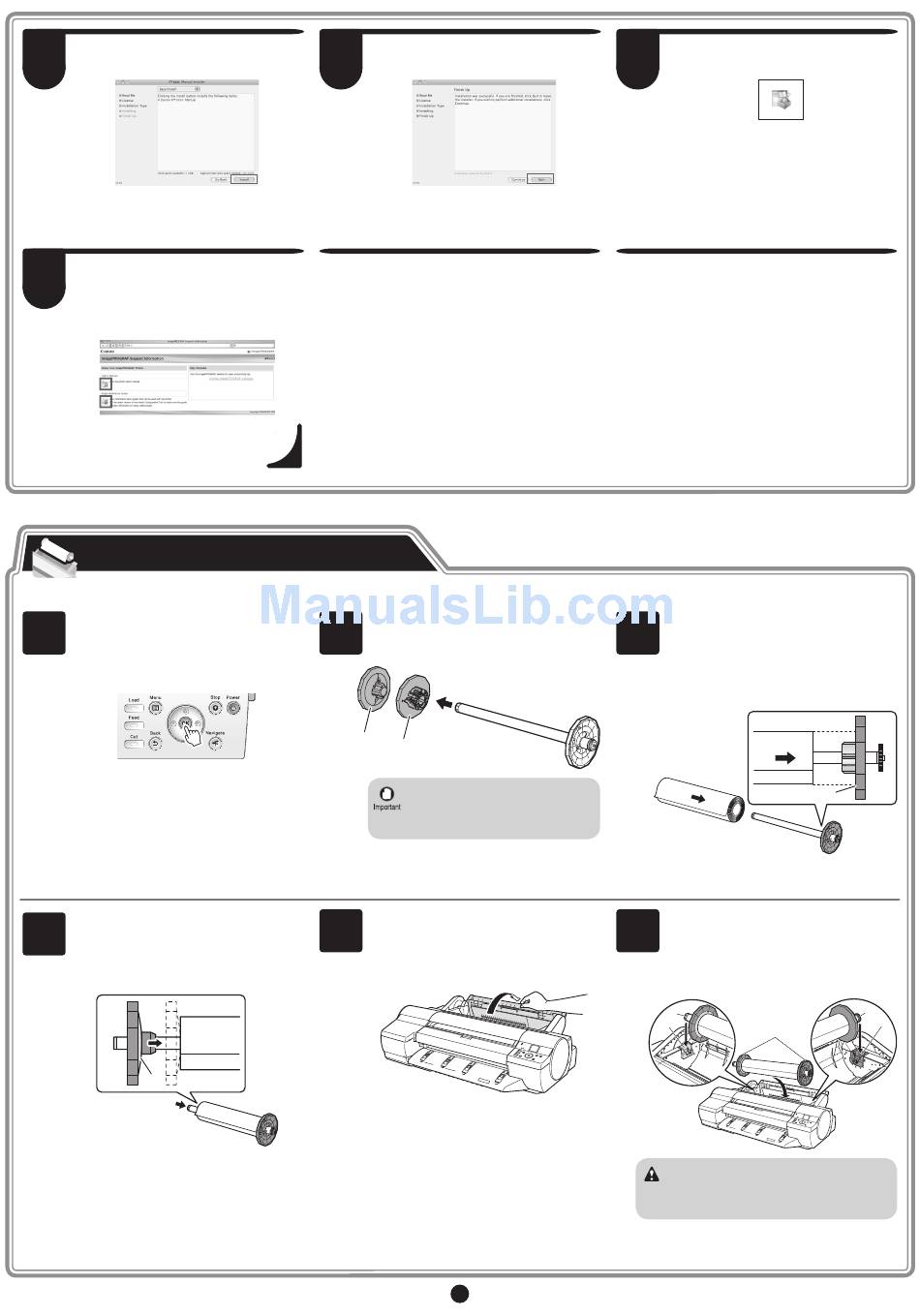

Canon imagePROGRAF iPF6300S Setup Manual page 11

29
Click Install.
32
When clicking the User's Manual button,
the User's Guide will be opened and
clicking the Paper Reference Guide
button, the Paper Reference Guide will be
opened.
Load Paper to Adjust the Printheads
Load the provided sample paper and adjust the Printheads.
1
As the system is charged for the first time,
Select type of paper for printhead adj.
appears on the display screen. Use the
▲ and ▼ keys to select Roll Paper and
then press OK.
4
Slide the holder stopper for the 2-inch
paper core onto the roll holder from the
left until its flange (a) is against the roll of
paper.
a
30
After installation is completed, click Quit.
The electronic manuals installation is now
completed.
2
Remove the 2-inch paper holder stopper
(a) and the 3-inch paper holder stopper (b)
from the roll holder.
a
b
• We recommend wearing clean
cotton gloves when handling rolls
of paper to protect the printable
surface.
5
Open the roll feed unit cover.
11
31
Click the iPF Support icon in the Dock.
3
Lift the end of the paper roll and slide it
onto the roll holder from the left. Insert the
roll holder all the way until the flange (a)
on the roll holder is securely against the
roll of paper. If it is not in firm contact with
the paper, feeding problems may occur.
6
Hold the flange (a) of the roll holder and
align its axis with the left and right guide
grooves (b) in the roll holder slots. Make
sure that the colors of the guide grooves
and the roll holder axis are the same
before loading the paper.
c
b
a
• Be careful to not pinch your fingers
between the axis of the roll holder (c)
Caution
and the guide grooves (b) when loading
paper.
a
c
b
