System > Comm - Wavetronix Click 304 Quick Start Manual

Setting
Module
Driver
Description
Location
Serial Number
Firmware Version
Subnet ID
Device ID

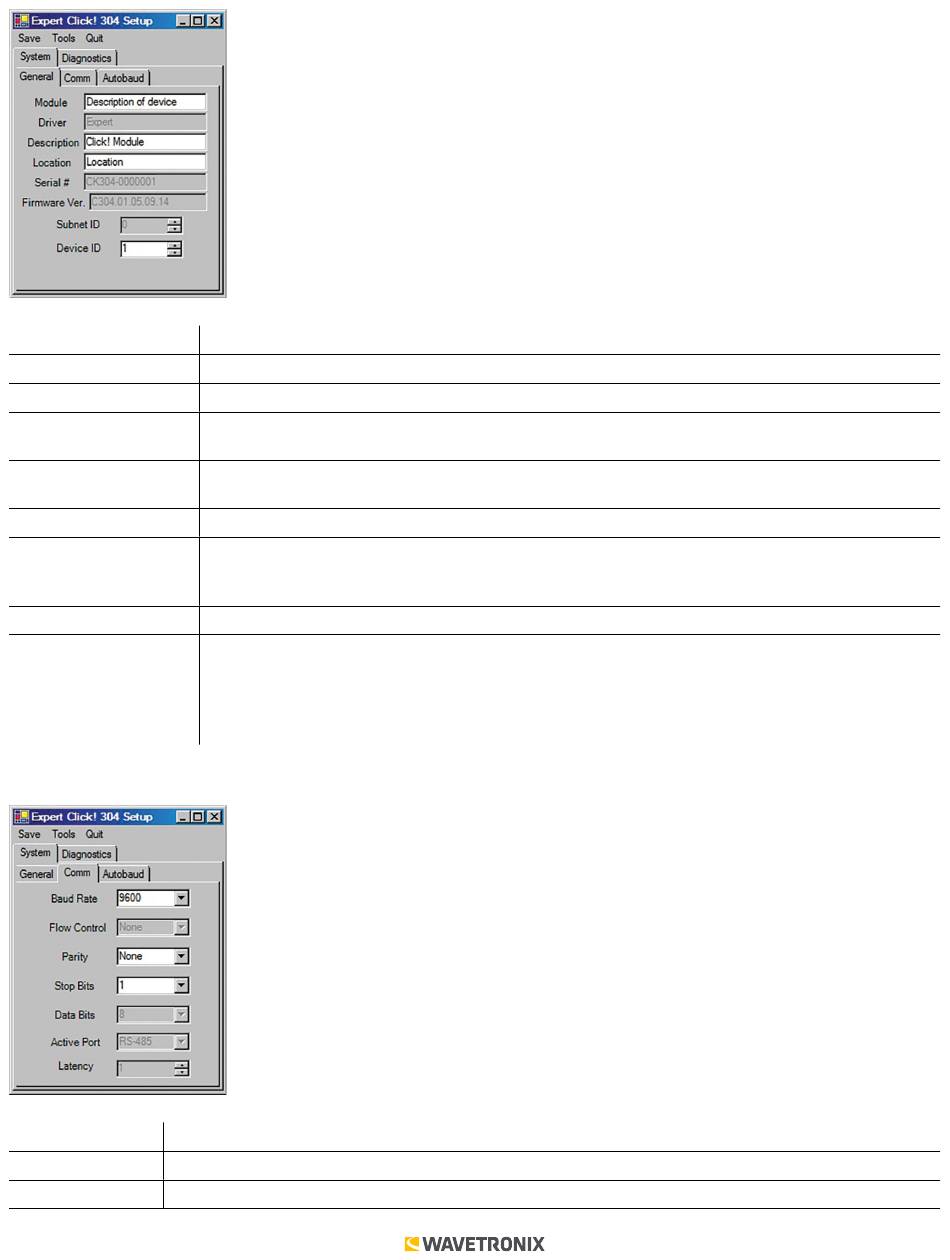

The System > Comm tab allows you to configure Click device communication (see the figure and table below).
Setting Description
Baud Rate Allows you to change the baud rate at which the device connects to the sensor.
Flow Control Is used for configuring hardware handshaking. This option is currently not available.
WX-501-0532 • 01.22
Description
Allows you to enter a name for the device.
Names the driver you are currently working with.
Shows a description of the device being configured. This is only for your information and does not
affect the operation of the device.
Displays the location of the device being configured. This is only for your information and does
not affect the operation of the device.
Displays the serial number of your device.
Shows the version of firmware your device currently has installed. If Click Supervisor detects a
discrepancy between this version and the most current version it currently has access to, you will
be prompted to upgrade when you connect to the device.
Shows the subnet ID number. This option is currently not available.
Gives the ID number of the device being configured, which is used to identify the device when
you are connecting to it. By default, this number is the last five digits of the serial number, which
can be found under the About tab or on the barcode sticker on the bottom of the device. It is
recommended that you do not change this number unless another device on your network has
the same ID number.
