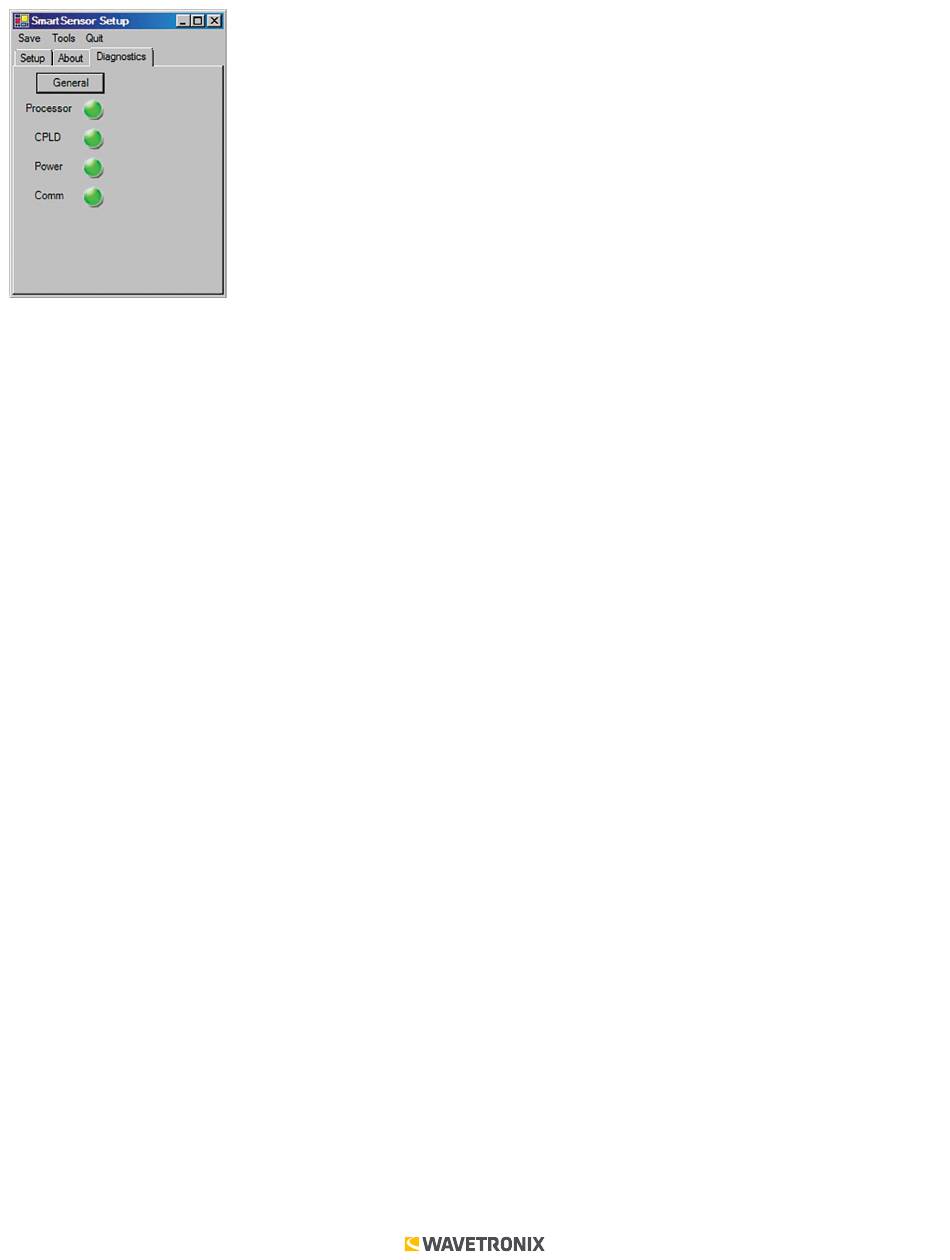

Once you have finished, use the menu bar at the top of the screen to save your settings, return to the Select
Driver screen, and more.
The Save menu allows you to save your settings. Select Save to File to save your settings to a file. Selecting this
■
will open a directory box, allowing you to name your settings file. This file will always be saved in the Wavetronix
folder created when you installed Click Supervisor, under Wavetronix > ClickHome > Drivers > 304 > User. You
can also select Save to Device to save your settings to your Click 304.
Note. If you do not save your settings to your Click 304, they will be lost the next time you power the device down.
The Tools menu contains five options for working with your device. Reset > System power cycles your device,
■
while Reset > Factory Default restores your device to the settings with which it was shipped. Restore will restore
the driver to the settings currently saved on the Click 304, erasing any unsaved changes. Upgrade can be used
to manually upgrade to the most current firmware for your device. Hex View changes the view of certain settings
in the driver to hexadecimal.
Clicking the Quit menu exits the driver and returns you to the Click Supervisor main page.
■
Once you have finished, click Save on the menu bar to save your settings.

Expert Driver

The Expert driver allows you to see all possible settings and fields, both those available in the SmartSensor driver
and those available only through this driver. The driver is divided into two tabs—System and Diagnostics—which
are then subdivided further.
The System > General tab combines elements of the Setup and About tabs from the other drivers (see the figure
and table below).
