Factory Reset; Computer Configuration; Smartsensor Driver - Wavetronix Click 304 Quick Start Manual

Factory Reset (red flashing)
The Factory Reset operation will erase all user-configured fields and the Click 304 may have to be reconfigured to
work properly in its current application. If a device is not responding and not communicating, resetting the device
may fix the problem. Once the device is responding, restore the configuration needed for its current application.

Computer Configuration

The Click 304 can be configured more exactly using the Click Supervisor software. See the knowledge base
article 0514 Installing and Using Click Supervisor for instructions on how to download and install Click Supervisor
and how to connect to your device using the software.

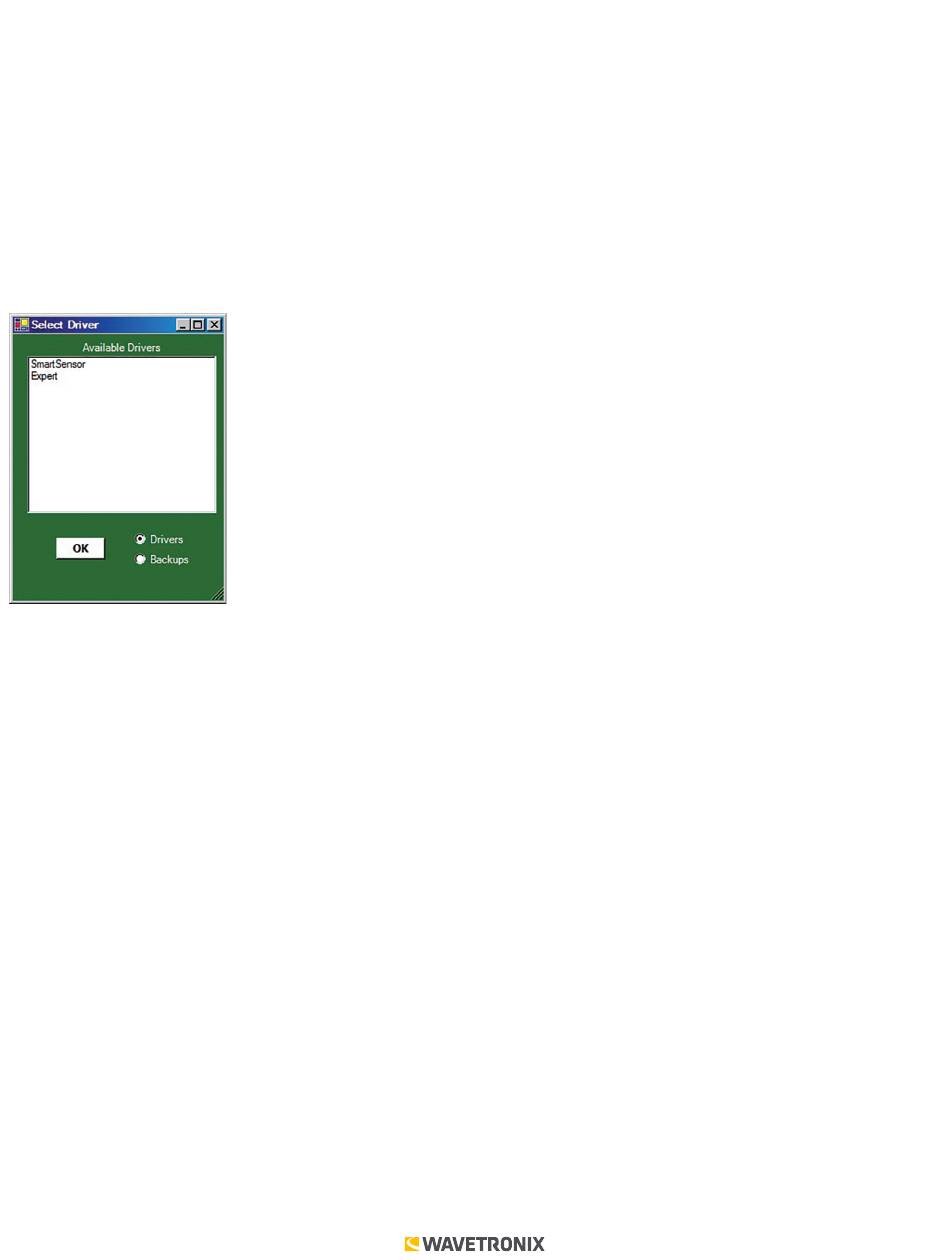

The Click 304 is configured using one of the following drivers (see the figure below):
Which driver you use will depend on what you need to use the device for.
If you intend to connect from your TOC to the Click 304 to a sensor, use the SmartSensor driver.
To see advanced settings, use the Expert driver. This driver, which exposes every available field for the Click 304,
should only be used under the direction of Wavetronix Technical Services.
After you have made configuration changes on a driver and saved it to the Click device, the word "current" will
appear after that driver to indicate the driver that is currently loaded onto the device.
Note. Some settings appear on multiple drivers. Changing one of those settings on any driver and saving them to
the Click device will change that setting on all other drivers it appears on.
The Backups option can be used to read configurations that have previously been saved to file.

SmartSensor Driver

The SmartSensor driver contains three tabs: Setup, About and Diagnostics. The Setup tab has the following
settings (see the figure and table below):
