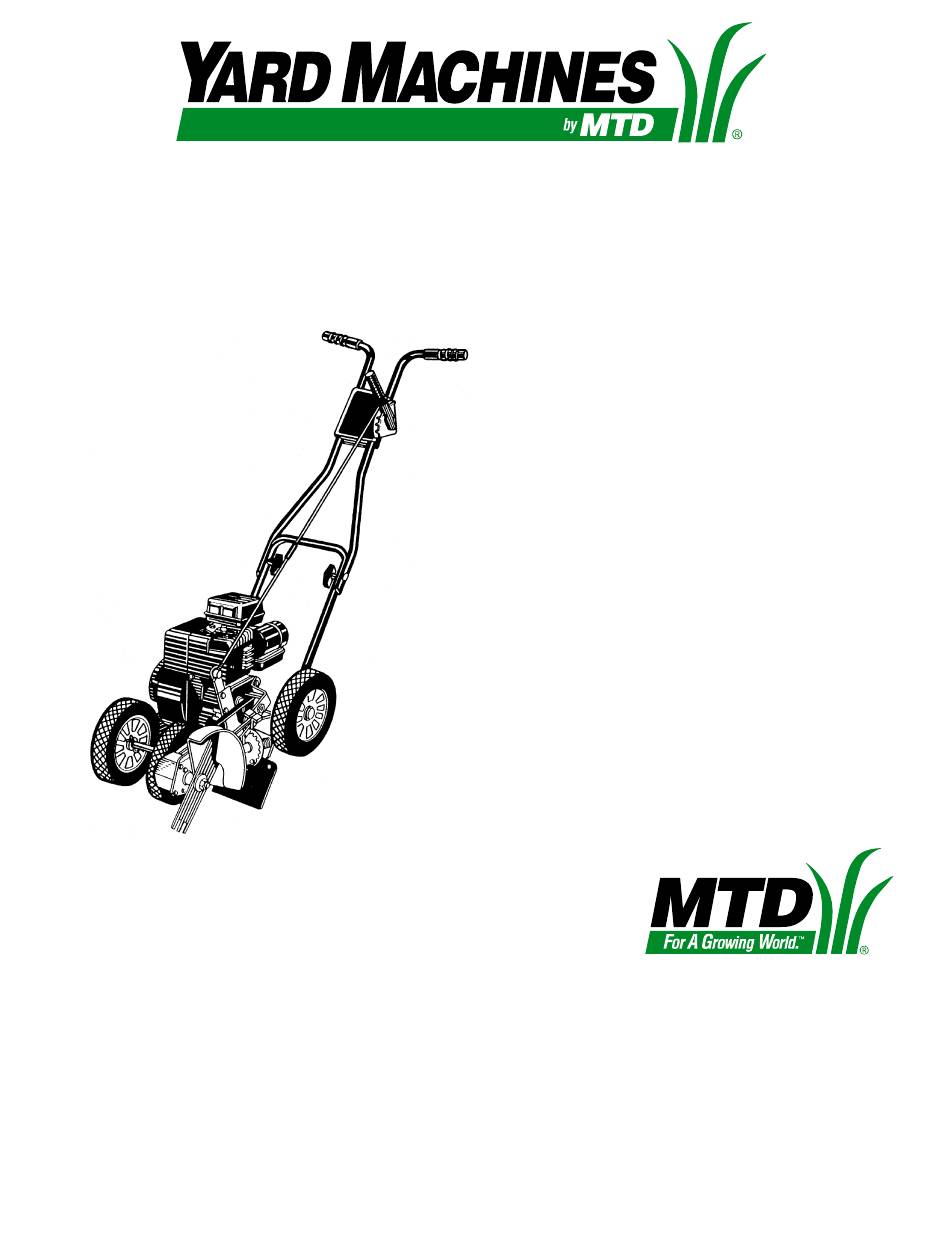

IMPORTANT: READ SAFETY RULES AND INSTRUCTIONS CAREFULLY
Warning:
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-
covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting
applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator.
In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have
similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized
service dealer or contact the service department, P.O. Box 368022 Cleveland, Ohio 44136-9722.
MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722
PRINTED IN U.S.A.
FORM NO. 770-8831A
1/98

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YARD MACHINES 587 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MTD YARD MACHINES 587 Series

Summary of Contents for MTD YARD MACHINES 587 Series

  • Page 1 Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 368022 Cleveland, Ohio 44136-9722. MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722 PRINTED IN U.S.A.

  • Page 2: Section 1: Important Safe Operation Practices

    SECTION 1: IMPORTANT SAFE OPERATION PRACTICES WARNING: THIS SYMBOL POINTS OUT IMPORTANT SAFETY INSTRUCTIONS WHICH, IF NOT FOLLOWED, COULD ENDANGER THE PERSONAL SAFETY AND/OR PROPERTY OF YOURSELF AND OTHERS. READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL BEFORE ATTEMPTING TO OPERATE YOUR EDGER. FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.
  • Page 3 • Make sure engine is off and spark plug wire is operating the edger. Remember, heavy vibration is disconnected when clearing jammed material from generally a sign of trouble. blade. • Always stop engine when edging or trimming is • Do not attempt to remove cut material nor hold delayed or when walking from one location to material to be cut when engine is running or when another.

  • Page 4: Section 2: Finding Your Model Number

    Operators Manual. The information on the model plate is very important if you need help from your dealer or the MTD customer support department. • Every edger has a model plate. You can locate it by standing in the operating position behind the unit and looking down at the rear of the frame.

  • Page 5: Section 4: Set-Up Instructions

    SECTION 4: SET-UP INSTRUCTIONS IMPORTANT: 1. Disconnect the spark plug wire and move it This unit is shipped WITHOUT away from the spark plug. GASOLINE or OIL. After setting up the unit, 2. With the blade clutch/depth control lever in the service engine with...

  • Page 6: Section 5: Controls

    SECTION 5: CONTROLS THROTTLE CONTROL When the blade is adjusted toward the horizontal position, the front wheels must also be adjusted. The throttle control lever is located on the engine Remove the hairpin clip on the left side and slide (Model 588) or on the handle panel (Model 587).

  • Page 7: Section 6: Operation

    SECTION 6: OPERATION The operation of any edger can WEAR YOUR result in foreign objects being SAFETY GLASSES thrown into the eyes, which can result in severe eye damage. FORESIGHT IS BETTER Always wear safety glasses or THAN NO SIGHT eye shields.

  • Page 8: Section 7: Lubrication

    3. To operate the unit as a trimmer, move the SECTION 7: LUBRICATION adjustment lever and rotate the cutting blade 90 degrees See Figure 10. Move the front wheels Wheels—The wheels are plastic and require no all the way to the right, as described in the lubrication.

  • Page 9: Section 9: Off-Season Storage

    2. Remove the belt guard at the spindle assembly SECTION 9: OFF-SEASON by removing two hex bolts, lock washers and hex nuts. See Figure 14. STORAGE 3. Remove the old belt, and reassemble with a The following steps should be taken to prepare unit new belt, part number 754-0142.

  • Page 10: Section 10: Trouble Shooting Guide

    SECTION 10: TROUBLE SHOOTING GUIDE Trouble Possible Cause(s) Corrective Action Engine fails to start Dirty aircleaner. Refer to the engine manual packed with your unit. Choke not in ON position. Move switch to ON position. Fuel tank empty, or stale fuel. Fill tank with clean, fresh gasoline.
  • Page 11 Notes...
  • Page 12 Notes...
  • Page 13 Models 587 and 588 IMPORTANT: For a proper working machine, Factory Approved † Wheel Assembly Chart Parts. Size Description Part No. V-BELTS specially 8 x 1.75 Bar Trd Green 734-1781 designed to engage and 8 x 1.7 Bar Trd Grey 734-1844 disengage safely.
  • Page 14 Models 587 and 588 Ref. Ref. PART NO DESCRIPTION PART NO DESCRIPTION 720-0283 Foam Grip 756-0449 3/8" "V"-Pulley 712-0107 Hex L-Nut 1/4-20 Thd. 754-0142 "V"-Belt 714-0104 Cotter Pin 5/16" Dia. 710-0929 Hex Bolt 5/8-18 x 4.5" Lg. 710-0106 Hex Bolt 1/4-20 x 1.25" Lg. 710-0258 Hex Bolt 1/4-20 x .625"...
  • Page 16 United within the United States of America, its possessions States of America, its possessions and territories, and territories, MTD PRODUCTS INC will, at its except those sold through MTD PRODUCTS INC’s option, repair or replace, for the original purchaser, authorized channels of export distribution.
