Summary of Contents for Leonton CEG2-0800 Series

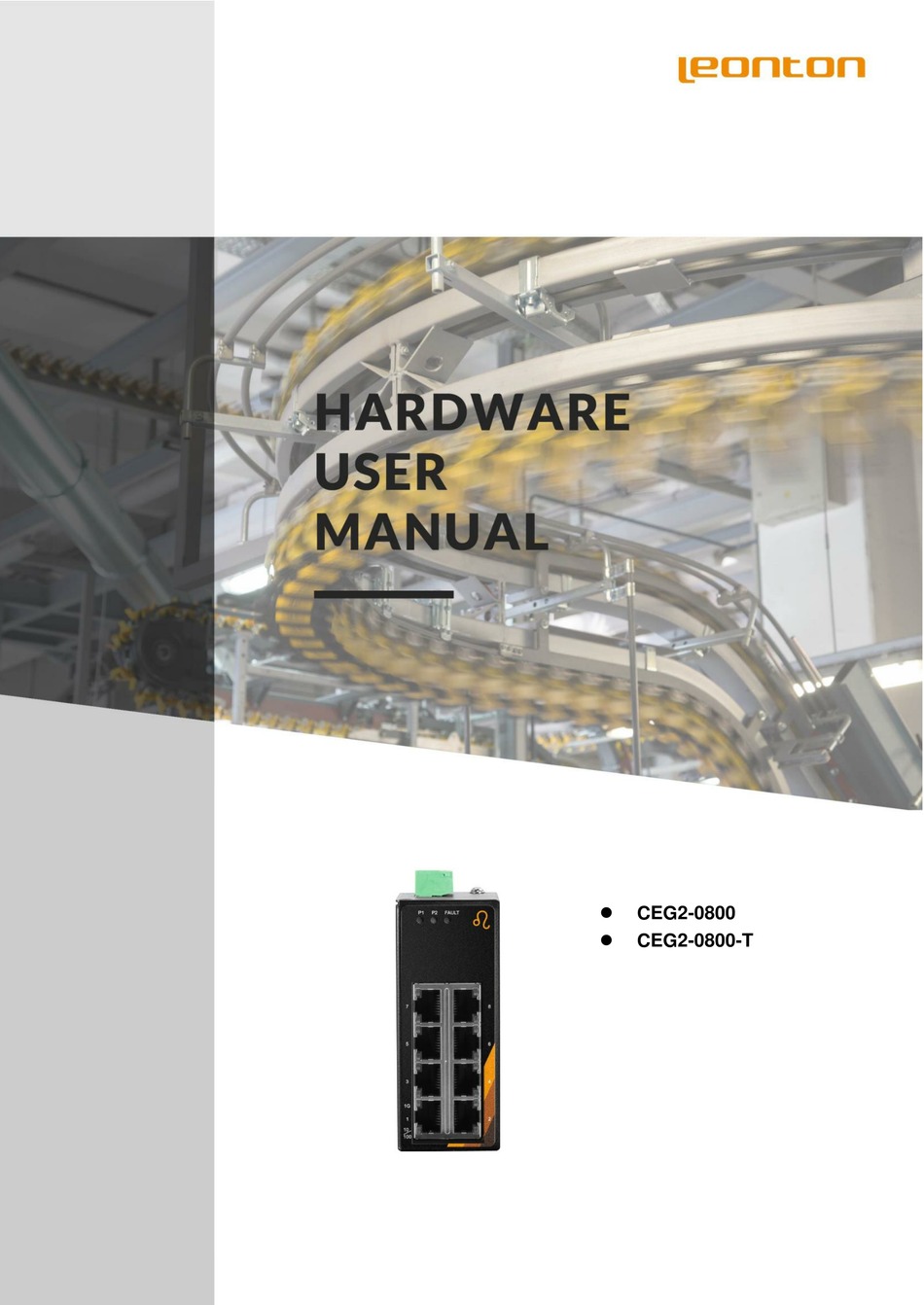

  • Page 1 ⚫ CEG2-0800 ⚫ CEG2-0800-T...
  • Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
  • Page 3 Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut être utilisé en présence d'interférences radio. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
  • Page 4: Table Of Contents

    CONTENT OVERVIEW ..........................1 Key Features ................................1 Package Contents ..............................2 Safety Precaution ..............................2 HARDWARE DESCRIPTION ..................... 3 Physical Dimensions ..............................3 Front Panel .................................. 4 Top View ..................................4 LED Indicators ................................5 Ethernet Ports ................................6 Cabling ..................................
  • Page 5: Overview

    OVERVIEW This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit unmanaged Ethernet switch series has 8*10/100/1000Tx Gigabit Ethernet ports, which the RJ-45 interface provides auto detection of MDI or MDI-X. In order to prevent unregulated voltage, this series provides high EFT and ESD protection which also allows it to function in harsh environments, as well as support power redundancy with a dual power input design with reverse polarity protection.
  • Page 6: Package Contents

    Package Contents ⚫ 1 - CEG2-0800(-T) - Unit weight: 0.33kg (0.72 lb), Shipping weight: 0.47kg (1.03 lb) ⚫ 2 - Wall mounting brackets and screws ⚫ 1 - Quick installation guide Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. Supply by UL Listed industrial use power.
  • Page 7: Hardware Description

    HARDWARE DESCRIPTION Physical Dimensions Figure 2.1, below, shows the physical dimensions of CEG2-0800 series. (W x H x D) is 40mm x 95mm x 70mm Figure 2.1: Physical Dimensions...
  • Page 8: Front Panel

    Figure 2.2: The Front Panel Top View Figure 2.3, below, shows the top panel of the CEG2-0800 series switch that is equipped with one 6-pin removal terminal block connectors for dual DC power inputs (12-48VDC). Figure 2.3: Top Panel View...
  • Page 9: Led Indicators

    LED Indicators There are LED light indicators located on the front panel of the industrial switch that display the power status and network status. Each LED indicator has a different color and has its own specific meaning, see below in Table 2.1. Table 2.1: LED Indicators Color Description...
  • Page 10: Ethernet Ports

    Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics.
  • Page 11: Cabling

    Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. Wiring the Power Inputs Caution: Please follow the below steps to insert the power wire.
  • Page 12: Grounding Note

    Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.6. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit.
  • Page 13: Mounting Installation

    MOUNTING INSTALLATION DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet Switch from the factory. If the DIN-Rail is not on the industrial Ethernet Switch, please see Figure 3.1 to learn how to install the DIN-Rail on the Switch. Figure 3.1: The Rear Side of the Switch and Wall Mounting Bracket Follow the steps below to learn how to hang the industrial Ethernet switch.
  • Page 14 Figure 3.2: Insert the Switch on the DIN-Rail Step 4. Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Figure 3.3: Stable the Switch on DIN-Rail Step 5. Check if the bracket is mounted tightly on the rail. Step 6.
  • Page 15: Wall Mounting

    Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Step 1. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. Step 2. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch.
  • Page 16: Hardware Installation

    HARDWARE INSTALLATION Installation Steps This section will explain how to install CEG2-0800 series. Installation Steps Step 1. Unpack the industrial Switch from the original packing box. Step 2. Check if the DIN-Rail bracket is screwed on the industrial Switch. •...
  • Page 17 Caution: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. Attention: Si l'équipement est utilisé d'une manière non spécifiée par le fabricant, la protection fournie par l'équipement peut être altérée. Caution: The installation that the safety to any system incorporating the equipment is the responsibility of the assembler of the system.
  • Page 18: Trouble Shooting

    If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be resolved. ◆ ●...
