- Page 1 LEONTON BG2-0500-24 Series (BG2-0500-24 / BG2-0500-24-T) User Manual...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
Contents Overview ......................................1 Key Features ....................................1 Package Contents ................................... 2 Safety Precaution ..................................2 Hardware Description ................................3 Physical Dimensions................................3 Front Panel ....................................4 Top View ..................................... 4 PoE Dip Switch ..................................5 Relay Contact Alarm Warning ............................5 LED Indicators ................................... -
Page 5: Overview
Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit unmanaged Ethernet switch series provided 5*10/100/1000Tx with 4*IEEE 802.3bt compliant ports (90W), suitable for applications that require high bandwidth and long distance communication. In order to prevent unregulated voltage, this series provides high EFT and ESD protection. -
Page 6: Package Contents
Package Contents • 1 - BG2-0500-24(-T) • 2 - Wall mounting brackets and screws • 1 - Quick installation guide Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 7: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of BG2-0500-24 series. (W x H x D) is 54mm x 142mm x 99mm Figure 2.1: BG2-0500-24 Series Physical Dimensions... -
Page 8: Front Panel

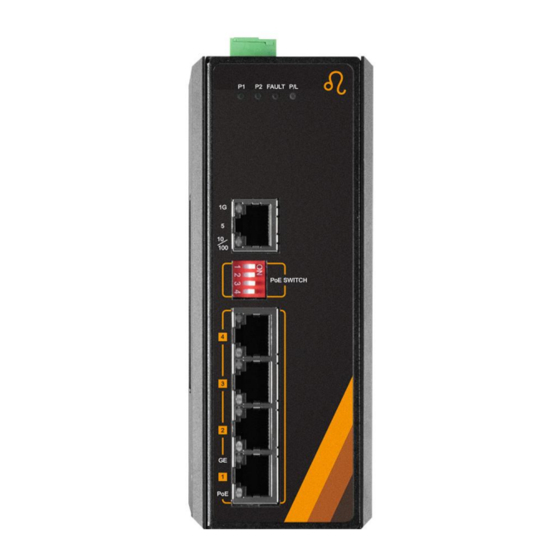

Figure 2.2: The Front Panel of BG2-0500-24 Series Top View Figure 2.3, below, shows the top panel of the BG2-0500-24 series switch that is equipped with one 6-pin removal terminal block connector for dual DC power inputs (12-55VDC). Figure 2.3: Top Panel View of BG2-0500-24 Series... -
Page 9: Poe Dip Switch
PoE Dip Switch The 4-pin Dip Switch on the front panel of the Ethernet Switch works as the PoE Controller for PoE Port 1~Port 4. PoE DIP Switch 1 Enable Port 1 PoE Function Disable Port 1 PoE Function PoE DIP Switch 2 Enable Port 2 PoE Function Disable Port 2 PoE Function PoE DIP Switch 3... - Page 10 Connected to network, 1000Mbps Green Networking is active, 1000Mbps Blinking Copper Not connected to network Port Link/Act Connected to network, 10/100Mbps Green (Port 5) Networking is active, 10/100Mbps Flashing Not connected to network Table 2.1: LED Indictors for BG2-0500-24 Series...
-
Page 11: Poe Port Led Indicators
PoE Port LED Indicators The LED light indicators on the PoE copper port can help the user know if an event once occurs or is happening. When the event is happening, user can verify the event from the Dual-color LED status. - Page 12 • Cable Short Event When the working PD encounters a cable short event, the PoE Port LED will act cyclically as below until the port is recovered from the event: After the PoE port is recovered from the Cable Short event, the PoE LED of the port will act cyclically as below until the event indicator is clear manually: **AF/AT: Amber;...
-
Page 13: Ethernet Ports
Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. See the figures as below for straight-through and crossover cabling schematics. -
Page 14: Cabling
Cabling Use the four twisted-pair, category 5e, or the above cabling for RJ-45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long. Wiring the Power Inputs Please follow the below steps to insert the power wire. -
Page 15: Wiring The Fault Alarm Contact
Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.6. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only) and form a normally open circuit. An application example for the fault alarm contact is shown below in Figure 2.6. -
Page 16: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the Ethernet switch. Figure 3.1: The Rear Side of the Ethernet switch and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Ethernet switch. - Page 17 Figure 3.2: Insert the Ethernet switch on the DIN-Rail Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Step 4. Figure 3.3: Stable the Ethernet switch on DIN-Rail Check if the bracket is mounted tightly on the rail. Step 5.
-
Page 18: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. Step 1. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch. Step 2. -
Page 19: Hardware Linstallation
Hardware Installation Installation Steps This section will explain how to install BG2-0500-24 series. Installation Steps Unpack the industrial Ethernet switch from the original packing box. Step 1. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch. Step 2. -
Page 20: Trouble Shooting
If the power indicator LED does not turn on when the power cord is plugged in, the user may have a problem with the power cord. Check for loose power connections, power losses or surges at the power outlet. Please contact Leonton for technical support service, if the problem still cannot be ◆ resolved.
