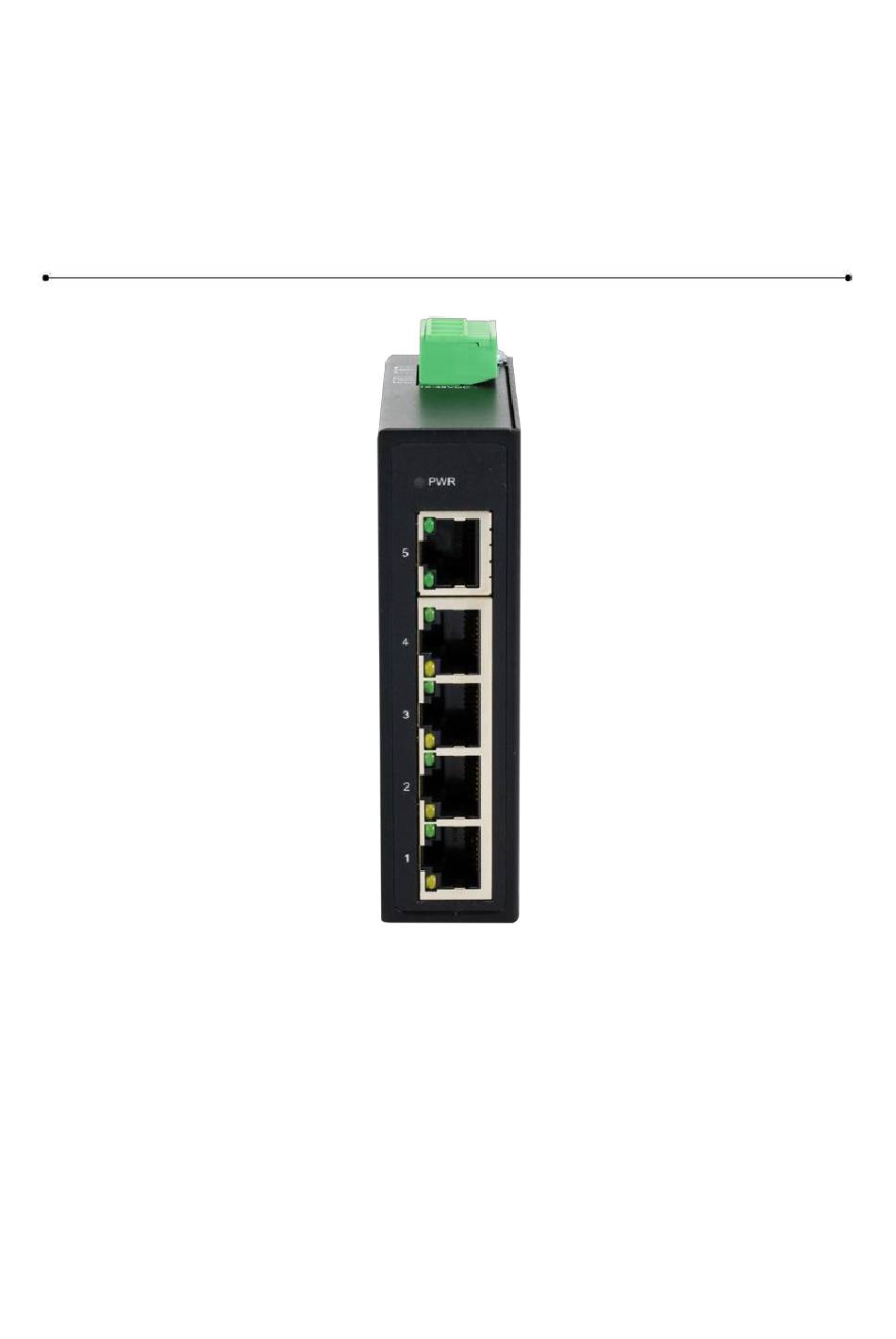

- Page 1 Leonton CEG2-0500 Series (CEG2-0500 / CEG2-0500-T) User Manual Version 1.0...
- Page 2 Disclaimer Leonton Technologies, Co. Ltd. provides this manual without warranty of any kind, expressed or implied, including but not limited to the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 This is a Class-A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. This document is the current official release manual. Please check our website (www.leonton.com) for any updated manual or contact us by e-mail (sales@leonton.com).
-
Page 4: Table Of Contents
Contents Overview ........................1 Key Features ......................1 Package Contents ....................2 Safety Precaution ....................2 Hardware Description ....................3 Physical Dimensions ....................3 Front Panel ......................4 Top View ....................... 4 LED Indicators ....................... 5 Ethernet Ports ....................... 5 Cabling ........................ -
Page 5: Overview
Overview This series is rated IP30 and installation by DIN Rail. Each unit of this industrial gigabit unmanaged Ethernet switch series has 5*10/100/1000Tx Gigabit Ethernet ports, which the RJ-45 interface provides auto detection of MDI or MDI-X. In order to prevent unregulated voltage, this series provides high EFT and ESD protection. This also allows it to function in harsh environments, as well as support power redundancy with a dual power input design with reverse polarity protection. -
Page 6: Package Contents
Package Contents 1 - CEG2-0500(-T) 2 - Wall mounting brackets and screws Safety Precaution Attention If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. Supply by UL Listed industrial use power. The industrial Ethernet switch’s hardware specs, ports, cabling information, and wiring installation will be described within this user manual. -
Page 7: Hardware Description
Hardware Description Physical Dimensions Figure 2.1, below, shows the physical dimensions of CEG2-0500 series. (W x H x D) is 26mm x 95mm x 75mm Figure 2.1: Physical Dimensions... -
Page 8: Front Panel

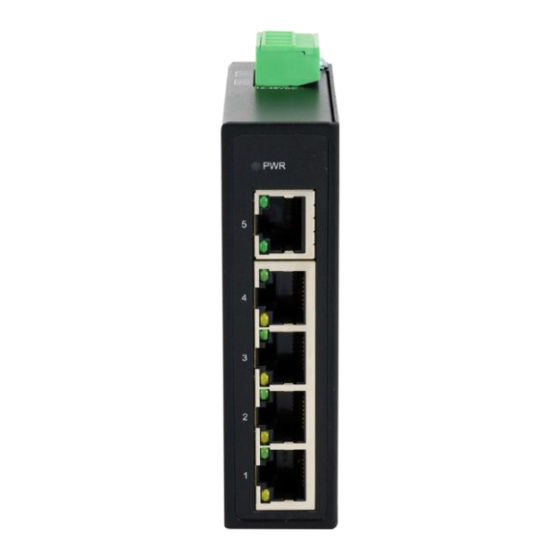

Figure 2.2: The Front Panel Top View Figure 2.3, below, shows the top panel of the CEG2-0500 series switches that is equipped with one 4-pin removal terminal block connector for dual DC power inputs (12-48VDC). Figure 2.3: Top Panel View... -
Page 9: Led Indicators
Connected to network, 10/100Mbps Flashing Networking is active Not connected to network Table 2.1: LED Indictors for CEG2-0500 Series Ethernet Ports RJ-45 Ports (Auto MDI/MDIX) The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 10: Cabling
1000BASE-T RJ-45 Pin Assignments (Table 2.3) Crossover Cable Straight Through Cable Pin Number / Signal Pin Number / Signal Pin Number / Signal Pin Number / Signal 1 / TP0+ 3 / TP1+ 1 / TP0+ 1 / TP1+ 2 / TP0- 6 / TP1- 2 / TP0- 2 / TP1-... - Page 11 Tighten the wire-clamp screws to prevent the wires from loosening, as shown below in Step 2. Figure 2.10. Figure 2.10: Power Terminal Block Note: Only use copper conductors, 60/75°C, tighten to 5 lbs. The wire gauge for the terminal block should range between 18~20 AWG.
-
Page 12: Mounting Installation
Mounting Installation DIN-Rail Mounting The DIN-Rail is pre-installed on the industrial Ethernet switch from the factory. If the DIN-Rail is not on the industrial Ethernet switch, please see Figure 3.1 to learn how to install the DIN-Rail on the switch. Figure 3.1: The Rear Side of the Switch and DIN-Rail Bracket Follow the steps below to learn how to hang the industrial Ethernet switch. - Page 13 Figure 3.2: Insert the Switch on the DIN-Rail Lightly pull down the bracket on to the rail as shown below in Figure 3.3. Step 4. Figure 3.3: Stable the Switch on DIN-Rail Check if the bracket is mounted tightly on the rail. Step 5.
-
Page 14: Wall Mounting
Wall Mounting Follow the steps below to mount the industrial Ethernet switch using the wall mounting bracket as shown below in Figure 3.4. Remove the DIN-Rail bracket from the industrial Ethernet switch by loosening the screws. Step 1. Place the wall mounting brackets on the top and bottom of the industrial Ethernet switch. Step 2. - Page 15 Below, in Figure 3.5 are the dimensions of the wall mounting bracket. Figure 3.5: Wall Mounting Bracket Dimensions...
-
Page 16: Hardware Installation
Hardware Installation Installation Steps This section will explain how to install CEG2-0500 series. Installation Steps Unpack the industrial Ethernet switch from the original packing box. Step 1. Check if the DIN-Rail bracket is screwed on the industrial Ethernet switch. Step 2. -
Page 17: Trouble Shooting
Check for loose power connections, power losses or surges at the power outlet. ◆ Please contact Leonton for technical support service, if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot transmit, please check the system’s Ethernet devices’...
