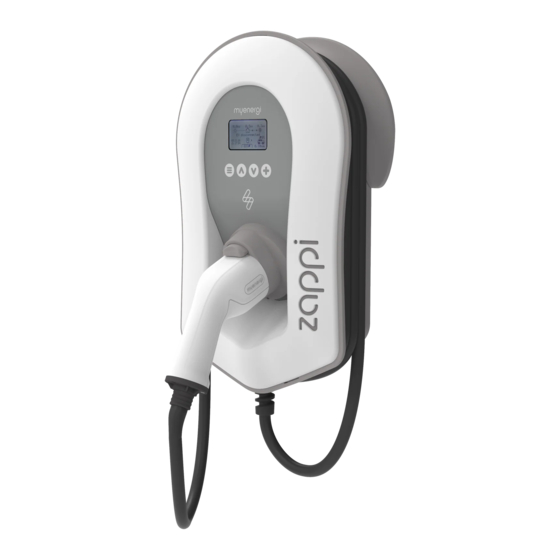

- Page 1 EV charge point Operation & Installation Manual MODELS: ZAPPI-2H07UW ZAPPI-2H22UW ZAPPI-2H07UB ZAPPI-2H22TW ZAPPI-2H07TW ZAPPI-2H22UB ZAPPI-2H07TB ZAPPI-2H22TB Rev 2.1.5 June 2022 – ENGLISH...
-
Page 2: Table Of Contents
Contents Electric Vehicles (Smart Charge Points) Regulations 2021..................4 Purpose of the Regulations ............................4 What’s changed with zappi ............................4 Randomised Delay: How it works ..........................5 Smart Scheduling: How it works ..........................5 Defaulting to ‘ECO+’ Mode ............................6 Charging Logs .................................. - Page 3 14.4 Connectivity ................................... 35 14.5 Max Transmitted Power ............................. 35 Model Variants ................................... 35 Technical Support ................................36 Declaration of Conformity .............................. 36 Page 3 of 37...
-
Page 4: Electric Vehicles (Smart Charge Points) Regulations 2021
First Device – If this is your first myenergi device the zappi will opt to set the device as Master and turn the in-built vHub on. If you are adding to an existing myenergi eco-system, the device will opt to set as slave and turn the in-built vHub off. -
Page 5: Randomised Delay: How It Works
Overriding the delay To override the delay simply press the ‘+’ button on the zappi or press the ‘charge now’ button displayed in the pop-up message within the myenergi app. If the delay is overridden your charge will start/stop immediately. -
Page 6: Defaulting To 'Eco+' Mode
If the default schedule does not suit your requirements, or your electricity tariff’s off-peak hours differ from the schedule set, you can amend your schedule at any time from the zappi menu or within the myenergi app. To adjust your schedule in the app navigate to the ‘Set Boost Parameters’ option, select start time and set the number of hours you want your charger to boost for. -
Page 7: Installer Requirements
For further information or to view the current Electric Vehicles (Smart Charge Points) Regulations 2021 visit: https://www.legislation.gov.uk/ukdsi/2021/9780348228434 https://www.gov.uk/guidance/regulations-electric-vehicle-smart-charge-points Further information can also be found by following the QR code below which will take you to myenergi’s Smart Regulations webpage which contains reference documents, FAQs and simplified explanations of the regulations. -
Page 8: Introduction
The unit is designed for indoor or outdoor use at a location with restricted access and should be mounted vertically either surface (wall) mounted or on the dedicated pole mount supplied separately by myenergi. The device has been manufactured in accordance with the state of the art and the recognised safety standards,... -
Page 9: Overview
5.1 Overview Diagram The diagram on the next page shows the eddi as part of a complete energy management system. Other myenergi products are shown with details of how they integrate with the grid connection and the microgeneration system. Page 9 of 37... - Page 10 Page 10 of 37...
-
Page 11: Box Contents
If you have any concerns about the wireless performance then we would be pleased to answer your questions, but please consider that if a WiFi signal works OK then there is a very high probability that the myenergi devices will also work without any issues. -
Page 12: Installation
8. Installation Mounting NOTE Care should be taken to maintain the IP rating of the unit • • Ensure grommets and bungs provided are fitted, the O-ring behind the cover is seated correctly and that the incoming power and CT cables are fitted using an appropriate size and type of gland. zappi must be fixed to a flat vertical surface. - Page 13 Step 3: Step 4: Remove all 8 screws from the enclosure There are 4 possible cable entry positions, and carefully lift away. carefully decide which one you are going to use from the above image. You will need an IP65 or above rated cable gland. Carefully drill a hole into the unit to match the size of your cable gland.
-
Page 14: Wiring
Step 7: Step 8: Secure the unit to the wall using the fixing Ensure O-ring is present and sits neatly kit provided. Ensure the grommets are used to into its channel. maintain its IP integrity. Note: if using the rear cable entry, remember to insert the mains cable before mounting to the wall! Wiring WARNING! - Page 15 8.2.2 Supply The single phase zappi should be connected to a 230V/240V nominal AC supply. The supply should run from a dedicated 32A circuit breaker. The 3 phase zappi should be connected to a 400V, 4 wire, 3 phase supply. The supply should run from a dedicated 3 pole 32A circuit breaker.
- Page 16 8.2.4 Single Phase Wiring For single-phase installations, without the For single phase installations, where 1 or more need for hardwiring an external CT, please external/additional CTs are required, please follow the above diagram follow the above diagram to connect the CTs. Use the extra CT terminals in the same way if Earth = Green / Yellow cable required.
- Page 17 8.2.5 Three Phase Wiring For 3 phase installations, without the need for For 3 phase installations, with the need for 1 or hardwiring an external CT, please use the more external/additional CTs, please use the above diagram. above diagram. Earth = Green / Yellow cable Positive (+) = Red Neutral = Blue cable Negative (-) = Black...
- Page 18 If the eSense input is provided using an If the eSense signal is provided by using an external volt-free contact then this must be external voltage this must be connected to the connected to the outer terminals marked two right hand terminals marked “24-230V “24V out”...
- Page 19 Page 19 of 37...
-
Page 20: Ct Sensor Installation
CTs can be wired to any myenergi device with CT inputs (e.g. eddi, zappi or harvi). This allows for flexible installation as a CT can be wired to the nearest device. Ideally the grid CTs should be wired to the master device. - Page 21 The positioning of the Grid CT sensor is crucial, please take note of the following when deciding where best to install the sensor: The sensor can be connected to any myenergi device with a CT input e.g. the eddi, zappi (wired •...
- Page 22 CTs can also be used to limit the power drawn from the supply: Additional CTs can be connected to any myenergi device with a CT input that is linked to the network. • The arrow on the bottom of the sensor must be pointing in the direction of normal power flow (e.g.
- Page 23 • Phase 1). This helps to avoid phase shifting / phase misalignment. 8.3.8 CT Can do’s Can be wired to ANY myenergi device in the network. • harvi can be used to make ANY CT wireless • Cable can be extended up to 100m (must use twisted-pair cable e.g. one pair of CAT5).
-
Page 24: Fitting The Cover
Fitting the Cover Step 1: Step 2: Offer cover to the enclosure, ensuring all Add fascia to the enclosure cover of the cables are neatly secured inside the unit. zappi as shown. Take particular care that the ribbon cable is not •... -
Page 25: Advanced Installation Options
Load Balancing / Current Limiting / Load Curtailment CTs can also be used to limit the current drawn by myenergi devices to avoid overloading circuits; this is referred to as load balancing or load curtailment. There are four different ways to limit current and they can be used alone or combined for more complex situations. - Page 26 The CT should be clipped around the Live cable of the supply feeding the diverter. The arrow on the CT should be pointing away from the diverter (towards the consumer unit). Wire the CT to the nearest myenergi device or use a harvi if a wireless connection is needed.
-
Page 27: Built-In Protection
If zappi detects a problem with a welded contact, then the display will show RLY WELDED! If this happens and the fault cannot be reset by pressing the button for three seconds, then please contact myenergi technical support at support@myenergi.com Patent Reference GB3577354... - Page 28 8.6.5 Over-current If there is a problem with the equipment on the EV which charges the vehicle’s battery, too much current may be drawn from the supply. If this happens, zappi cannot control the charge rate as expected and it could lead to problems with overheating or tripping the main circuit breaker to the zappi.
-
Page 29: Set-Up
June 2022 there will be a different start up wizard displayed. See Smart Charge Points Regulations section at the front of this manual for further information. There are two likely scenarios here. Either this is your first myenergi device or you are adding this device to an existing myenergi home eco-system. -
Page 30: Testing
Testing Before leaving site, it is important that a few checks are carried out, ensuring the sensors have been correctly installed and are functional. Step 1: Check that the time and date are correct and are displayed on the bottom left of the main screen. If they are not present or are incorrect, set the correct time and date in the Other Settings/Time &... -
Page 31: Troubleshooting
10. Troubleshooting Symptom Cause Solution Display is blank There is no power to Check for correct supply voltage at the • • the unit supply screw terminals (220 - 260V AC) In ECO+ mode, the Grid Sensor Check the grid sensor is connected to a CT •... -
Page 32: Fault Codes
11. Fault Codes If any of the following fault messages are displayed, follow the action described. Displayed Message Description Action Unknown Cable ! zappi has detected an unknown zappi will automatically retest the EV cable (untethered units only) cable after 5 seconds. Make sure you are using genuine If the issue persists, unplug the IEC 62196-2 compliant plugs. -
Page 33: Warranty
If any of the above faults persist then stop using zappi and contact your supplier or myenergi Technical Support. 12. Warranty Full details of the myenergi product warranty are available on our web site or by using this QR code. https://myenergi.com/product/extended-warranty/ Product Registration Please register your new myenergi devices at https://myaccount.myenergi.com/registration... -
Page 34: Technical Specifications
14. Technical Specifications 14.1 Performance Mounting Location Indoor or Outdoor (permanent mounting) Charging Mode Mode 3 (IEC 61851-1 compliant communication protocol) Display Graphical backlit LCD Front LED Multicolour, according to charge status, current and user setting Charging Current 6A to 32A (variable) Dynamic Load Balancing Optional setting to limit current drawn from the unit supply or the grid Charging Profile... - Page 35 Radio Frequency Range 868-870MHz Radio Frequency (Australia) 915MHz 14.5 Max Transmitted Power Radio 25mW WiFi 100mW 15. Model Variants Model No. Rating Connector Colour Untethered White ZAPPI-2H07UW Tethered White ZAPPI-2H07TW Untethered Black ZAPPI-2H07UB Tethered Black ZAPPI-2H07TB 22kW (3-Phase) Untethered White ZAPPI-2H22UW...
- Page 36 Please contact us directly for the quickest solution. 17. Declaration of Conformity Hereby, myenergi declares that the radio equipment type zappi eco-smart EV charge point is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following by scanning the QR code below.
- Page 37 Designed and manufactured in the UK by myenergi Ltd, Pioneer Business Park, Faraday Way, Stallingborough, Grimsby, DN41 8FF T: +44 (0)333 300 1303 E: sales@myenergi.com W: myenergi.com Page 37 of 37...
