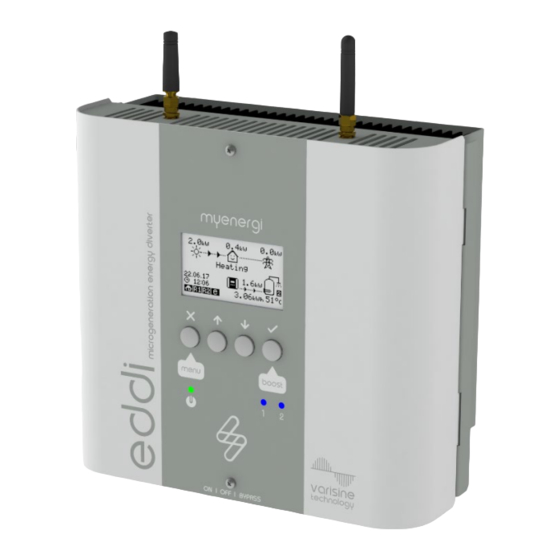

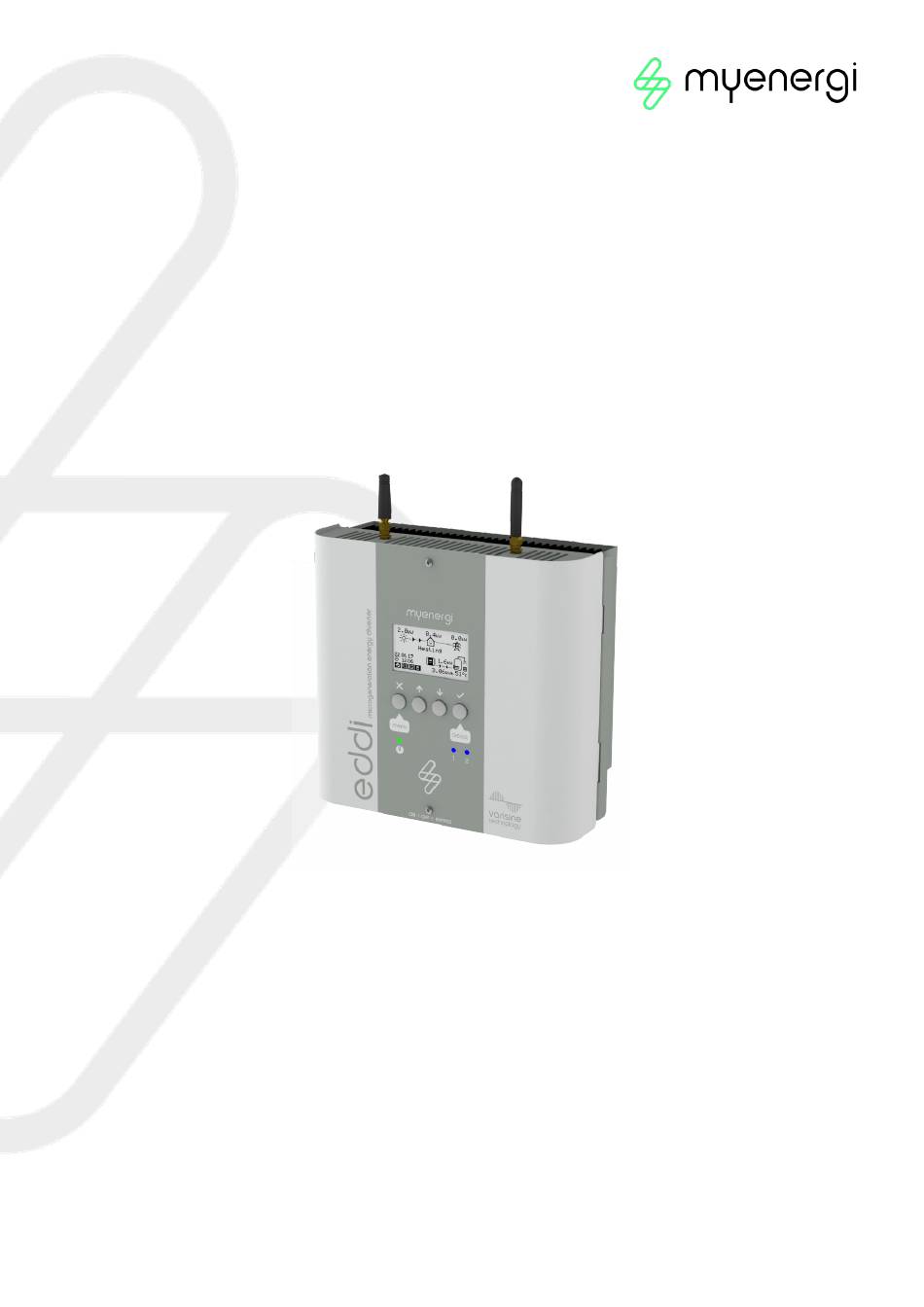

- Page 1 eddi microgeneration energy diverter Installation Manual MODELS: 16A1P01H Rev 2.0.2 DRAFT June 2022 – ENGLISH D3201...
-
Page 2: Table Of Contents
Contents Introduction ....................................3 Safety ......................................3 Disposal ......................................3 Copyright ..................................... 3 Overview ....................................... 4 Overview Diagram................................4 Box Contents....................................6 Optional: Relay & Sensor Board ............................6 Connectivity ....................................6 Wireless Connection ............................... 6 Ethernet or WiFi Connections ............................. 7 Installation .................................... -
Page 3: Introduction
We are grateful for any suggestions for improvement and notices of errors in the operating instructions. myenergi zappi, myenergi eddi and myenergi harvi are registered trademarks of myenergi Ltd. Page 3 of 36... -
Page 4: Overview
Overview Diagram The diagram on the next page shows the eddi as part of a complete energy management system. Other myenergi products are shown with details of how they integrate with the grid connection and the microgeneration system. Page 4 of 36... - Page 5 Page 5 of 36...
-
Page 6: Box Contents
If you have any concerns about the wireless performance then we would be pleased to answer your questions, but please consider that if a WiFi signal works OK then there is a very high probability that the myenergi devices will also work without any issues. -
Page 7: Ethernet Or Wifi Connections
All myenergi internet capable devices should be connected to the internet via either WiFi or a hardwired Ethernet connection. This version of the eddi can also act as the “gateway” or “hub” between all your myenergi devices and the myenergi server. The gateway device MUST be connected to the internet. -
Page 8: Installation
8. Installation Mounting NOTE eddi is NOT suitable for installation outdoors Ensure the device always has adequate ventilation; do not block the vents or obstruct airflow at the back of the unit. eddi must be fixed to a flat vertical surface using the dedicated mounting bracket which comes attached to the unit. -
Page 9: Wiring
Wiring WARNING! ELECTRIC SHOCK – An electric shock can be fatal; electrical connection work may only be carried out by a competent person. The earth conductor must be correctly installed and reliably connected. This device must be equipped with an over-current protection device of maximum 16 Amps (B16). Only purely resistive loads must be connected to the Heater output terminals. - Page 10 Page 10 of 36...
-
Page 11: Ct Sensor Installation
CT can be wired to the nearest device. Note: The harvi device can be used if it is not practical to connect any CT to the eddi. NOTE If a myenergi zappi EV Charger is configured it is not G100 compliant to use a harvi to measure grid CT. 8.4.1 Grid CT The Grid CT sensor (supplied) needs to be clipped around either the Live or Neutral meter tail of the electricity supply meter. - Page 12 Refer to the harvi installation guide for details on installing and configuring harvi for your system. NOTE If a myenergi zappi EV Charger is configured it is not G100 compliant to use a harvi to measure grid CT. 8.4.5 CT Golden Rules – Grid CT Only ONE Grid CT per phase (check for only one ~ symbol in Linked Devices Info).
-
Page 13: Advanced Installation Options
Load Balancing/Current Limiting/Load Curtailment CTs can also be used to limit the current drawn by myenergi devices to avoid overloading circuits; this is referred to as load balancing or load curtailment. There are four different ways to limit current and they can be used alone or combined for more complex situations. - Page 14 The CT should be clipped around the Live cable of the supply feeding the diverter. The arrow on the CT should be pointing away from the diverter. Wire the CT to the nearest myenergi device or use a harvi unit if wireless connection is needed.
-
Page 15: Relay & Sensor Board
Relay & Sensor Board eddi has the option to install a Relay & Sensor Board (available separately). This allows for many different wiring configurations and includes the following features: Two independent multifunction relays (16 Amp) eSense input (isolated 230V detection for economy tariff etc.) Two temperature sensor inputs (PT1000) The two relays can be independently set for several different functions, or they can be set to operate as a pair. -
Page 16: Fitting The Cover
Step 3: After the eddi starts-up for the first time, there will be a start-up wizard. There are two likely scenarios here. Either this is your first myenergi device or you are adding this device to an existing myenergi home eco-system. -
Page 17: Testing
If eddi has been installed alongside other eddi units or another myenergi device, refer to Linking Devices for guidance on pairing devices. Also refer to the instruction documentation for the other devices NOTE –... -
Page 18: Application Examples
A good level of electrical competence and a reasonable understanding of domestic plumbing systems is assumed for studying these application examples. IF IN DOUBT… Contact myenergi Technical Support – support@myenergi.uk 10.1 Dual Element Water Heater 10.1.1... - Page 19 10.1.2 Functional Description Electric only households tend to have a hot water cylinder with two immersion heaters, this is perfect for eddi as it can support heating two heaters sequentially. Heater 1 (the top immersion heater) (4) is heated with surplus power until the water at the top of the cylinder is hot and the thermostat opens, then eddi will immediately switch over to Heater 2 (6);...
-
Page 20: Economy Tariff With Dual Rate Meter
10.2 Economy Tariff with Dual Rate Meter 10.2.1 Key for Wiring Diagram 3 eddi device Mains supply (230V AC from B16 circuit breaker or 13A fused spur) Hot water cylinder Heating element 1 (max. 3.7kW) Isolator (20A double pole) Relay & Sensor Board (optional add-on for eddi) Temperature probe (type PT1000) (optional) Economy rate electric sense wiring (live only when economy rate is available) Heating element 2 (max.3.7kW) - Page 21 10.2.2 Functional Description It is common for electric only households to employ dual tariff billing. This application enables automatic heating of water when the economy tariff is available whilst also using any surplus generated power to heat the water. The economy rate electricity can be time based or random, in either case, eddi can be set to heat the water at the economy rate whenever possible, or at the economy rate only during certain times.
-
Page 22: Economy Tariff With Separate Meters
10.3 Economy Tariff with Separate Meters 10.3.1 Key for Wiring Diagram 4 eddi device Mains supply (24hr) (230V AC from B16 circuit breaker or 13A fused spur) Hot water cylinder Heating element 1 (max. 3.7kW) Isolator (20A double pole) Relay & Sensor Board (optional add-on for eddi) Temperature probe (type PT1000) (optional) Mains supply (off-peak timed) (230V AC from B16 circuit breaker or 13A fused spur) Heating element 2 (max. - Page 23 10.3.2 Functional Description Some electric only households that employ dual tariff billing use two separate electricity meters; one is live for 24 hours and the other is off-peak timed and bills at the economy rate. Only some appliances are connected to the off-peak supply (usually water heaters and storage heaters).
-
Page 24: Underfloor Heating Mat And Water Heating
10.4 Underfloor Heating Mat and Water Heating 10.4.1 Key for Wiring Diagram 7 eddi device Mains supply (230V AC from B16 circuit breaker or 13A fused spur) Hot water cylinder Water heating element (max. 3.7kW) Isolator (20A double pole) Relay & Sensor Board (optional add-on for eddi) Temperature probe (type PT1000) (optional) Mains supply for underfloor heating controller Underfloor heating mat (max. - Page 25 10.4.2 Functional Description As well as water heating, eddi can be used with electric underfloor heating mats. In this application the water is heated as priority and when fully heated, the surplus power is instead diverted to the underfloor heating mat. Heater 1 (the immersion heater in the hot water cylinder) is heated with surplus power until the water is hot and the thermostat opens, then eddi will immediately switch over to Heater 2 (the underfloor heating mat) (9) and continue diverting the surplus power.
-
Page 26: Water Heater With Auxiliary Boiler Control - S Plan
10.5 Water Heater with Auxiliary Boiler Control – S Plan 10.5.1 Key for Wiring Diagram 10 eddi device Mains supply (230V AC from B16 circuit breaker or 13A fused spur) Hot water cylinder Heating element (max. 3.7kW) Isolator (20A double pole) Relay &... - Page 27 10.5.2 Functional Description As eddi is predominately a water heating control device, it can be used to manage all of the water heating, even if an auxiliary heat source is used to heat the water. With this application the homeowner will be able to program auxiliary boiler boost times with eddi.
-
Page 28: Heat Pump With Water Heating And Buffer Tank
10.6 Heat Pump with Water Heating and Buffer Tank 10.6.1 Key for Wiring Diagram 12 eddi device Mains supply (230V AC from B16 circuit breaker or 13A fused spur) Hot water cylinder Heating element 1 (max. 3.7kW) Isolator (20A double pole) Relay &... - Page 29 10.6.2 Functional Description Some heat pump heating systems have a buffer tank for the heating circuit as well as a hot water cylinder. eddi can be used to make good use of any surplus generation by fully heating the water first and then heating the buffer, allowing the maximum amount of surplus energy to be stored.
-
Page 30: Heat Pump With Water Heating And Priority Control
10.7 Heat Pump with Water Heating and Priority Control 10.7.1 Key for Wiring Diagram 13 eddi device Mains supply (230V AC from B16 circuit breaker or 13A fused spur) Hot water cylinder Heating element (max. 3.7kW) Isolator (20A double pole) Relay &... - Page 31 10.7.2 Functional Description In this application the water is heated by eddi with the immersion heater when there is a relativity small amount of surplus power (e.g. < 1kW). But when there is enough surplus the heat pump is used to heat the water instead.
-
Page 32: Pool And Water Heating
10.8 Pool and Water Heating Key for Wiring Diagram 14 eddi device Mains supply (230V AC from B16 circuit breaker or 13A fused spur) Hot water cylinder Water heating element (max. 3.7kW) Isolator (20A double pole) Relay & Sensor Board (optional add-on for eddi) Temperature probe (type PT1000) (optional) Swimming pool In-line electric pool heater (max. - Page 33 10.8.1 Functional Description In properties that benefit from a swimming pool, eddi can be used to maximise self-consumption of surplus power, by first heating the domestic water before switching to divert the surplus power to contribute to pool heating. Heater 1 (the immersion heater in the hot water cylinder) (4) is heated with surplus power until the domestic water is hot and the thermostat opens, then eddi will immediately switch over to Heater 2 to heat the pool (8) with surplus power.
-
Page 34: Fault Codes
11 Fault Codes Fault Displayed Description Check Code Message Output Load is drawing too much Check the power rating of connected heaters, the maximum Overload! current (>16A) rating is 3.7kW for each heater output. Overheat! The device is too hot Check ventilation slots are not blocked and the unit has sufficient space around it. -
Page 35: Technical Support
Please contact us directly for the quickest solution. 13 Declaration of Conformity Hereby, myenergi declares that the radio equipment type eddi microgeneration energy diverter is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available by scanning the QR code below. - Page 36 This is your unique product identification. myenergi Designed and manufactured in the UK by myenergi Ltd, Pioneer Business Park, Faraday way, Stallingborough, Grimsby, DN41 8FF T: +44 (0)333 300 1303 E: sales@myenergi.com W: myenergi.com Page 36 of 36...
